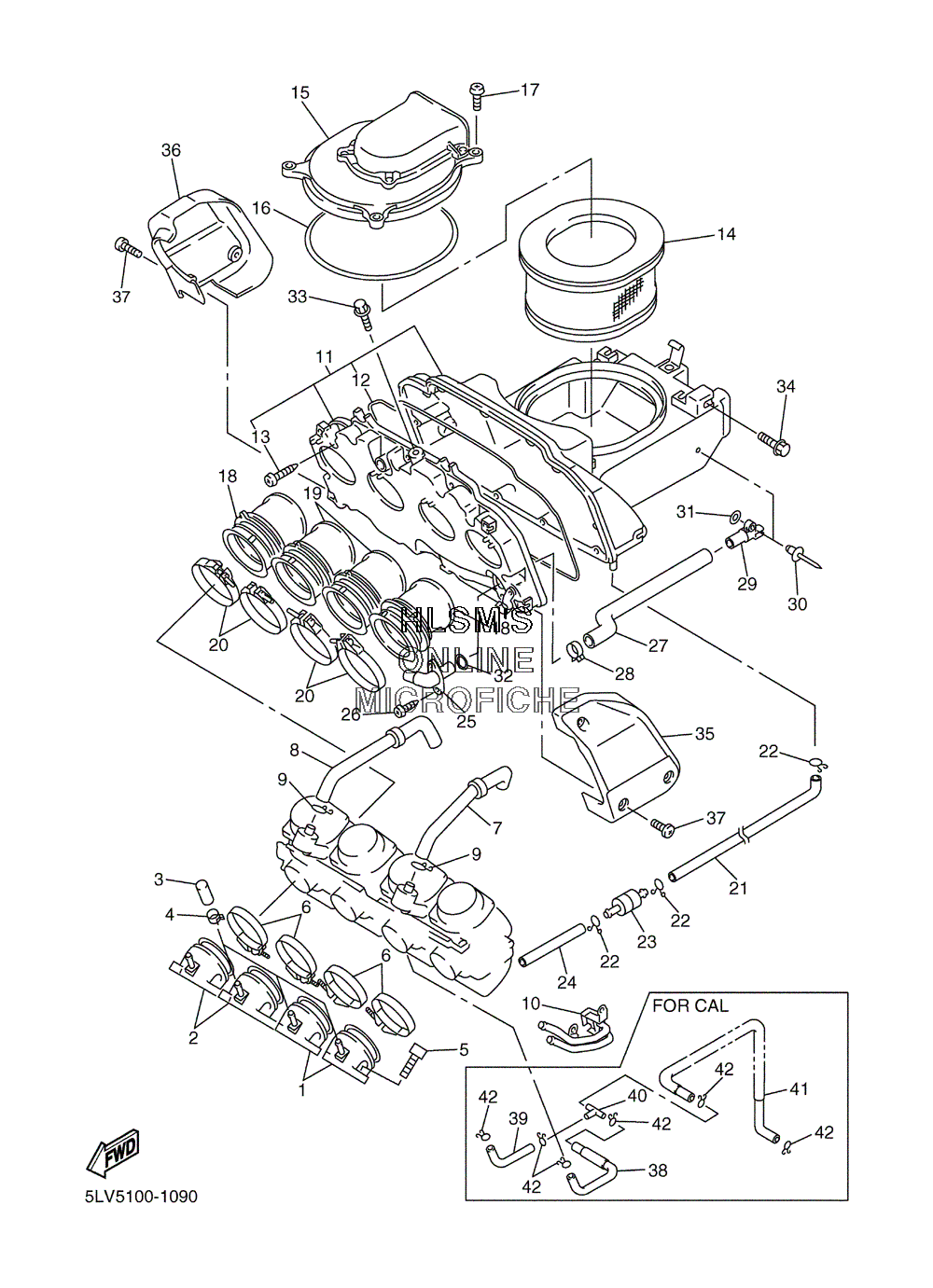

AIR CLEANER W/ INTAKE для Yamaha FZ1 CALIFORNIA - 2002 года выпуска`
-
№АртикулНазвание
-
15LV-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
25LV-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
316G-13569-00-00 PLUG, BLINDPLUG, BLIND
-
490467-10039-00 CLIPCLIP
-
591317-06020-00 BOLTBOLT
-
65LV-13474-00-00 BANDBAND
-
75LV-13895-00-00 HOSE, AIRHOSE, AIR
-
85LV-13892-00-00 HOSE, AIR 2HOSE, AIR 2
-
990467-14015-00 CLIPCLIP
-
105LV-14197-00-00 PIPEPIPE
-
115LV-14401-00-00 AIR CLEANER CASE ASSYAIR CLEANER CASE ASSY
-
121VJ-14462-00-00 ......SEAL......SEAL
-
1397707-50130-00 ...SCREW, TAPPING...SCREW, TAPPING
-
145LV-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
155LV-14402-00-00 CAP ASSY, AIR CLEANERCAP ASSY, AIR CLEANER
-
164XY-14452-00-00 SEALSEAL
-
1798517-06020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
185LV-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
195LV-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
2090450-63096-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
215LV-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2290467-10008-00 CLIPCLIP
-
234X7-2149Y-00-00 FILTER ASSYFILTER ASSY
-
2490445-11293-00 HOSE (L150)HOSE (L150)
-
255LV-14485-00-00 PIPE, JOINTPIPE, JOINT
-
2697707-50620-00 SCREW, TAPPINGSCREW, TAPPING
-
275LV-13926-00-00 HOSEHOSE
-
2890468-08104-00 CLIPCLIP
-
295LV-14419-00-00 PIPEPIPE
-
3090267-40029-00 RIVET, BLINDRIVET, BLIND
-
3192907-04600-00 WASHERWASHER
-
3293210-13361-00 O-RINGO-RING
-
3395817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3495817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
355LV-14417-00-00 COVER 1COVER 1
-
365LV-14418-00-00 COVER 2COVER 2
-
3790154-06005-00 SCREW, BINDINGSCREW, BINDING
-
385LV-14465-00-00 PIPEPIPE
-
395LV-14466-00-00 PIPEPIPE
-
403H3-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
415LV-1443J-00-00 PIPEPIPE
-
4290467-10008-00 CLIPCLIP
