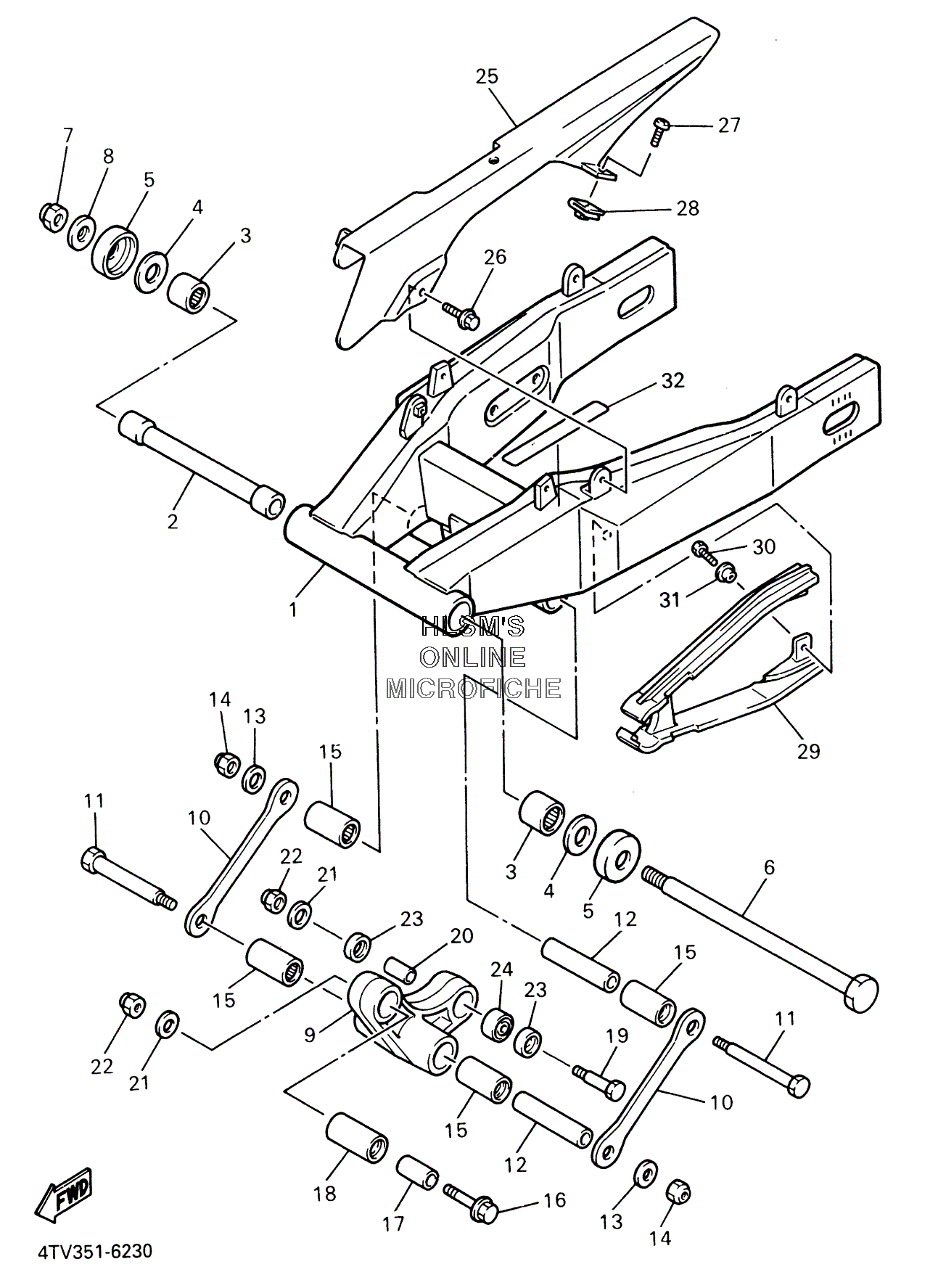

SUSPENSION - REAR ARM для Yamaha YZF 600 R CALIFORNIA - 2001 года выпуска`
-
№АртикулНазвание
-
14JH-22110-00-35 REAR ARM COMP. (SILVER (SL))REAR ARM COMP. (SILVER (SL))
-
247X-22184-00-00 BUSHBUSH
-
393320-32403-00 BEARINGBEARING
-
490201-161J3-00 WASHER, PLATEWASHER, PLATE
-
54X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
61UY-22141-01-00 SHAFT, PIVOTSHAFT, PIVOT
-
790185-16127-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890201-160F6-00 WASHER, PLATEWASHER, PLATE
-
94TV-2217A-00-00 ARM, RELAYARM, RELAY
-
103GM-2217M-00-00 ARM 1ARM 1
-
1190101-12673-00 BOLTBOLT
-
1290387-126T1-00 COLLARCOLLAR
-
1390201-126A7-00 WASHER, PLATEWASHER, PLATE
-
1495617-12100-00 NUT, UNUT, U
-
1593317-41761-00 BEARINGBEARING
-
1690105-10727-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1790387-100T8-00 COLLARCOLLAR
-
1893317-42060-00 BEARINGBEARING
-
1990101-10659-00 BOLTBOLT
-
2090387-127W0-00 COLLARCOLLAR
-
2190201-101J1-00 WASHER, PLATEWASHER, PLATE
-
2295617-10100-00 NUT, UNUT, U
-
2393109-17071-00 OIL SEALOIL SEAL
-
2493317-31771-00 BEARINGBEARING
-
254JH-22311-00-00 CASE, CHAINCASE, CHAIN
-
2697017-06012-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2890183-05024-00 NUT, SPRINGNUT, SPRING
-
294JH-22151-00-00 SEAL, GUARDSEAL, GUARD
-
3097017-06014-00 BOLTBOLT
-
3190387-062M9-00 COLLARCOLLAR
-
323TU-28344-00-00 TAPETAPE
