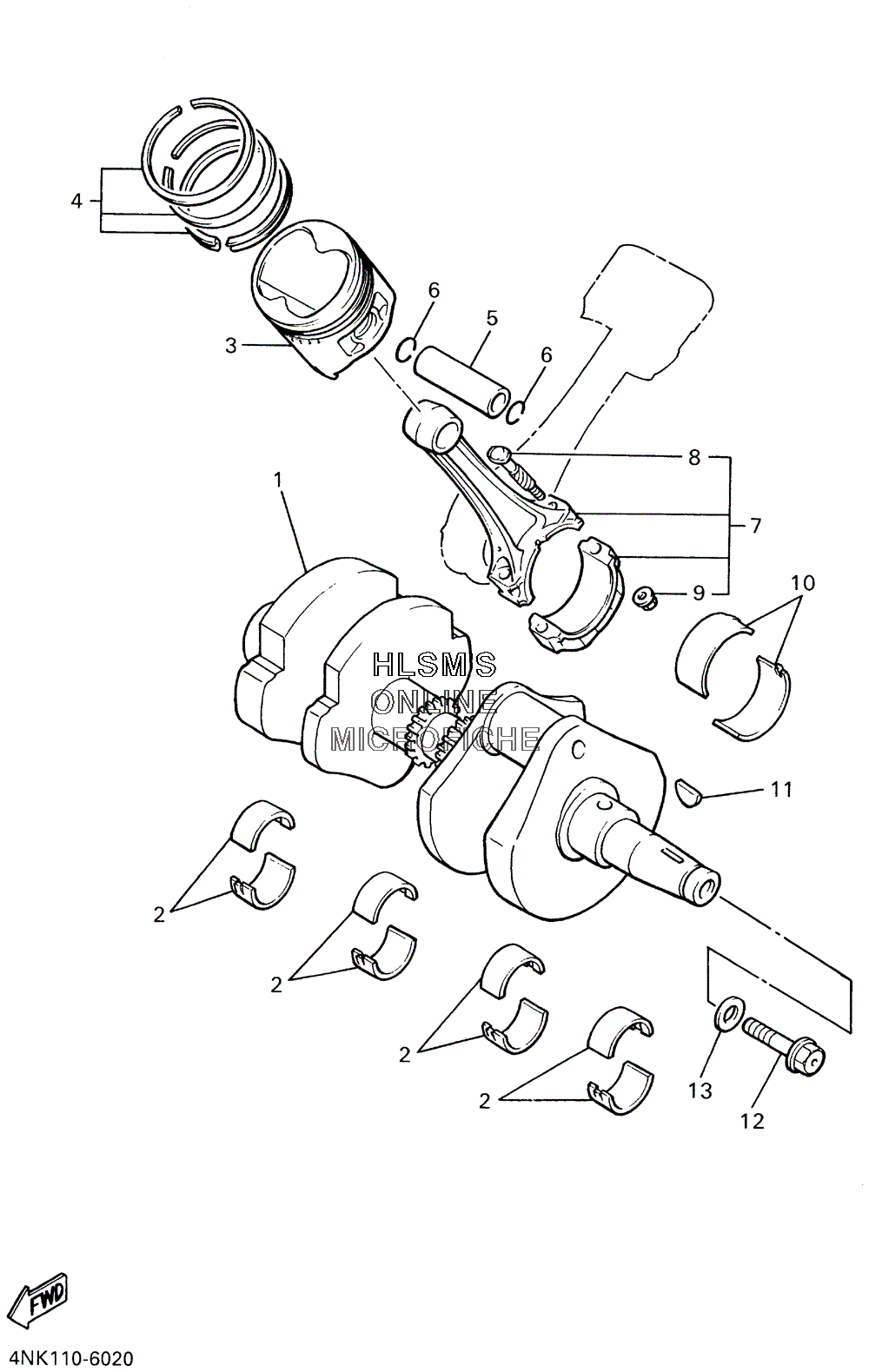

CRANKSHAFT - PISTON для Yamaha XVZ 1300 AN ROYAL STAR BOULEVARD - 2001 года выпуска
-
№АртикулНазвание
-
14NK-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
21FK-11416-01-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
-
21FK-11416-11-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
-
21FK-11416-21-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
-
21FK-11416-31-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
-
21FK-11416-41-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
-
21FK-11416-51-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)
-
21FK-11416-61-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)
-
34NK-11635-00-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
34NK-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
34XY-11631-00-A0 PISTON (STD)PISTON (STD)
-
41NL-11610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
41NL-11610-10-00 PISTON RING SET (0.25MM O/S) (OPT)PISTON RING SET (0.25MM O/S) (OPT)
-
41NL-11610-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
51FK-11633-00-00 PIN, PISTONPIN, PISTON
-
693450-19095-00 CIRCLIPCIRCLIP
-
726H-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
826H-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
990179-08327-00 ...NUT...NUT
-
101FK-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
-
101FK-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
101FK-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
101FK-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
101FK-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)
-
101FK-11656-50-00 PLANE BEARING, CONNECTING ROD (OPT) (PINK)PLANE BEARING, CONNECTING ROD (OPT) (PINK)
-
1190280-05029-00 KEY, WOODRUFFKEY, WOODRUFF
-
1290105-12584-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1390201-121H0-00 WASHER, PLATEWASHER, PLATE
