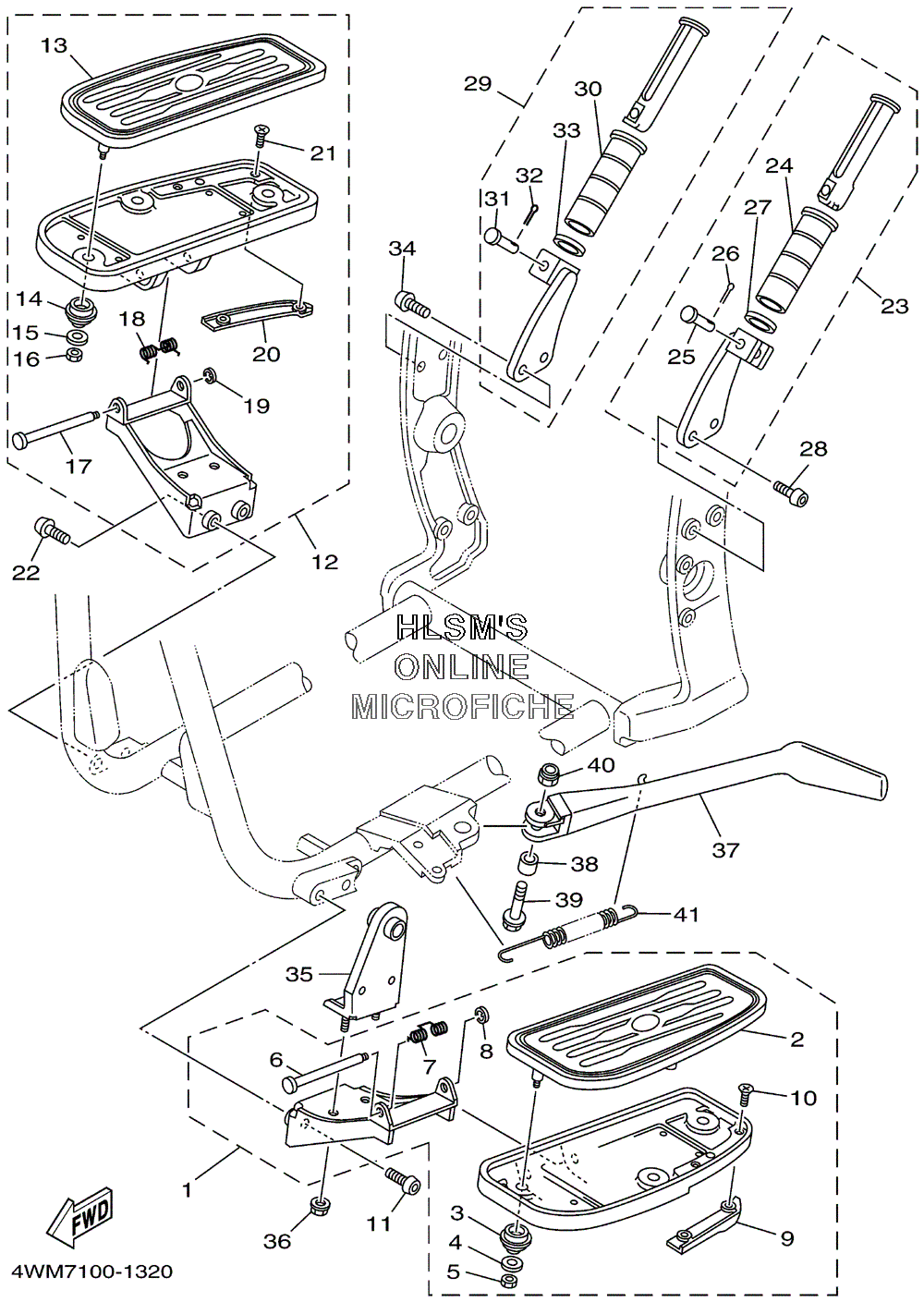

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha XV 1600 AT ROAD STAR SILVERDOROAD CALIFORNIA - 2001 года выпуска`
-
№АртикулНазвание
-
14WM-27410-10-00 FRONT FOOTREST ASSY (LEFT)FRONT FOOTREST ASSY (LEFT)
-
24WM-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
34WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
490201-05033-00 ...WASHER, PLATE...WASHER, PLATE
-
595607-05100-00 ...NUT, U...NUT, U
-
64NK-27427-00-00 ...SHAFT...SHAFT
-
74NK-27426-00-00 ...SPRING, RETURN...SPRING, RETURN
-
899001-06600-00 ...CIRCLIP...CIRCLIP
-
94WM-27496-00-00 ...MOLE 1...MOLE 1
-
1090152-05008-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
1192017-10030-00 BOLTBOLT
-
124WM-27420-10-00 FRONT FOOTREST ASSY (RIGHT)FRONT FOOTREST ASSY (RIGHT)
-
134WM-27423-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
144WM-27414-00-00 ...DAMPER, FOOTREST...DAMPER, FOOTREST
-
1590201-05033-00 ...WASHER, PLATE...WASHER, PLATE
