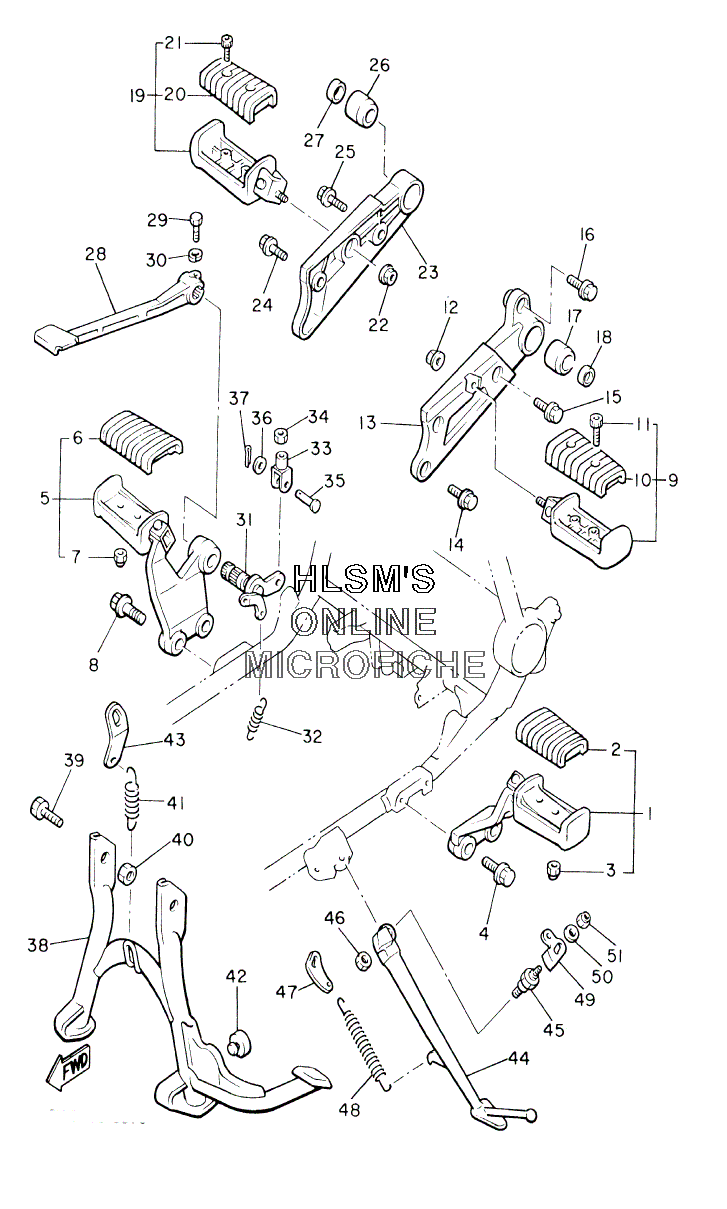

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha VMX 1200 V-MAX - 2001 года выпуска`
-
№АртикулНазвание
-
11UT-27410-10-00 FRONT FOOTREST ASSY. (LEFT)FRONT FOOTREST ASSY. (LEFT)
-
21NH-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
395607-06100-00 ...NUT, U...NUT, U
-
495024-10030-00 BOLT, FLANGEBOLT, FLANGE
-
51UT-27420-10-00 FRONT FOOTREST ASSY. (RIGHT)FRONT FOOTREST ASSY. (RIGHT)
-
61NH-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
795607-06100-00 ...NUT, U...NUT, U
-
895024-10030-00 BOLT, FLANGEBOLT, FLANGE
-
91UT-27430-01-00 REAR FOOTREST ASSY. 1REAR FOOTREST ASSY. 1
-
101NH-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
1198517-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1295707-10500-00 NUT, FLANGENUT, FLANGE
-
131FK-27442-00-00 BRACKET 2BRACKET 2
-
1495024-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1595024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-081A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1726H-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
1826H-2743E-00-00 STOPPERSTOPPER
-
191UT-27440-01-00 REAR FOOTREST ASSY. 2REAR FOOTREST ASSY. 2
-
201NH-27433-00-00 ...COVER, REAR FOOTREST...COVER, REAR FOOTREST
-
2198517-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2295707-10500-00 NUT, FLANGENUT, FLANGE
-
231FK-27443-00-00 BRACKET 3BRACKET 3
-
2495024-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2595024-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2626H-27414-00-00 DAMPER, FOOTRESTDAMPER, FOOTREST
-
2726H-2743E-00-00 STOPPERSTOPPER
-
281FK-27211-00-93 PEDAL, BRAKEPEDAL, BRAKE
-
2990109-06468-00 BOLTBOLT
-
3092903-06100-00 WASHER, SPRINGWASHER, SPRING
-
311FK-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
3290506-18305-00 SPRING, TENSIONSPRING, TENSION
-
3347X-27222-00-00 JOINTJOINT
-
3495307-08700-00 NUTNUT
-
3590240-08013-00 PIN, CLEVISPIN, CLEVIS
-
3690201-08083-00 WASHER, PLATEWASHER, PLATE
-
3791401-16012-00 PIN, COTTERPIN, COTTER
-
381UT-27111-01-R4 STAND, MAINSTAND, MAIN
-
3990109-10658-00 BOLTBOLT
-
4090185-10091-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190506-45222-00 SPRING, TENSIONSPRING, TENSION
-
42371-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
431FK-27115-00-00 LINK, MAIN STANDLINK, MAIN STAND
-
441FK-27311-00-R4 STAND, SIDESTAND, SIDE
-
4590109-107A2-00 BOLTBOLT
-
4690185-10037-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
471FK-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
4890507-29019-00 SPRING, TENSIONSPRING, TENSION
-
491FK-27352-00-00 HOOK, SIDE STANDHOOK, SIDE STAND
-
5090201-06380-00 WASHER, PLATEWASHER, PLATE
-
5195607-06100-00 NUT, UNUT, U
