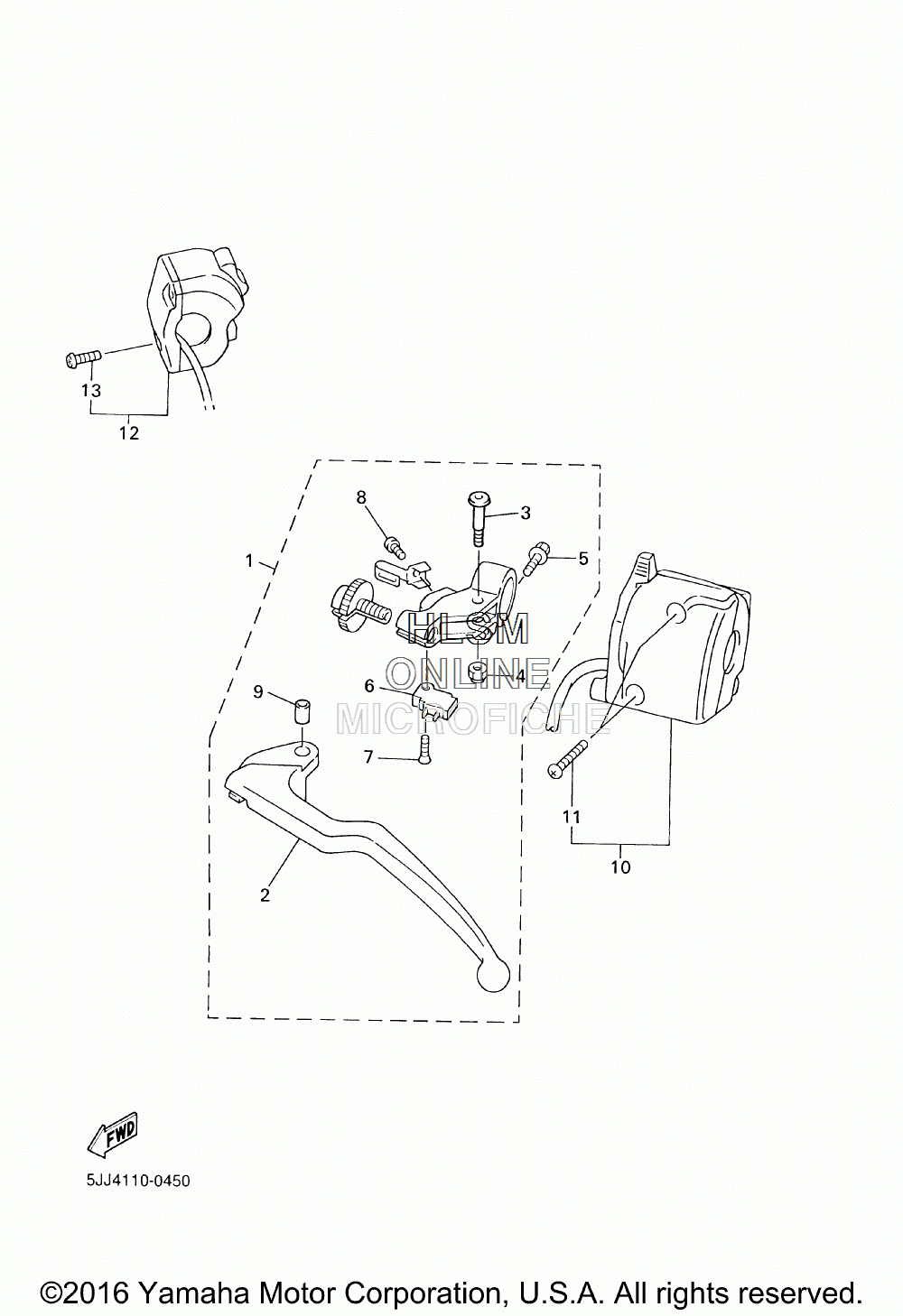

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha YZF-R1 [ YZFR1M/C] (5JJ4/5JJ5) - 2000 года выпуска`
![](/wa-data/public/shop/sheme/yamaha/streetbike/9c399395-9c69-4124-9793-ac5300d5ea1c.gif)
-
№АртикулНазвание
-
14XV-82910-11-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
24XV-83912-11-00 ...LEVER 1...LEVER 1
-
34XV-83945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
495607-06100-00 ...NUT, U...NUT, U
-
595027-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
64XV-82917-00-00 ...SWITCH...SWITCH
-
798707-03016-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
898507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
95JJ-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
105JJ-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
1198507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
124UN-83975-01-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
1398507-05022-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
