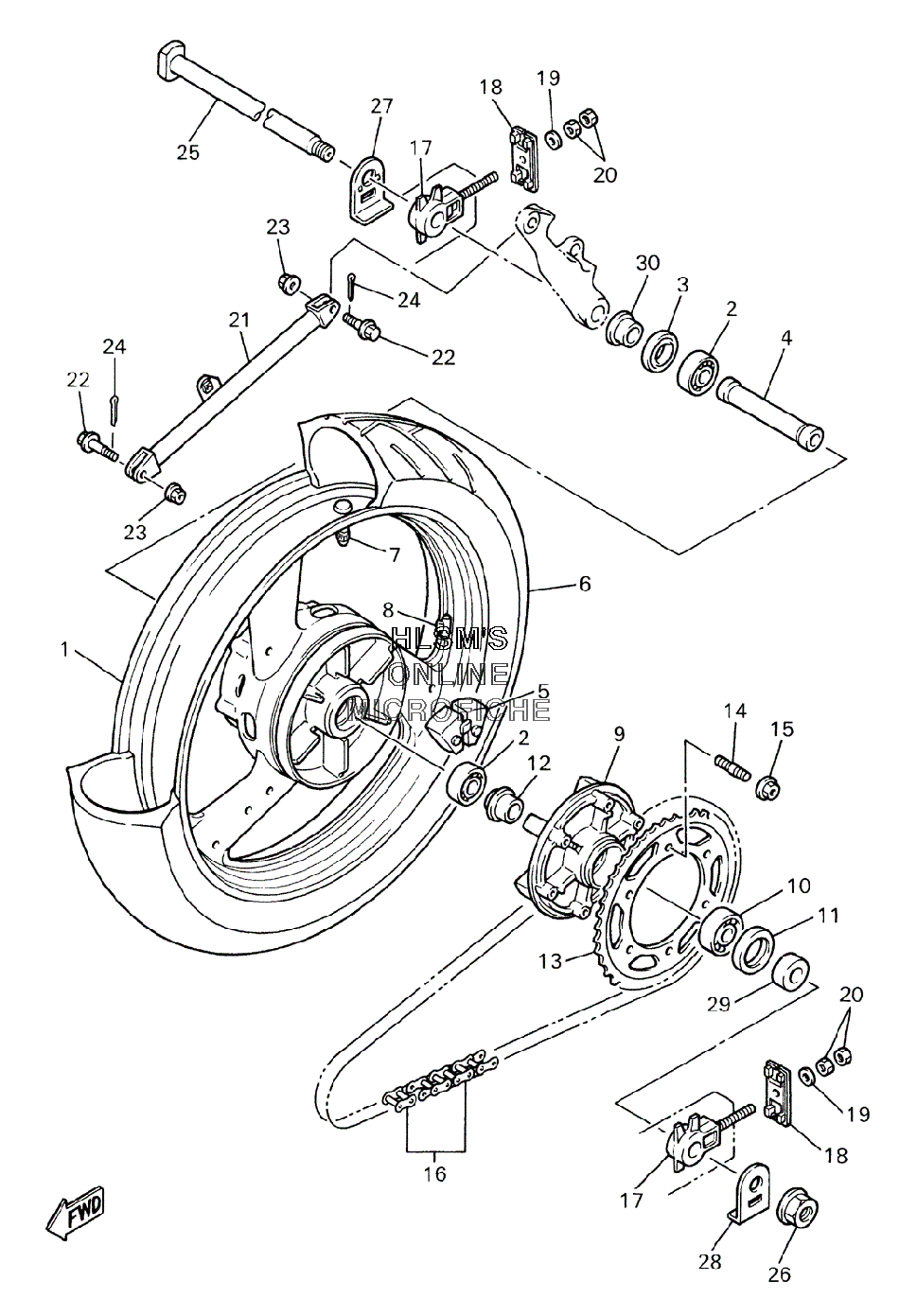

REAR WHEEL - REAR для Yamaha YZF 600 - 2000 года выпуска`
-
№АртикулНазвание
-
14JH-25338-00-7B CAST WHEEL, REARCAST WHEEL, REAR
-
293306-20417-00 BEARINGBEARING
-
393102-28022-00 OIL SEALOIL SEAL
-
490387-2004F-00 COLLARCOLLAR
-
54FM-25364-00-00 DAMPERDAMPER
-
694116-1711V-00 TIRE (160/60ZR17 BT57R) (BRIDGESTONE) (OPT)TIRE (160/60ZR17 BT57R) (BRIDGESTONE) (OPT)
-
793900-00030-00 VALVE, RIMVALVE, RIM
-
829L-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
829L-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
829L-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
94FM-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1093306-20644-00 BEARINGBEARING
-
1193102-40211-00 OIL SEALOIL SEAL
-
1290387-2004E-00 COLLARCOLLAR
-
134JH-25447-00-00 SPROCKET, DRIVEN (47 TEETH)SPROCKET, DRIVEN (47 TEETH)
-
1490116-10575-00 BOLT, STUDBOLT, STUD
-
1595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1694581-59108-00 CHAIN (DID50VA7-108LE)CHAIN (DID50VA7-108LE)
-
173XW-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
184JH-22174-00-00 END 1END 1
-
1992907-08600-00 WASHER, PLATEWASHER, PLATE
-
2095307-08600-00 NUTNUT
-
214JH-25371-01-00 BAR, TENSIONBAR, TENSION
-
2290105-08321-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2395707-08500-00 NUT, FLANGENUT, FLANGE
-
2491401-20012-00 PIN, COTTERPIN, COTTER
-
253GM-25381-A0-00 AXLE, WHEELAXLE, WHEEL
-
2695607-18200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
274JH-25384-03-00 WASHER, WHEELWASHER, WHEEL
-
284JH-25384-12-00 WASHER, WHEELWASHER, WHEEL
-
2990387-2004C-00 COLLARCOLLAR
-
3090387-2004D-00 COLLARCOLLAR
