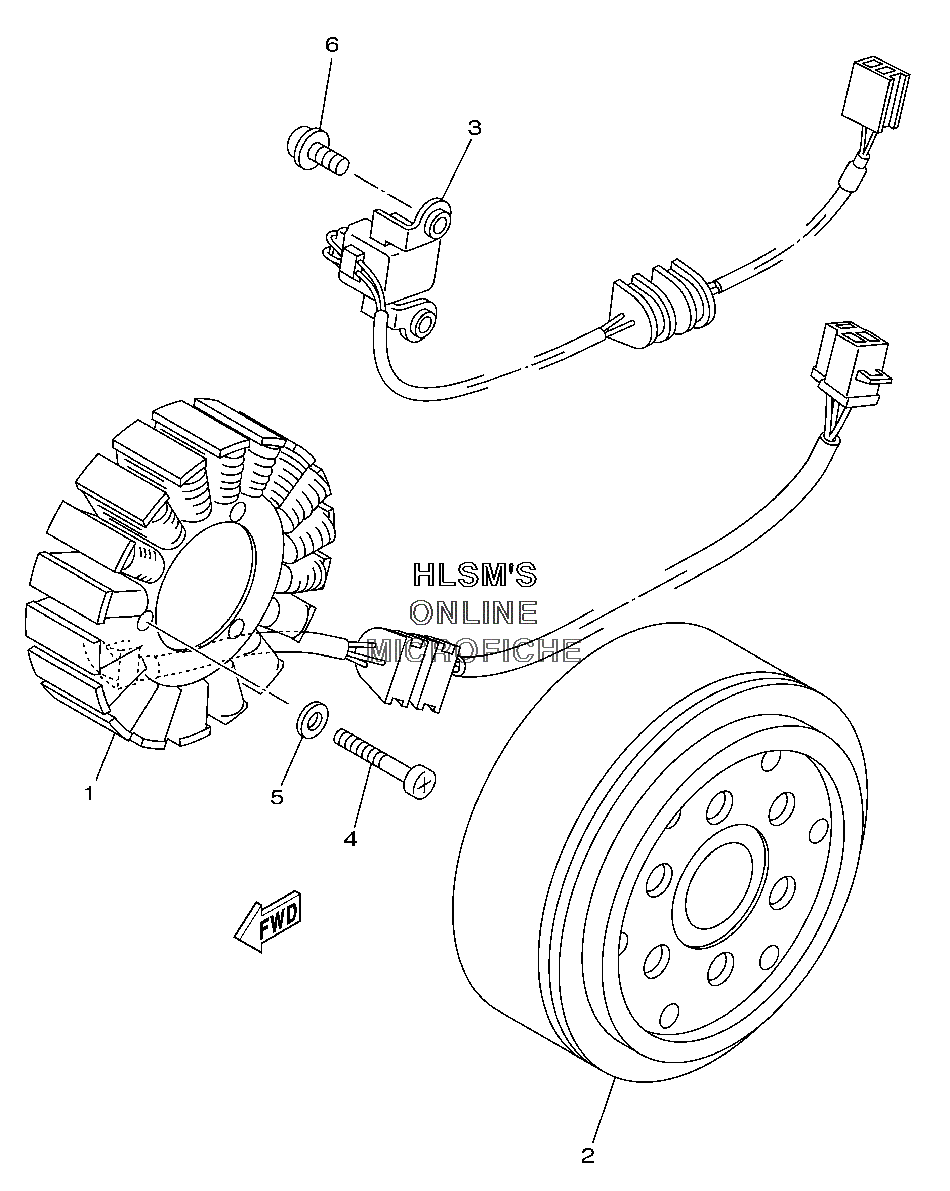

GENERATOR ASSY. для Yamaha XVZ 1600 AT ROAD STAR SILVERADO CALIFORNIA - 2000 года выпуска
-
№АртикулНазвание
-
14WM-81410-00-00 STATOR ASSYSTATOR ASSY
-
24WM-81450-00-00 ROTOR ASSYROTOR ASSY
-
34WM-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
498507-06035-00 SCREW, PAN HEADSCREW, PAN HEAD
-
592907-06600-00 WASHER, PLATEWASHER, PLATE
-
690159-06004-00 SCREW, WITH WASHERSCREW, WITH WASHER
