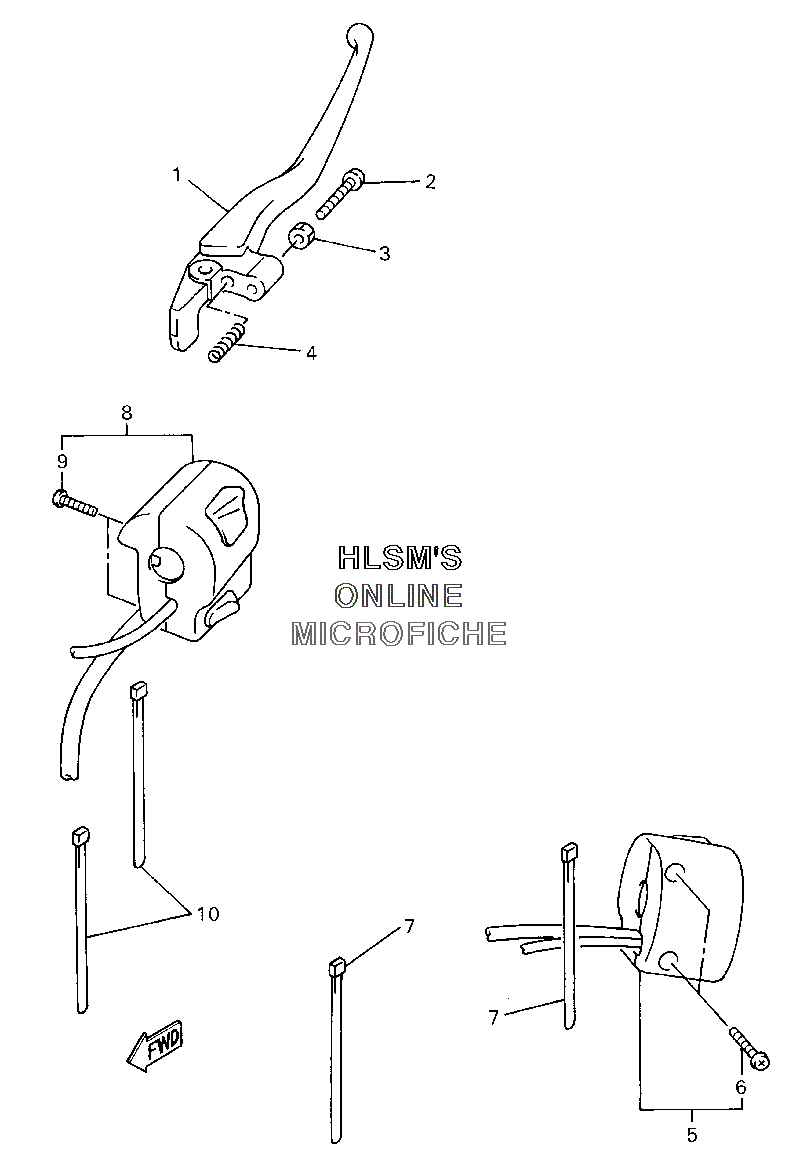

HANDLEBAR SWITCHES/LEVERS для Yamaha XVZ 1300 A ROYAL STAR - 2000 года выпуска
-
№АртикулНазвание
-
15EY-83922-00-00 LEVER 2LEVER 2
-
290149-06131-00 SCREWSCREW
-
390170-06010-00 NUTNUT
-
490501-10312-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
54NK-83973-10-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
698504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
71UA-82591-00-00 BANDBAND
-
84NK-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
998504-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
101UA-82591-00-00 BANDBAND
