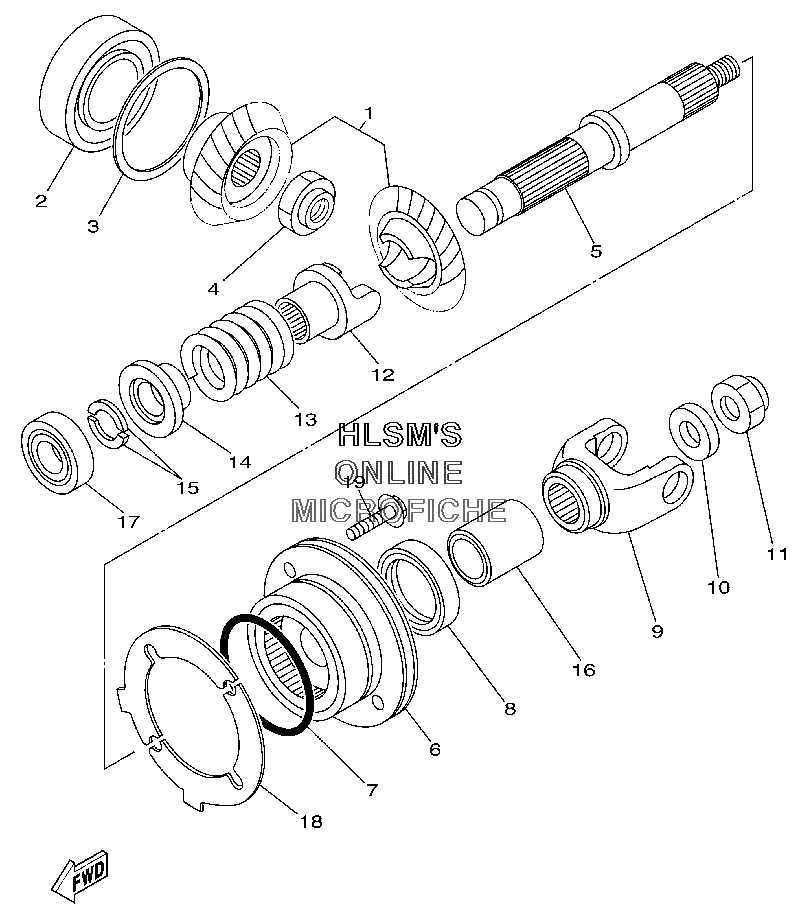

MIDDLE DRIVE GEAR для Yamaha XVS 650 V-STAR CUSTOM CALIFORNIA - 2000 года выпуска`

№

Артикул

Название
1

22U-Y1754-00-00 MIDDLE GEAR COMP.

MIDDLE GEAR COMP.

25 190 ₽
2

93306-20711-00 BEARING

BEARING

3 460 ₽
3

4H7-17537-00-20 SHIM, THRUST (0.20 THICKNESS) (OPT)

SHIM, THRUST (0.20 THICKNESS) (OPT)

440 ₽
3

4H7-17537-00-30 SHIM, THRUST (0.30 THICKNESS) (OPT)

SHIM, THRUST (0.30 THICKNESS) (OPT)

440 ₽
3

4H7-17537-00-40 SHIM, THRUST (0.40 THICKNESS) (OPT)

SHIM, THRUST (0.40 THICKNESS) (OPT)

440 ₽
4

90179-18396-00 NUT

NUT

840 ₽
5

4VR-17553-00-00 SHAFT, MIDDLE DRIVEN

SHAFT, MIDDLE DRIVEN

14 800 ₽
6

4VR-W1752-00-00 HOUSING COMP.

HOUSING COMP.

15 900 ₽
7

93210-71360-00 O-RING

O-RING

970 ₽
8

93101-35097-00 OIL SEAL

OIL SEAL

1 730 ₽
9

22U-17556-00-00 YOKE, JOINT

YOKE, JOINT

9 130 ₽
10

90201-14633-00 WASHER, PLATE

WASHER, PLATE

970 ₽
11

90185-14070-00 NUT, SELF-LOCKING

NUT, SELF-LOCKING

1 200 ₽
12

4VR-17527-00-00 CAM, DRIVEN

CAM, DRIVEN

8 340 ₽
13

90501-60716-00 SPRING, COMPRESSION

SPRING, COMPRESSION

1 880 ₽
14

22U-17524-00-00 HOLDER

HOLDER

1 880 ₽
15

3H5-17529-00-00 WASHER, THRUST

WASHER, THRUST

340 ₽
16

90387-2511R-00 COLLAR

COLLAR

3 300 ₽
17

93306-00401-00 BEARING

BEARING

1 580 ₽
18

3JB-17531-00-00 SHIM, PINION (0.10 THICKNESS) (OPT)

SHIM, PINION (0.10 THICKNESS) (OPT)

1 470 ₽
18

3JB-17531-10-00 SHIM, PINION (0.15 THICKNESS) (OPT)

SHIM, PINION (0.15 THICKNESS) (OPT)

720 ₽
18

3JB-17531-20-00 SHIM, PINION (0.20 THICKNESS) (OPT)

SHIM, PINION (0.20 THICKNESS) (OPT)

720 ₽
18

3JB-17531-30-00 SHIM, PINION (0.30 THICKNESS) (OPT)

SHIM, PINION (0.30 THICKNESS) (OPT)

720 ₽
18

3JB-17531-40-00 SHIM, PINION (0.40 THICKNESS) (OPT)

SHIM, PINION (0.40 THICKNESS) (OPT)

720 ₽
18

3JB-17531-50-00 SHIM, PINION (0.50 THICKNESS) (OPT)

SHIM, PINION (0.50 THICKNESS) (OPT)

720 ₽
19

95827-08035-00 BOLT, FLANGE

BOLT, FLANGE

380 ₽
