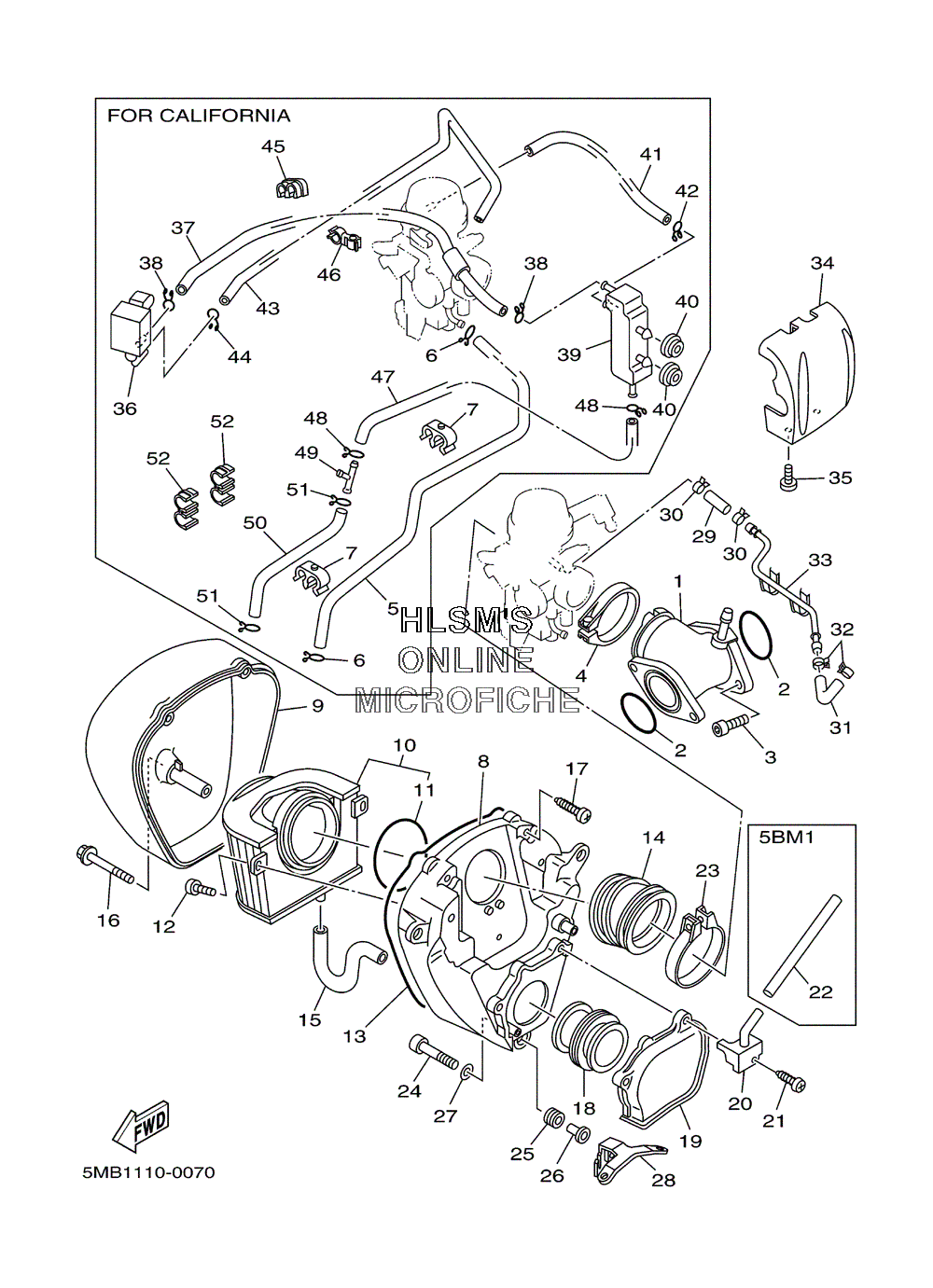

AIR CLEANER W/ INTAKE для Yamaha XV 1600 AS ROAD STAR MM LTD - 2000 года выпуска`
-
№АртикулНазвание
-
14WM-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-505A4-00 O-RINGO-RING
-
391317-06020-00 BOLTBOLT
-
490450-58001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
54WM-14423-00-00 PIPE, SUCTION 1 (CALIF ONLY)PIPE, SUCTION 1 (CALIF ONLY)
-
690467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
790464-11201-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
84WM-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
94WM-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
104WM-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1193210-77040-00 ...O-RING...O-RING
-
1298904-06014-00 SCREW, BINDSCREW, BIND
-
134WM-14452-00-00 SEALSEAL
-
144WM-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
154WM-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
1690149-06331-00 SCREWSCREW
-
1797707-60540-00 SCREW, TAPPINGSCREW, TAPPING
-
184WM-14437-00-00 DUCTDUCT
-
194WM-14417-00-00 COVER 1COVER 1
-
204WM-14413-00-00 STAYSTAY
-
2197707-50525-00 SCREW, TAPPINGSCREW, TAPPING
-
2290445-110G7-00 HOSE (EXCEPT CALIF)HOSE (EXCEPT CALIF)
-
2390450-67001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2490110-06240-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2590480-14023-00 GROMMETGROMMET
-
2690387-07391-00 COLLARCOLLAR
-
2790209-06250-00 WASHERWASHER
-
284WM-14498-00-00 STAY 1STAY 1
-
2990445-146K8-00 HOSEHOSE
-
3090467-13083-00 CLIPCLIP
-
314WM-14294-00-00 HOSEHOSE
-
3290467-13083-00 CLIPCLIP
-
334WM-14295-00-00 PIPE, FUELPIPE, FUEL
-
344WM-13993-00-00 COVER, CONTROL RACKCOVER, CONTROL RACK
-
3598504-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
364WM-14896-00-00 VALVE, OUTER VENT CONTROL 2 (CALIF ONLY)VALVE, OUTER VENT CONTROL 2 (CALIF ONLY)
-
374WM-24325-01-00 PIPE 14 (CALIF ONLY)PIPE 14 (CALIF ONLY)
-
3890467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
394WM-1446E-00-00 TANK, SURGE (CALIF ONLY)TANK, SURGE (CALIF ONLY)
-
4090480-13567-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
414WM-14349-01-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
4290467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
434WM-14348-00-00 PIPE 1 (CALIF ONLY)PIPE 1 (CALIF ONLY)
-
4490467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
4590464-12224-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
4690464-11001-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
474WM-14196-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
4890467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
4990413-07007-00 WAY 3 (CALIF ONLY)WAY 3 (CALIF ONLY)
-
504WM-14193-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
5190467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
5290464-12224-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
