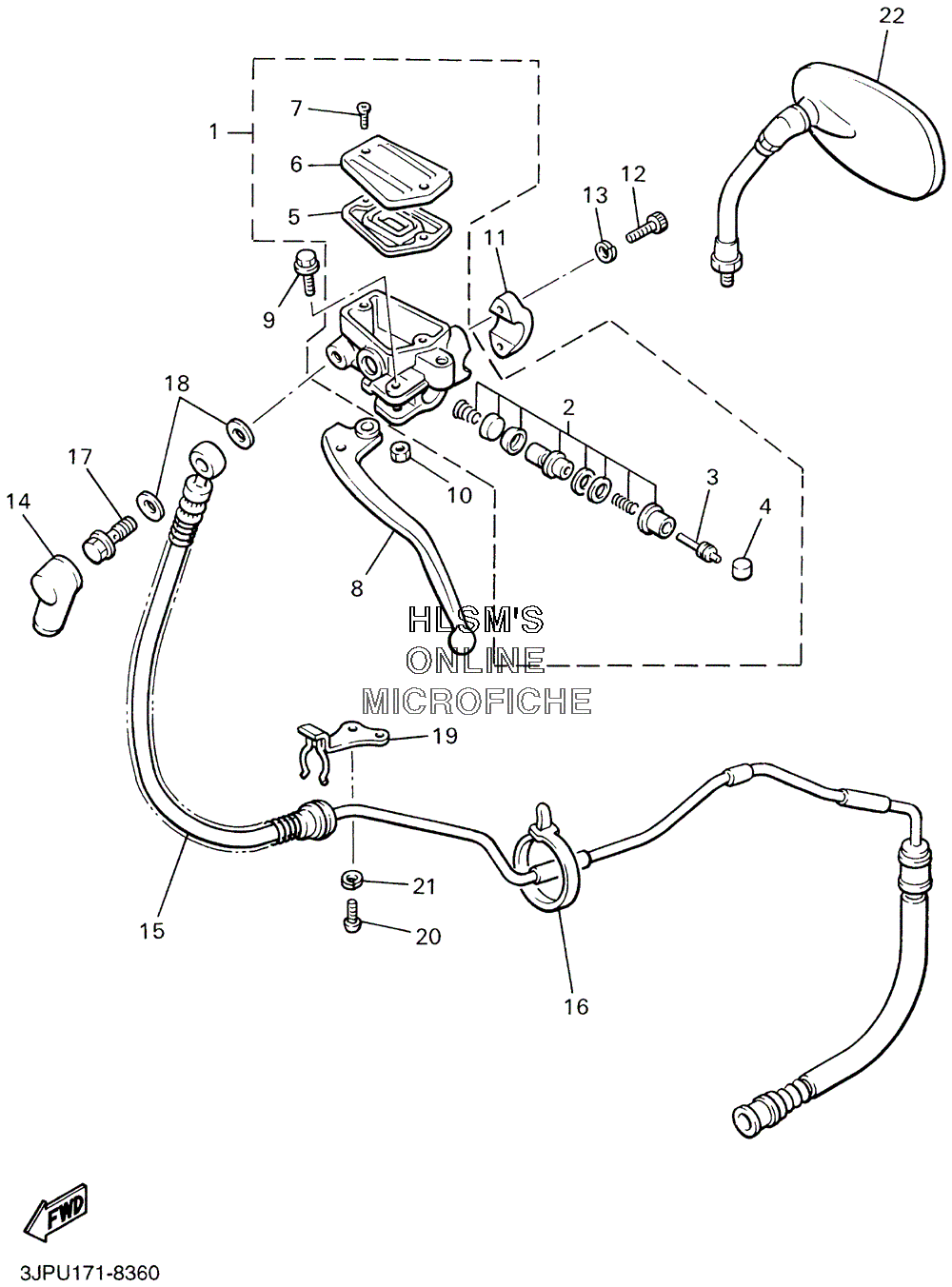

CLUTCH MASTER CYLINDER W/ MIRROR для Yamaha VMX 1200 V-MAX CALIFORNIA - 2000 года выпуска`
-
№АртикулНазвание
-
12KW-W2645-00-00 MASTER CYL SUB ASSYMASTER CYL SUB ASSY
-
22KW-W0099-00-00 ...CYL KIT, MASTER (CLUTCH)...CYL KIT, MASTER (CLUTCH)
-
326H-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
43GM-26455-00-00 ...BUSH...BUSH
-
51AE-26454-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
61FK-26452-01-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
798706-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
81FK-83912-01-00 LEVER 1LEVER 1
-
91FK-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1095606-06100-00 NUT, UNUT, U
-
111AE-26467-01-00 HOLDERHOLDER
-
1290110-06240-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
144L0-25862-01-00 BOOT, MASTER CYLBOOT, MASTER CYL
-
151FK-26470-01-00 HOSE, CLUTCHHOSE, CLUTCH
-
161UA-82591-00-00 BANDBAND
-
1790401-10159-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
-
191FK-26475-00-00 HOLDERHOLDER
-
2098507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
221AA-26280-02-00 REAR VIEW MIRROR ASSY(LEFT)REAR VIEW MIRROR ASSY(LEFT)
