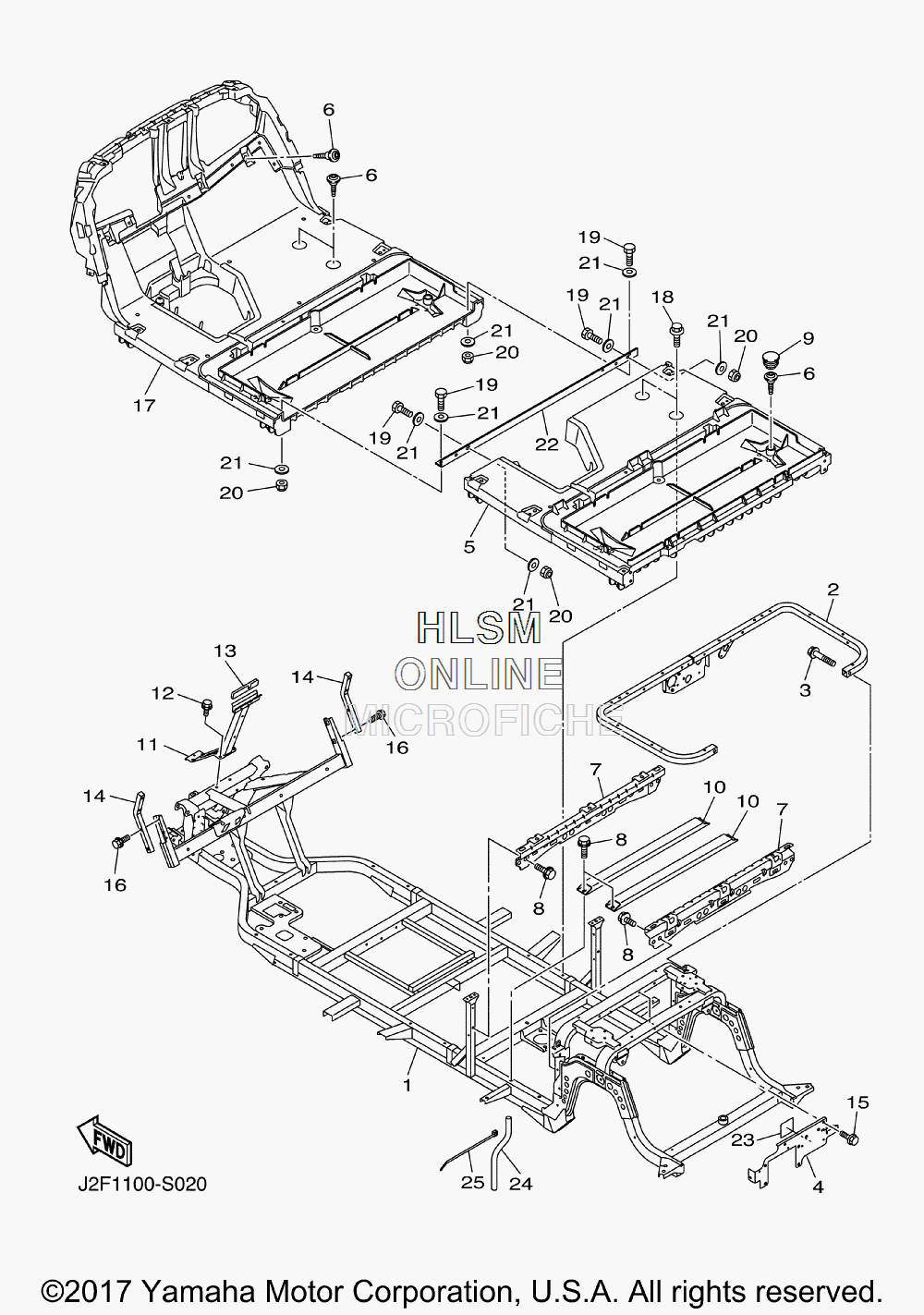

FRAME для Yamaha SUPER HAULER (DR2E17 SERIAL: J03-000101) - 2017 года выпуска
-
№АртикулНазвание
-
1J2F-F2501-00-00 FRAME COMP.FRAME COMP.
-
2J0B-F255G-00-00 MEMBER, SEAT SUPPORTMEMBER, SEAT SUPPORT
-
395812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
4JC1-F252M-10-00 BRACKET, 3BRACKET, 3
-
5J2E-F7411-00-00 FOOTREST 1FOOTREST 1
-
6J0B-F1738-00-00 BOLTBOLT
-
7JW9-F2535-00-00 STAY, BATTERY 1STAY, BATTERY 1
-
8JW1-F1738-00-00 BOLTBOLT
-
9JW9-F2417-00-00 PLUGPLUG
-
10JW9-F2198-10-00 MEMBER, CROSSMEMBER, CROSS
-
11J0B-F258E-00-00 SUPPORT, FRONT COWLSUPPORT, FRONT COWL
-
1290105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
13J0B-F2127-00-00 SHIMSHIM
-
14J0B-K816M-00-00 REAR STORAGE BOX COMP.REAR STORAGE BOX COMP.
-
1590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
1690105-088B6-00 BOLT, FLANGEBOLT, FLANGE
-
17J2F-F7421-00-00 FOOTREST 2FOOTREST 2
-
18JW1-F1738-00-00 BOLTBOLT
-
19JD1-K7481-00-00 BOLTBOLT
-
20JD1-K7528-00-00 NUTNUT
-
21JD1-K7525-00-00 WASHER 1WASHER 1
-
22J2B-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
23JW2-K8298-10-00 PLATE, CAUTION 2 (E,F)PLATE, CAUTION 2 (E,F)
-
24J0B-F125J-00-00 PIPE, DRAINPIPE, DRAIN
-
2590464-76800-00 CLAMPCLAMP
