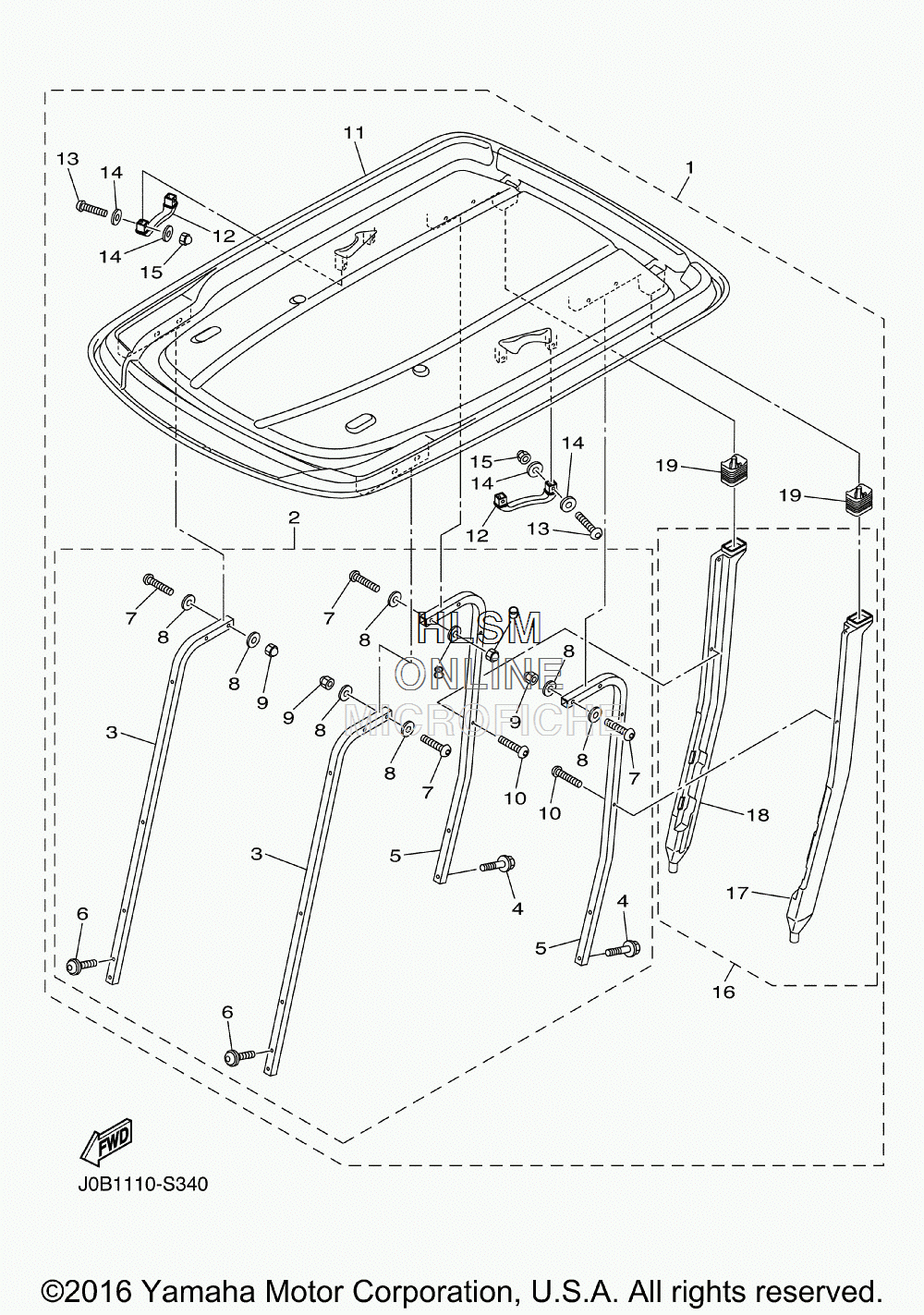

SUN ROOF (ALTERNATE) для Yamaha DRIVE2 PTV (DR2E17PTV SERIAL: J0E-000101) - 2017 года выпуска`
-
№АртикулНазвание
-
1J0B-K84A0-00-00 SUN TOP KIT (TAN)SUN TOP KIT (TAN)
-
1J0B-K84A0-10-00 SUN TOP KIT (BLACK)SUN TOP KIT (BLACK)
-
2J0B-K84A2-00-00 ...HARDWARE KIT, SUN TOP...HARDWARE KIT, SUN TOP
-
3J0B-K8312-00-00 ......SUPPORT, SUN ROOF 1......SUPPORT, SUN ROOF 1
-
4JW1-K8388-00-00 ......BOLT, ROOF 1......BOLT, ROOF 1
-
5JW1-K8313-01-00 ......SUPPORT, SUN ROOF 2......SUPPORT, SUN ROOF 2
-
6J0B-K8388-00-00 ......BOLT, ROOF 1......BOLT, ROOF 1
-
7JU0-K8388-00-00 ......BOLT, ROOF 1......BOLT, ROOF 1
-
8JW1-F1549-01-00 ......WASHER, FENDER MOLD......WASHER, FENDER MOLD
-
9JU0-K8398-00-00 ......NUT, ROOF 1......NUT, ROOF 1
-
10JW1-K7387-00-00 ......SCREW......SCREW
-
11JW1-K8314-10-00 ...COVER, SUN ROOF (TAN)...COVER, SUN ROOF (TAN)
-
11JW1-K8314-20-00 ...COVER, SUN ROOF (BLACK)...COVER, SUN ROOF (BLACK)
-
12JW1-K8214-00-00 ...GRIP, HAND...GRIP, HAND
-
13JU0-K8388-00-00 ...BOLT, ROOF 1...BOLT, ROOF 1
-
14JW1-F1549-01-00 ...WASHER, FENDER MOLD...WASHER, FENDER MOLD
-
15JU0-K8398-00-00 ...NUT, ROOF 1...NUT, ROOF 1
-
16J0B-F417A-00-00 ...DRAIN TUBE ASSY...DRAIN TUBE ASSY
-
17J0B-F413G-00-00 ......TUBE, DRAIN......TUBE, DRAIN
-
18J0B-F413J-00-00 ......TUBE, DRAIN 2......TUBE, DRAIN 2
-
19JW1-F414G-10-00 SEALSEAL
