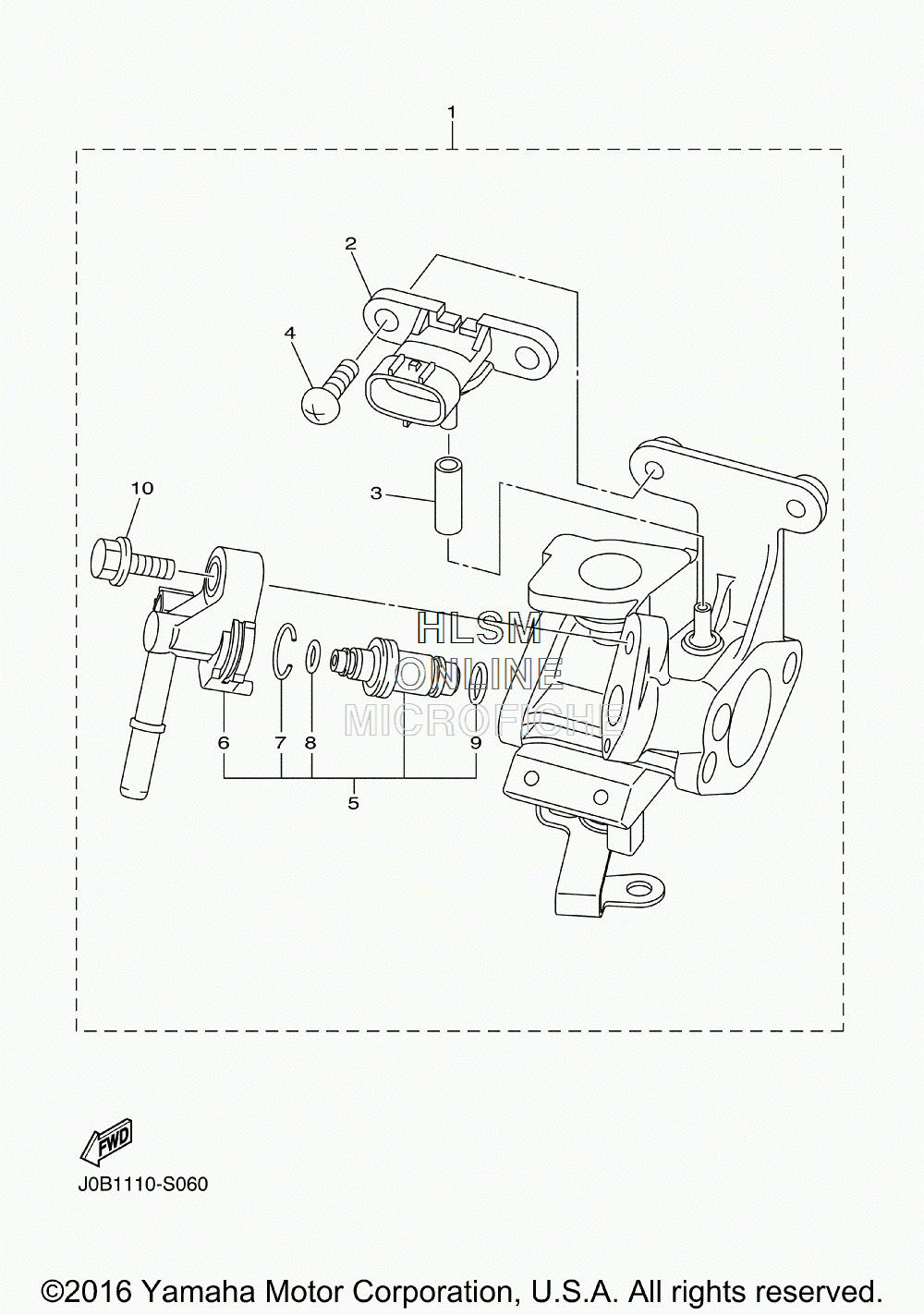

THROTTLE BODY ASSY. для Yamaha DRIVE2 PTV (DR2A17PTV SERIAL: J0D-000101) - 2017 года выпуска`
-
№АртикулНазвание
-
1J0B-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
21C7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
3JC0-13542-00-00 ...HOSE, VACUUM SENSING 1...HOSE, VACUUM SENSING 1
-
498502-06014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
5J0B-13770-00-00 ...INJECTOR ASSY...INJECTOR ASSY
-
652S-13938-00-00 ......PIPE......PIPE
-
752B-14137-00-00 ......CLIP......CLIP
-
852B-14147-00-00 ......O-RING......O-RING
-
95CA-14147-00-00 ......O-RING......O-RING
-
1095812-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
