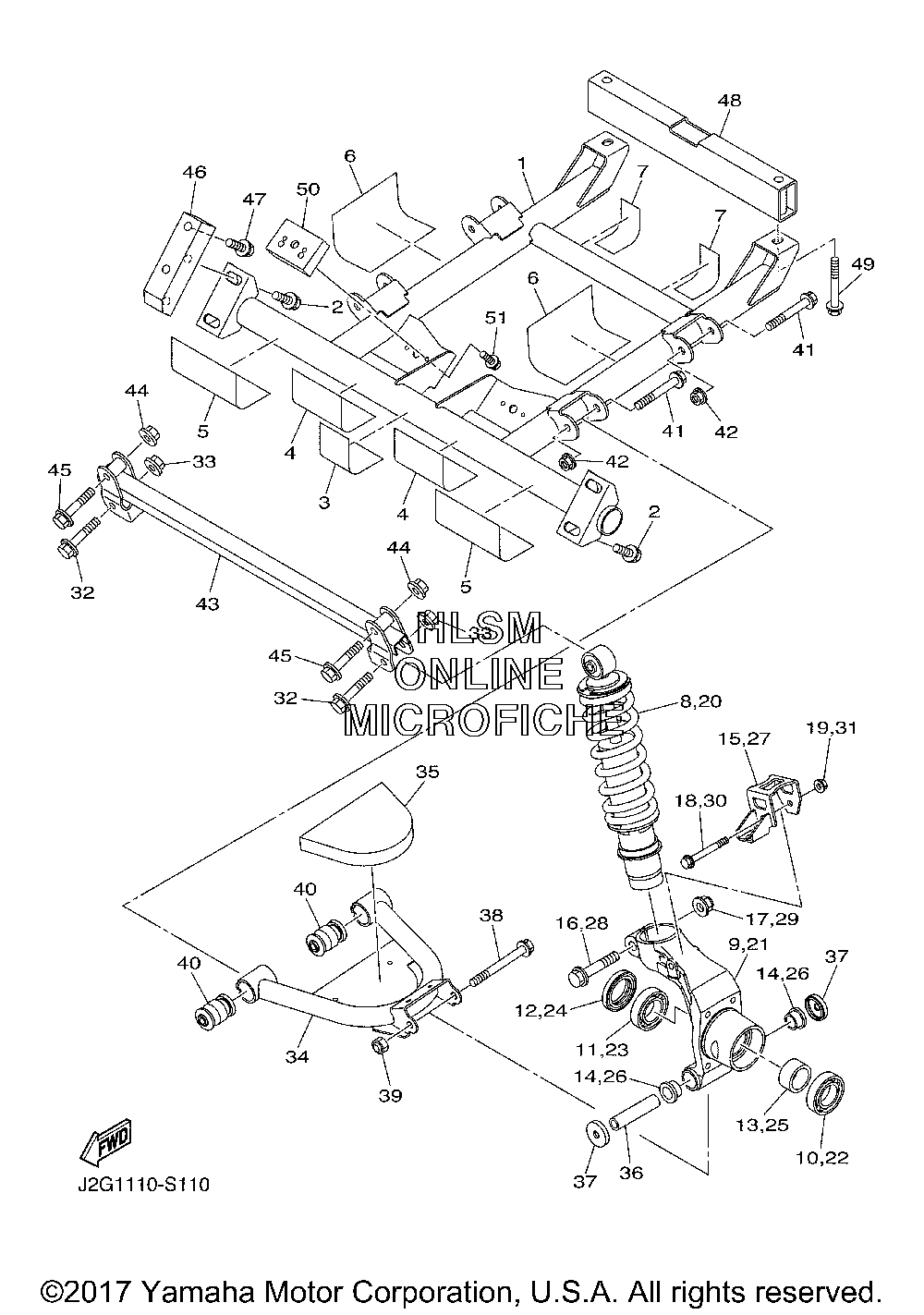

SUSPENSION - SWING ARM для Yamaha ADVENTURER SPORT 2 + 2 CAMP (DR2A17CAMP SERIAL: J0D-000101) - 2017 года выпуска`
-
№АртикулНазвание
-
1J0B-F2110-02-00 REAR ARM COMP.REAR ARM COMP.
-
295822-10020-00 BOLT, FLANGEBOLT, FLANGE
-
3J0B-F8218-00-00 SEAL 1SEAL 1
-
4J0B-F8228-00-00 SEAL 2SEAL 2
-
5J0B-F8238-00-00 SEAL 3SEAL 3
-
6J0B-F8268-00-00 SEAL 4SEAL 4
-
7J0B-F8278-00-00 SEAL 5SEAL 5
-
8J2G-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
9J0B-F53A1-01-00 KNUCKLE, REARKNUCKLE, REAR
-
1093306-00622-00 BEARINGBEARING
-
1193306-006Y4-00 BEARINGBEARING
-
1293106-38046-00 OIL SEALOIL SEAL
-
13J0B-F3113-00-00 COLLARCOLLAR
-
1490381-17800-00 BUSH, SOLIDBUSH, SOLID
-
15J0B-F537W-00-00 BRACKET 1BRACKET 1
-
1695812-12055-00 BOLT, FLANGEBOLT, FLANGE
-
1795602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1895812-08060-00 BOLT, FLANGEBOLT, FLANGE
-
1995702-08500-00 NUT, FLANGENUT, FLANGE
-
20J2G-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
21J0B-F53A1-01-00 KNUCKLE, REARKNUCKLE, REAR
-
2293306-00622-00 BEARINGBEARING
-
2393306-006Y4-00 BEARINGBEARING
-
2493106-38046-00 OIL SEALOIL SEAL
-
25J0B-F3113-00-00 COLLARCOLLAR
-
2690381-17800-00 BUSH, SOLIDBUSH, SOLID
-
27J0B-F537W-00-00 BRACKET 1BRACKET 1
-
2895812-12055-00 BOLT, FLANGEBOLT, FLANGE
-
2995602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3095812-08060-00 BOLT, FLANGEBOLT, FLANGE
-
3195702-08500-00 NUT, FLANGENUT, FLANGE
-
3295812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3395602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
34J0B-F2171-01-00 ARM, REAR 1ARM, REAR 1
-
35J0B-K8254-00-00 PAD, SILENCER 4PAD, SILENCER 4
-
365KM-23448-00-00 SPACERSPACER
-
375UG-23517-10-00 COVER, THRUST 1COVER, THRUST 1
-
3890105-10185-00 BOLT, FLANGEBOLT, FLANGE
-
3990185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
402HR-23526-00-00 BUSHBUSH
-
4190105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
4295602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
43J2G-F2563-00-00 BRACKET, REAR SUSPENSIONBRACKET, REAR SUSPENSION
-
4495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
4595812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
46J2G-F2229-00-00 BRACKET, UNDERBRACKET, UNDER
-
4790111-10800-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
48J2G-F251F-00-00 BRKT., RR. ARMBRKT., RR. ARM
-
4990105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
50J2G-F1459-00-00 SPACERSPACER
-
5195812-08020-00 BOLT, FLANGEBOLT, FLANGE
