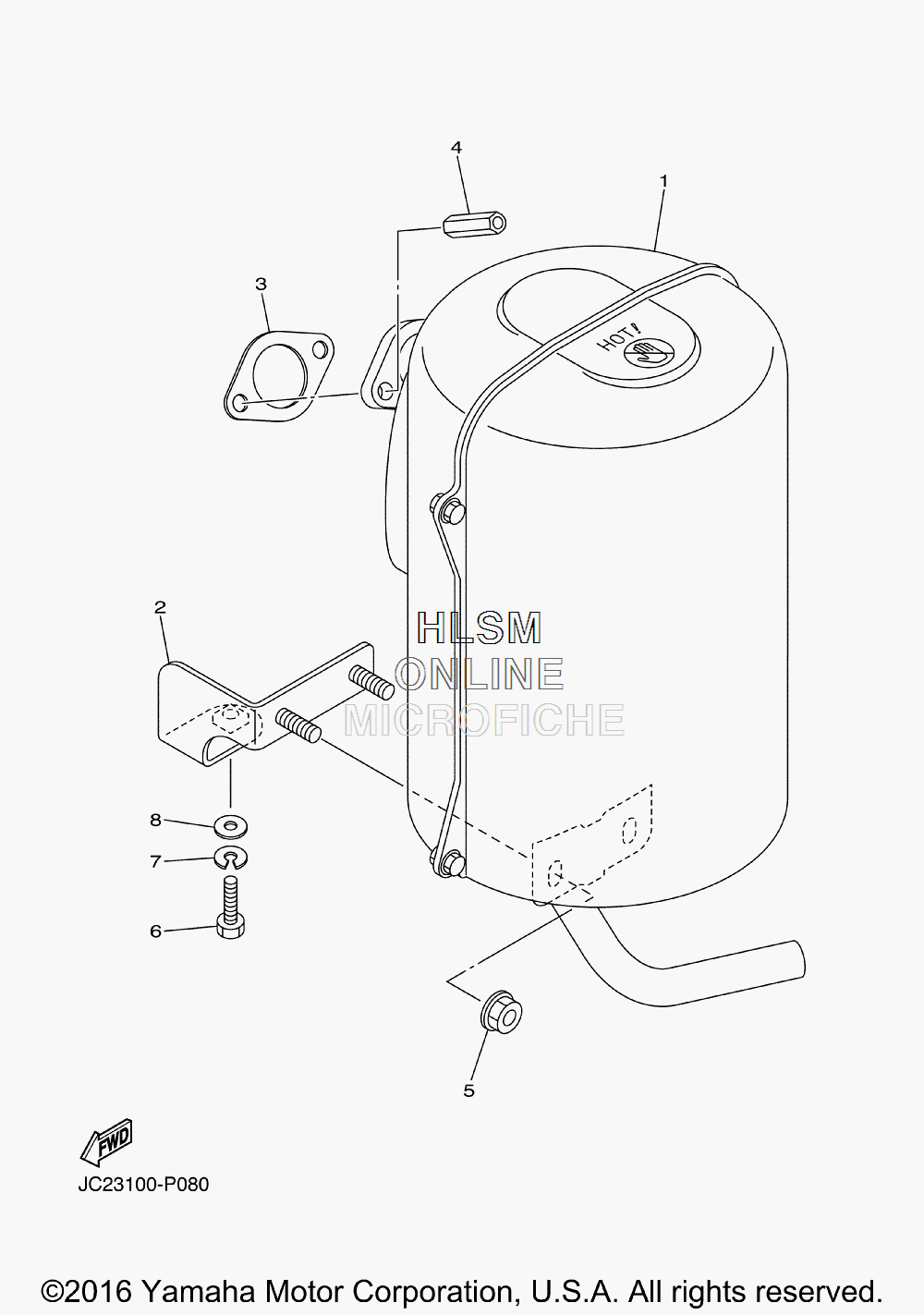

EXHAUST для Yamaha ADVENTURER ONE (YTF1A17 SERIAL: JW6-900101) - 2017 года выпуска
-
№АртикулНазвание
-
1JW8-E4710-01-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
2JW8-F1436-00-00 BRKT., MUFF. 2BRKT., MUFF. 2
-
37KY-14613-01-00 GASKET, EXHAUST 1GASKET, EXHAUST 1
-
4JW1-E4713-00-00 NUT, MUFFLER JOINTNUT, MUFFLER JOINT
-
595602-08200-00 NUT, U FLANGENUT, U FLANGE
-
697002-08025-00 BOLTBOLT
-
792902-08100-00 WASHER, SPRINGWASHER, SPRING
-
892902-08600-00 WASHER, PLATEWASHER, PLATE
