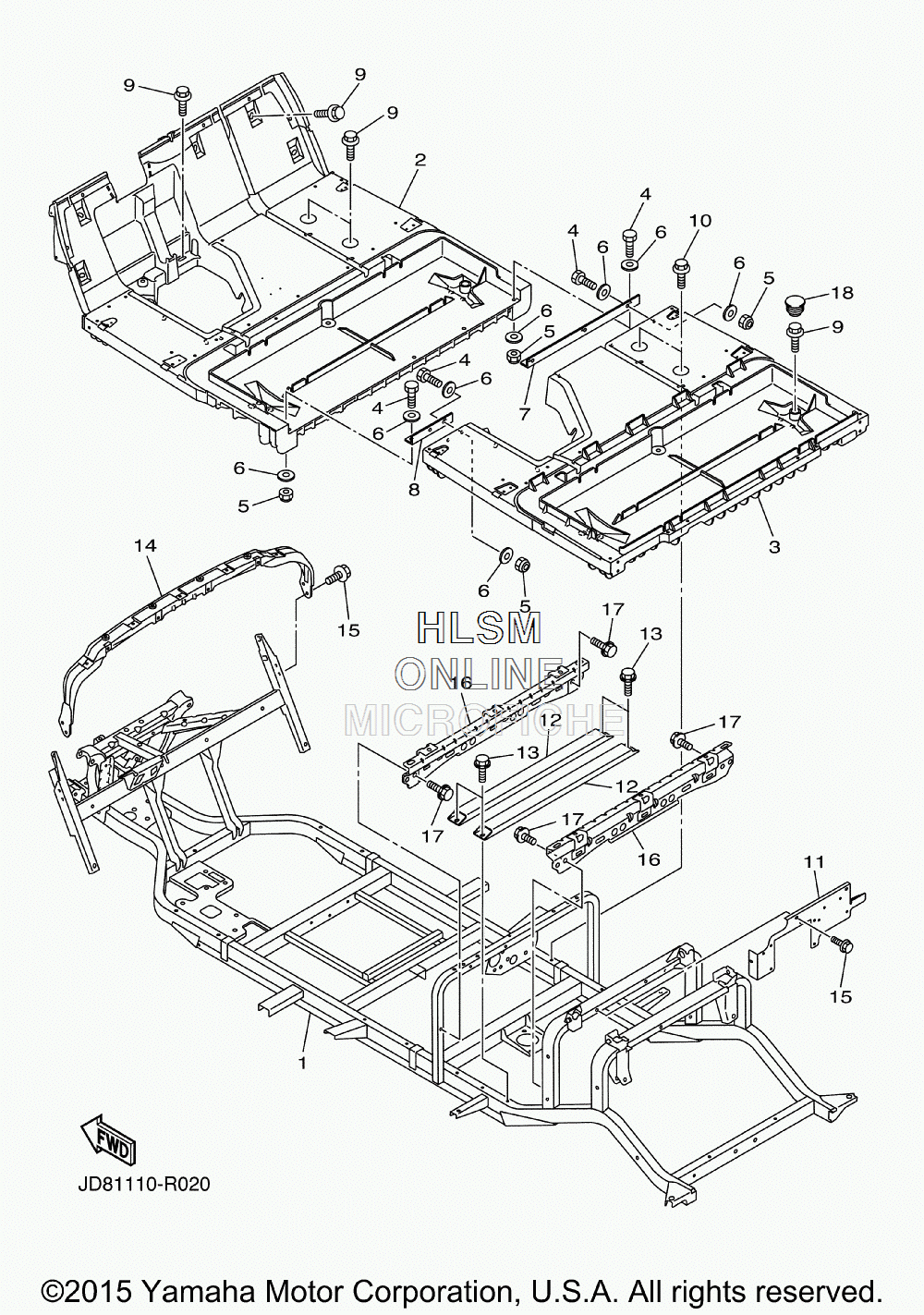

FRAME для Yamaha SPECIALTY VEHICLE SUPER HAULER [YDREX6 SUPER] (JD81) - 2016 года выпуска
-
№АртикулНазвание
-
1JD8-F2501-00-00 FRAME COMP.FRAME COMP.
-
2JD7-F7411-00-00 FOOTREST 1FOOTREST 1
-
3JD8-F7421-00-00 FOOTREST 2FOOTREST 2
-
4JD1-K7481-00-00 BOLTBOLT
-
5JD1-K7528-00-00 NUTNUT
-
6JD1-K7525-00-00 WASHER 1WASHER 1
-
7JD3-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
8JD3-F7462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
9JW1-F1738-00-00 BOLTBOLT
-
10JW1-F1738-00-00 BOLTBOLT
-
11JC1-F252M-00-00 BRACKET, 3BRACKET, 3
-
12JW9-F2198-10-00 MEMBER, CROSSMEMBER, CROSS
-
13JW1-F1738-00-00 BOLTBOLT
-
14JW1-F258G-02-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
1590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
16JW9-F2535-00-00 STAY, BATTERY 1STAY, BATTERY 1
-
17JW1-F1738-00-00 BOLTBOLT
-
18JW9-F2417-00-00 PLUGPLUG
