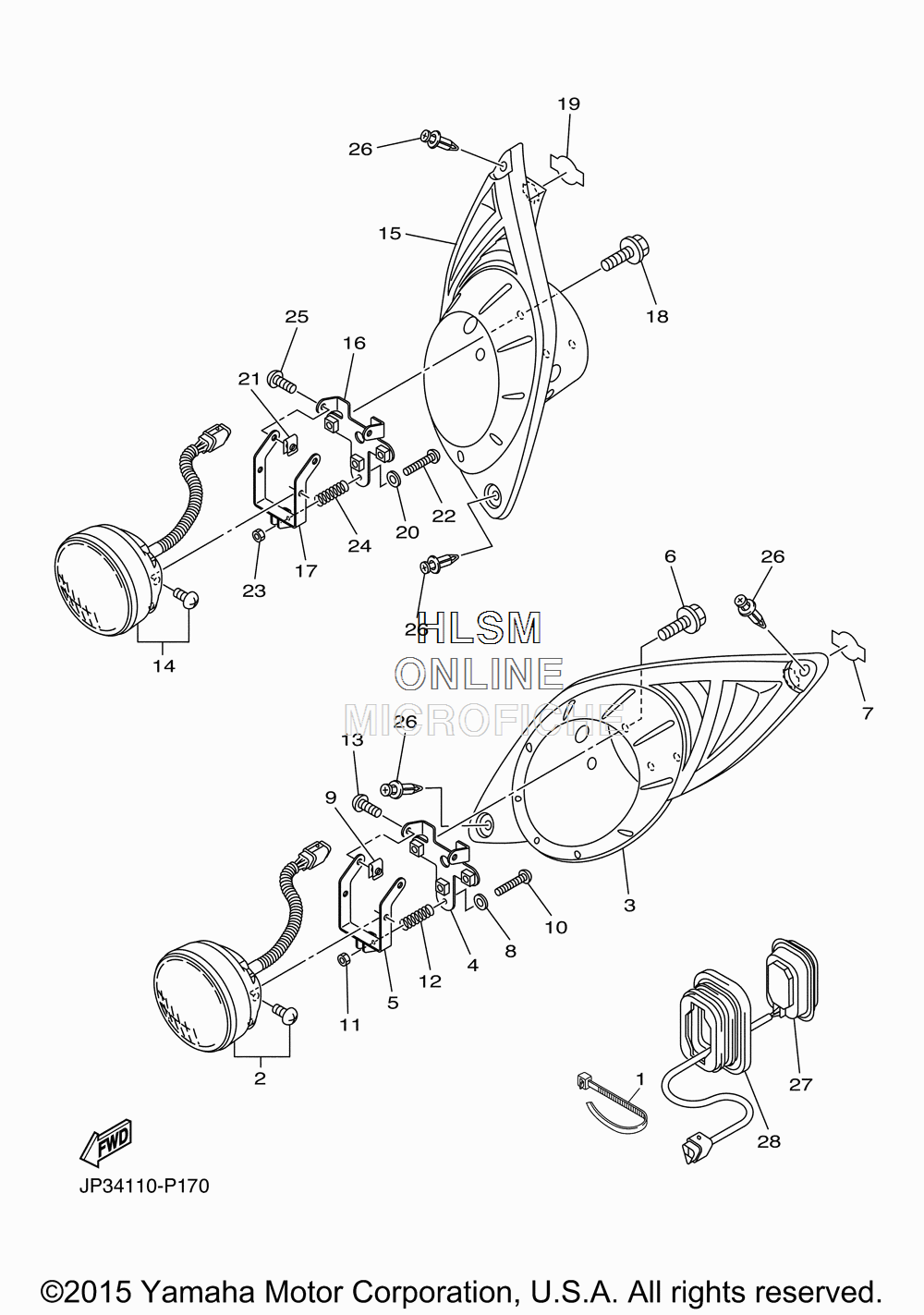

HEADLIGHT / TAIL LIGHT для Yamaha ADVENTURER SPORT [YTF1EX6AC] (JP35) - 2016 года выпуска`
-
№АртикулНазвание
-
190464-48800-00 CLAMPCLAMP
-
2JW6-H4300-10-00 HEADLIGHT ASSY HALOGEN (12V35W)HEADLIGHT ASSY HALOGEN (12V35W)
-
3JC0-H4111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
4JW6-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
5JW6-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
690119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
890201-03008-00 WASHER, PLATEWASHER, PLATE
-
990183-050A6-00 NUT, SPRINGNUT, SPRING
-
10JW6-H433E-01-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
112GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
122GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
1398902-05016-00 SCREW, BINDSCREW, BIND
-
14JW6-H4300-10-00 HEADLIGHT ASSY HALOGEN (12V35W)HEADLIGHT ASSY HALOGEN (12V35W)
-
15JC0-H4311-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
16JW6-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
17JW6-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
1890119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
2090201-03008-00 WASHER, PLATEWASHER, PLATE
-
2190183-050A6-00 NUT, SPRINGNUT, SPRING
-
22JW6-H433E-01-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
232GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
242GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
2598902-05016-00 SCREW, BINDSCREW, BIND
-
2690269-06800-00 RIVETRIVET
-
27JU5-H4700-10-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
28JU5-H4718-00-00 GROMMETGROMMET
