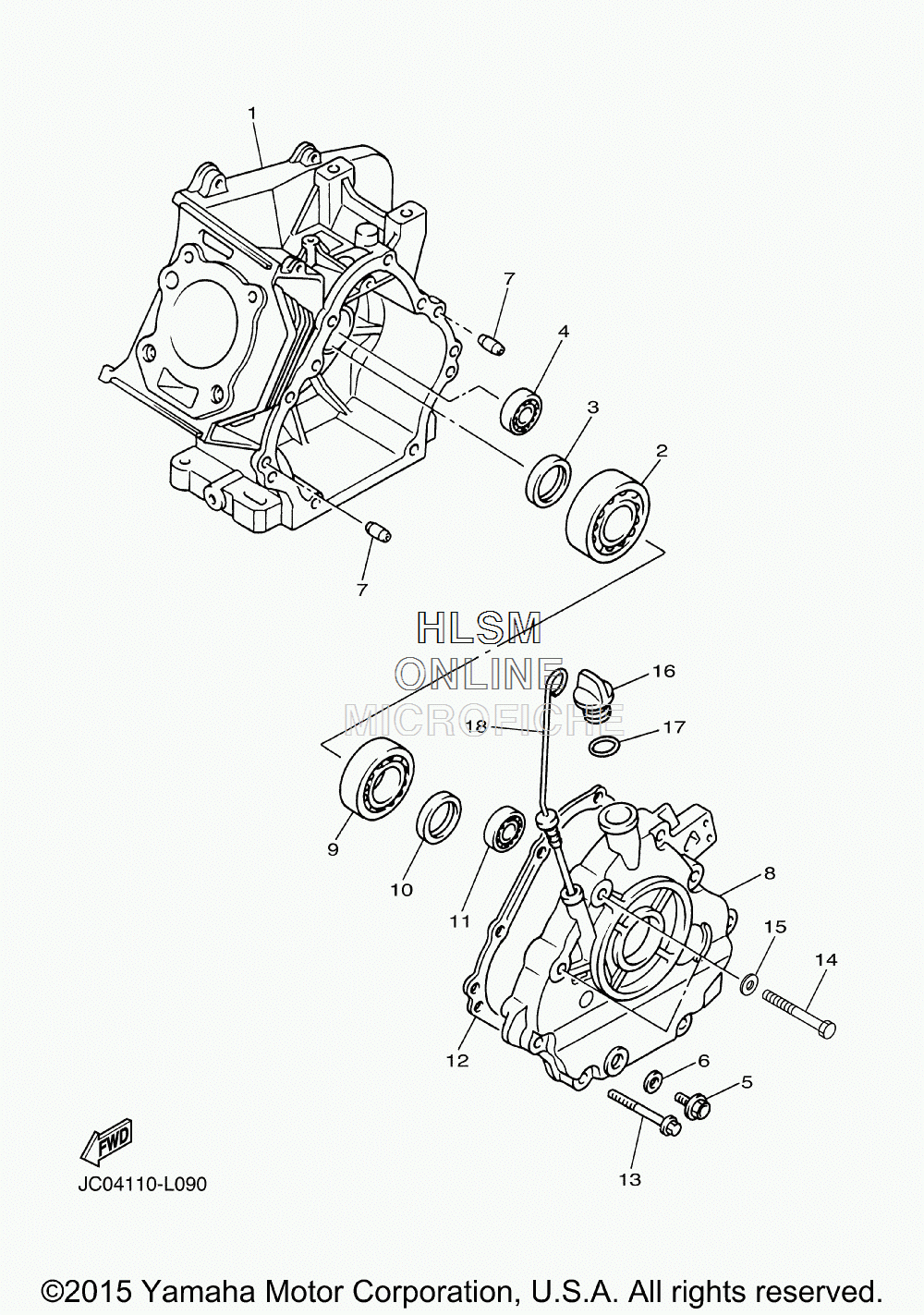

CRANKCASE для Yamaha ADVENTURER SPORT [YTF1AX6] (JP24) - 2016 года выпуска`
-
№АртикулНазвание
-
1JC0-15111-01-00 CRANKCASE 1CRANKCASE 1
-
293306-30709-00 BEARINGBEARING
-
393102-35014-00 OIL SEALOIL SEAL
-
493306-20201-00 BEARINGBEARING
-
590340-12097-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
6812-11198-00-00 GASKETGASKET
-
799530-08016-00 PIN, DOWELPIN, DOWEL
-
8JN6-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
993306-20714-00 BEARINGBEARING
-
1093102-35014-00 OIL SEALOIL SEAL
-
1193306-20201-00 BEARINGBEARING
-
12JY2-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1395812-08045-00 BOLT, FLANGEBOLT, FLANGE
-
1497012-10050-00 BOLTBOLT
-
1590201-10057-00 WASHER, PLATEWASHER, PLATE
-
16796-15363-01-00 PLUG, OILPLUG, OIL
-
1793210-22344-00 O-RINGO-RING
-
18J38-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
