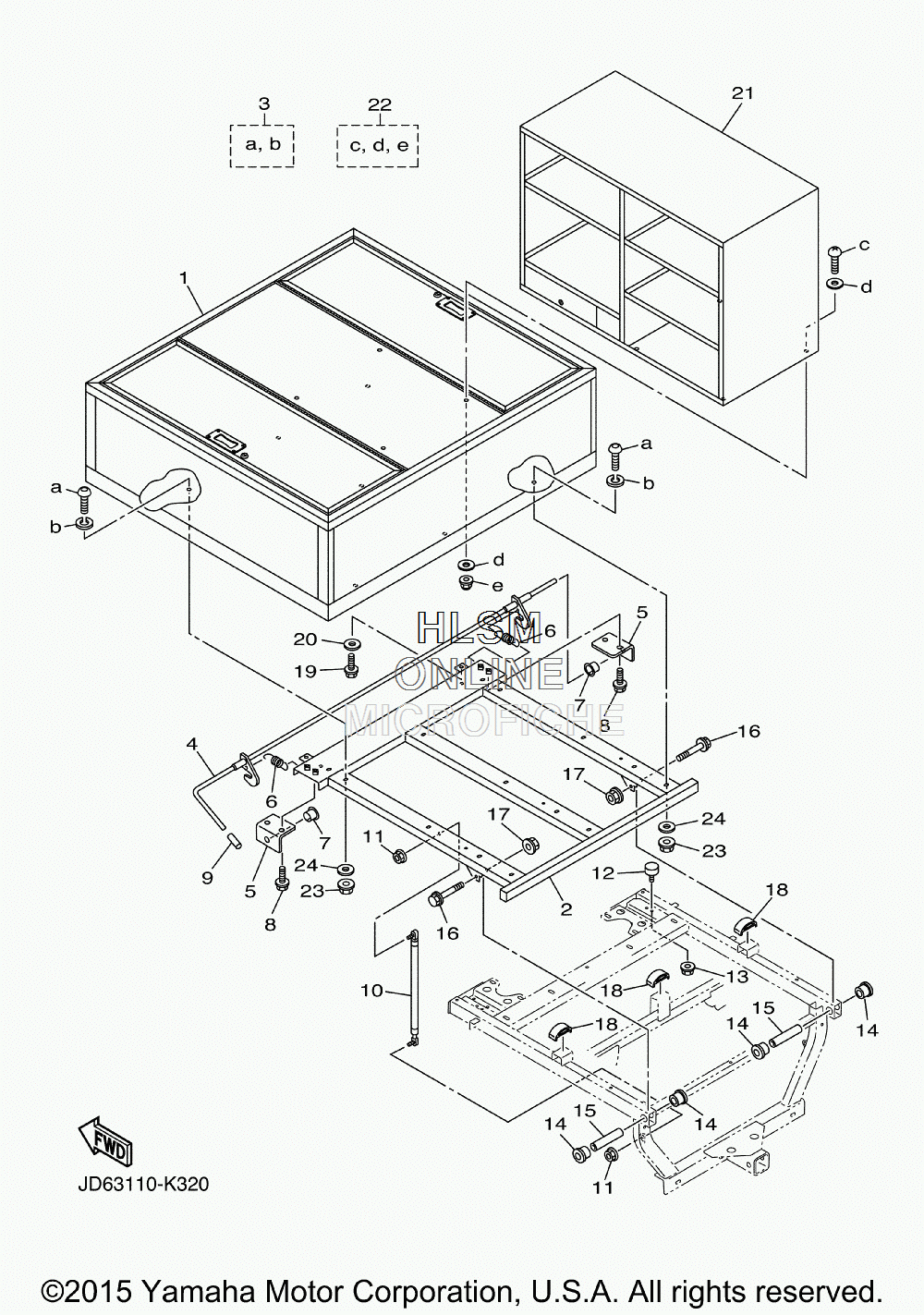

CARRIER для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2ATX5BEVER] (JD66) - 2015 года выпуска`
-
№АртикулНазвание
-
1JD6-K810R-00-00 REAR STORAGE BOX ASSYREAR STORAGE BOX ASSY
-
2JW7-K818N-00-00 BED, BOXBED, BOX
-
3JD6-F85D2-00-00 HARDWARE KIT, LONG BEDHARDWARE KIT, LONG BED
-
4JW6-K7180-00-00 LATCH ASSYLATCH ASSY
-
5JW6-K7185-00-00 PLATE 1PLATE 1
-
690506-16451-00 SPRING, TENSIONSPRING, TENSION
-
72P5-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
895822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
9JJ3-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
105UG-F8415-00-00 DAMPER 1DAMPER 1
-
1195602-08200-00 NUT, U FLANGENUT, U FLANGE
-
12JU5-K8167-11-00 BUMPER, RUBBER 1BUMPER, RUBBER 1
-
1395602-08200-00 NUT, U FLANGENUT, U FLANGE
-
14JW6-F2123-00-00 BUSH 1BUSH 1
-
15JW6-F1633-00-00 COLLAR, 1COLLAR, 1
-
1695812-08070-00 BOLT, FLANGEBOLT, FLANGE
-
1795602-08200-00 NUT, U FLANGENUT, U FLANGE
-
18JJ3-K815H-01-00 DAMPER, LOCKDAMPER, LOCK
-
1995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-08053-00 WASHER, PLATEWASHER, PLATE
-
21JD6-H3715-00-00 DISPLAY UNITDISPLAY UNIT
-
22JD6-F84AA-00-00 HARDWARE KIT, TOP CASEHARDWARE KIT, TOP CASE
-
2395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
2490201-10830-00 WASHER, PLATEWASHER, PLATE
