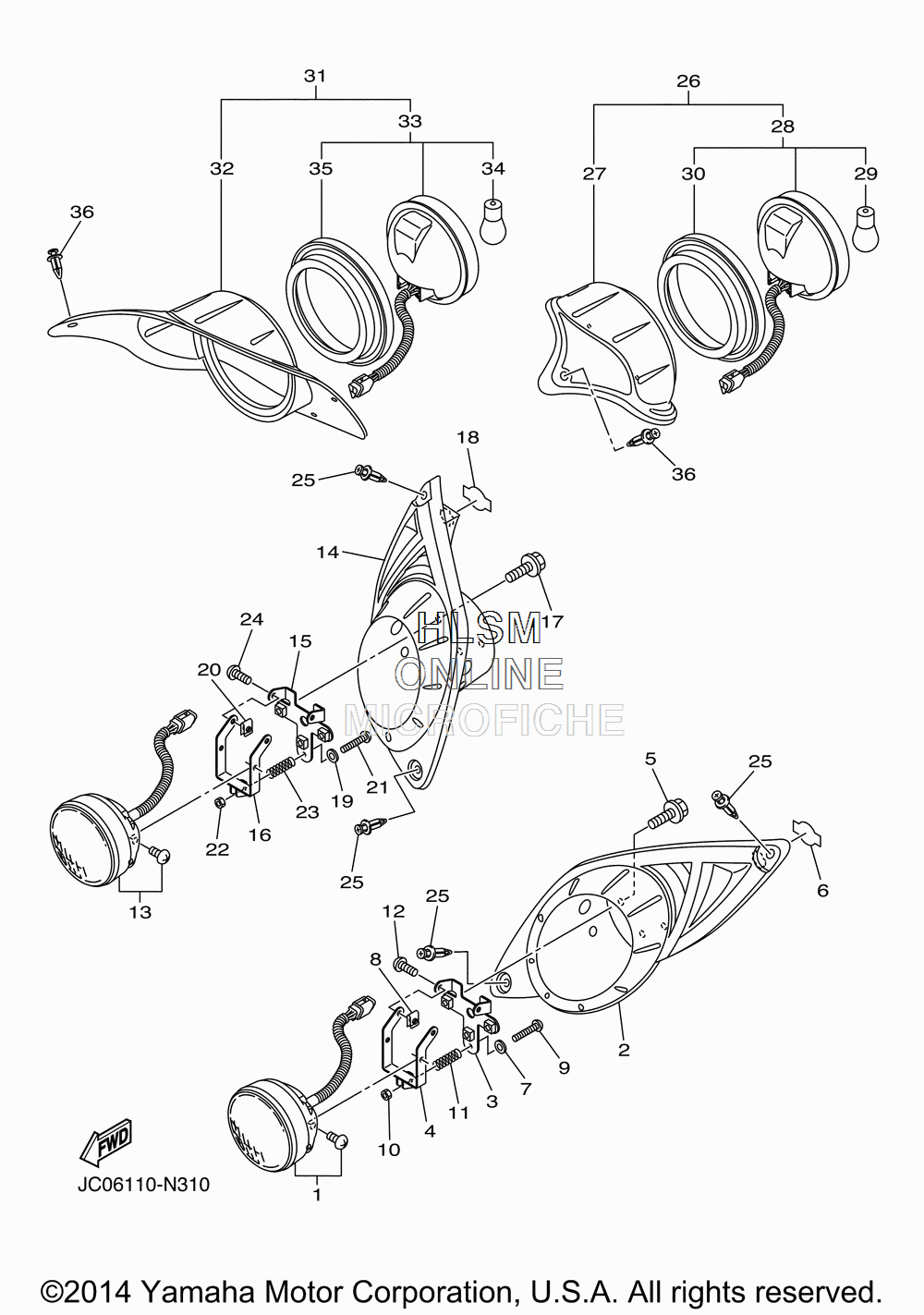

HEADLIGHT / TAIL LIGHT для Yamaha GOLF CAR [YDREX5PTV AC DRIVE PTV] (JC18) - 2015 года выпуска
-
№АртикулНазвание
-
1JW6-H4300-10-00 HEADLIGHT ASSY HALOGEN (12V35W)HEADLIGHT ASSY HALOGEN (12V35W)
-
2JC0-H4111-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
3JW6-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
4JW6-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
590119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
790201-03008-00 WASHER, PLATEWASHER, PLATE
-
890183-050A6-00 NUT, SPRINGNUT, SPRING
-
9JW6-H433E-01-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
102GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
112GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
1298902-05016-00 SCREW, BINDSCREW, BIND
-
13JW6-H4300-10-00 HEADLIGHT ASSY HALOGEN (12V35W)HEADLIGHT ASSY HALOGEN (12V35W)
-
14JC0-H4311-00-00 BODY, HEADLIGHTBODY, HEADLIGHT
-
15JW6-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
16JW6-H4319-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
1790119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
18JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
1990201-03008-00 WASHER, PLATEWASHER, PLATE
-
2090183-050A6-00 NUT, SPRINGNUT, SPRING
-
21JW6-H433E-01-00 SCREW, ADJUSTINGSCREW, ADJUSTING
-
222GU-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
232GU-84332-00-00 SPRING, SCREWSPRING, SCREW
-
2498902-05016-00 SCREW, BINDSCREW, BIND
-
2590269-06800-00 RIVETRIVET
-
26JC0-H4710-20-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
27JC0-H431U-10-00 ...HOLDER...HOLDER
-
28JC0-H4700-00-00 ...TAILLIGHT ASSY...TAILLIGHT ASSY
-
29JC0-H4514-00-00 ......BULB (12V-7W/27W)......BULB (12V-7W/27W)
-
30JC0-H4718-00-00 ......GROMMET......GROMMET
-
31JC0-H4730-20-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
32JC0-H4387-10-00 ...HOLDER...HOLDER
-
33JC0-H4700-00-00 ...TAILLIGHT ASSY...TAILLIGHT ASSY
-
34JC0-H4514-00-00 ......BULB (12V-7W/27W)......BULB (12V-7W/27W)
-
35JC0-H4718-00-00 ......GROMMET......GROMMET
-
3690269-06800-00 RIVETRIVET
