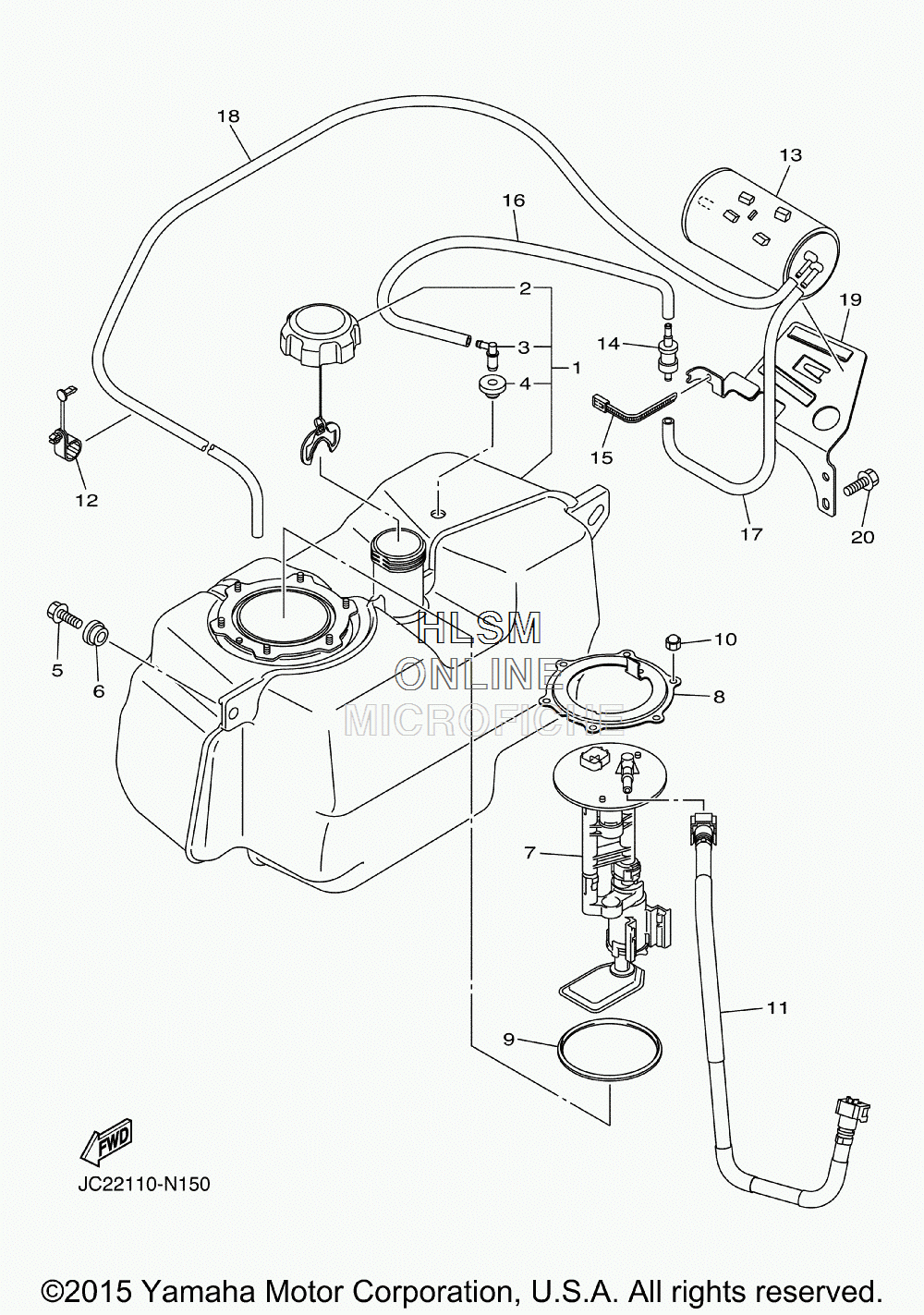

FUEL TANK для Yamaha GOLF CAR GAS [DRIVE YDRAX5F] (JC23) - 2015 года выпуска`
-
№АртикулНазвание
-
1JC0-F4111-01-00 TANK, FUELTANK, FUEL
-
2JW1-F4610-00-00 ...CAP ASSY...CAP ASSY
-
3JW1-F4112-00-00 ...PIPE...PIPE
-
4JU5-F4375-00-00 ...GROMMET...GROMMET
-
5JW1-F1738-00-00 BOLTBOLT
-
690560-08251-00 SPACERSPACER
-
7JC0-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
818P-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
91S3-24486-00-00 O-RINGO-RING
-
1095302-06800-00 NUT, CROWNNUT, CROWN
-
11JC0-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
12JW7-F312H-00-00 CLAMPCLAMP
-
137CC-F4170-00-00 CANISTER ASSYCANISTER ASSY
-
144WM-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
1590464-40825-00 CLAMPCLAMP
-
16JW7-F4314-10-00 PIPE 4PIPE 4
-
17JW1-F4316-00-00 PIPE 6PIPE 6
-
18JW1-F4317-00-00 PIPE 7PIPE 7
-
19JW1-F419A-11-00 HOLDERHOLDER
-
20JW1-F1738-00-00 BOLTBOLT
