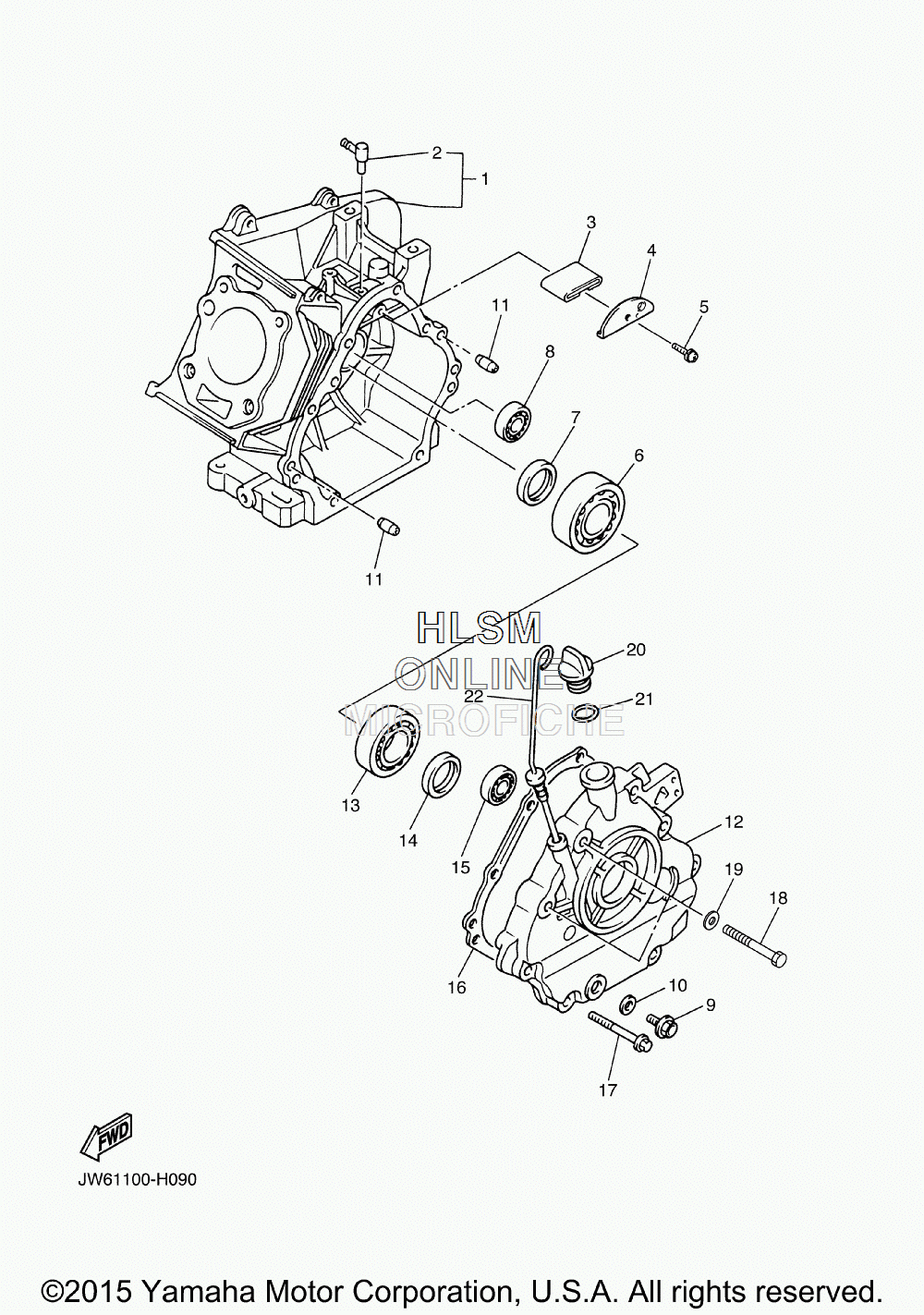

CRANKCASE для Yamaha GOLF CAR GAS [DRIVE YDRAX5] (JW86) - 2015 года выпуска`
-
№АртикулНазвание
-
1JR7-15100-02-00 CRANKCASE ASSYCRANKCASE ASSY
-
2JN6-15155-10-00 ...NOZZLE 3...NOZZLE 3
-
3JW1-E5407-00-00 ELEMENT 1ELEMENT 1
-
4JR7-15123-00-00 PLATE, BAFFLE 1PLATE, BAFFLE 1
-
590159-06107-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
693306-30709-00 BEARINGBEARING
-
793102-35014-00 OIL SEALOIL SEAL
-
893306-20201-00 BEARINGBEARING
-
990340-12097-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
10812-11198-00-00 GASKETGASKET
-
1199530-08016-00 PIN, DOWELPIN, DOWEL
-
12JN6-15411-01-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
1393306-20714-00 BEARINGBEARING
-
1493102-35014-00 OIL SEALOIL SEAL
-
1593306-20201-00 BEARINGBEARING
-
16JY2-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1795812-08045-00 BOLT, FLANGEBOLT, FLANGE
-
1897012-10050-00 BOLTBOLT
-
1990201-10057-00 WASHER, PLATEWASHER, PLATE
-
20796-15363-01-00 PLUG, OILPLUG, OIL
-
2193210-22344-00 O-RINGO-RING
-
22J38-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
