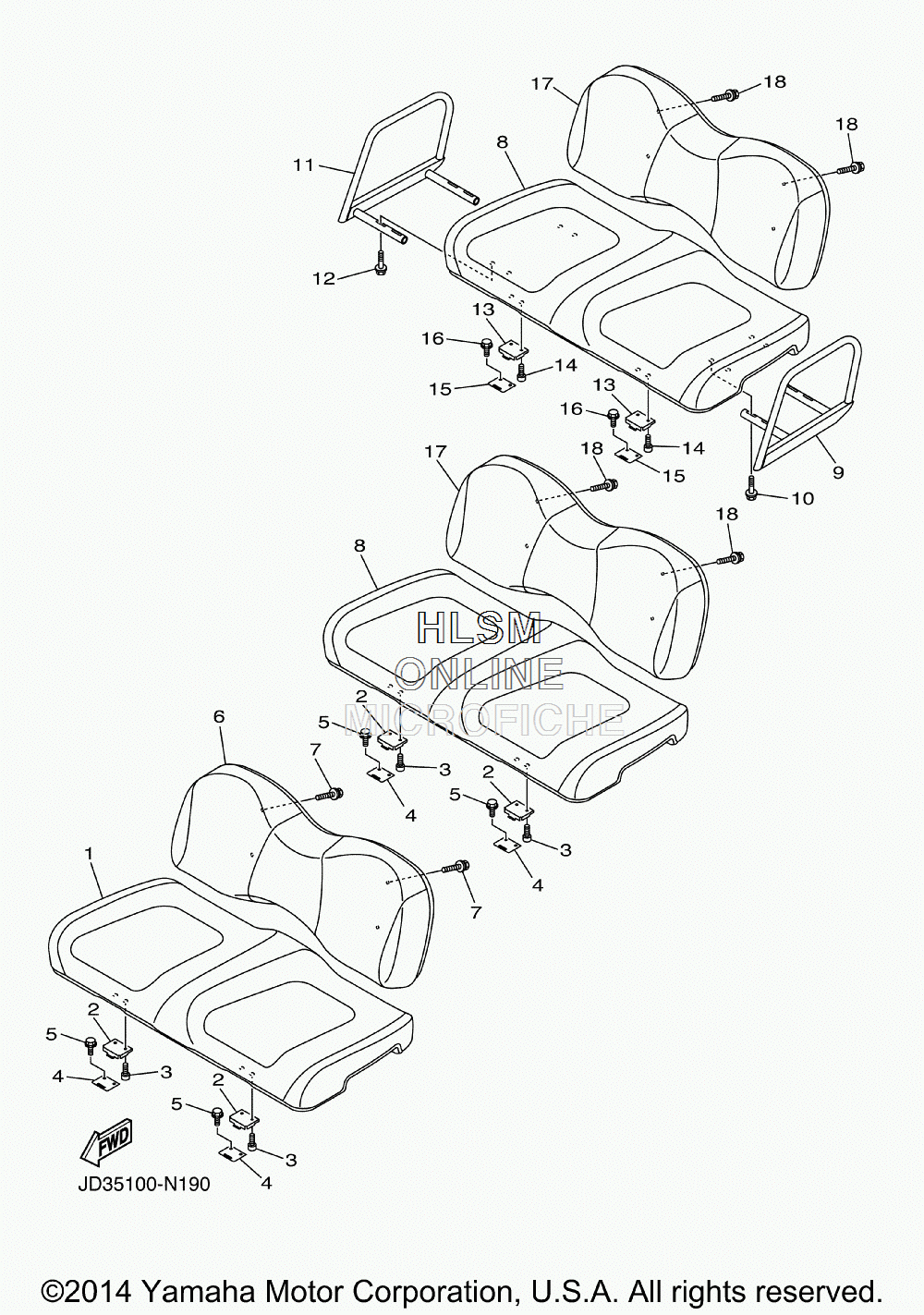

SEAT для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDRAX4PTV6] (JD05) - 2014 года выпуска`
-
№АртикулНазвание
-
1JW1-K8401-12-00 SEAT SUB-ASSY,CUSHIONSEAT SUB-ASSY,CUSHION
-
2JW1-K8426-00-00 HINGE, SEAT 1HINGE, SEAT 1
-
391317-06016-00 BOLTBOLT
-
4JJ3-K8427-01-00 HINGE, SEAT 2HINGE, SEAT 2
-
5JD1-K7481-00-00 BOLTBOLT
-
6JW1-K8402-10-00 SEAT SUB ASSY, BACKSEAT SUB ASSY, BACK
-
790119-06808-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8JW1-K8401-12-00 SEAT SUB-ASSY,CUSHIONSEAT SUB-ASSY,CUSHION
-
9JD1-K8362-00-00 ARM REST 2ARM REST 2
-
1090105-06042-00 BOLT, FLANGEBOLT, FLANGE
-
11JD1-K836L-00-00 ARM REST 3ARM REST 3
-
1290105-06042-00 BOLT, FLANGEBOLT, FLANGE
-
13JW1-K8426-00-00 HINGE, SEAT 1HINGE, SEAT 1
-
1490110-06125-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
15JW1-K8427-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
1690163-06802-00 SCREW, TAPPINGSCREW, TAPPING
-
17JW1-K8402-10-00 SEAT SUB ASSY, BACKSEAT SUB ASSY, BACK
-
1890119-06808-00 BOLT, WITH WASHERBOLT, WITH WASHER
