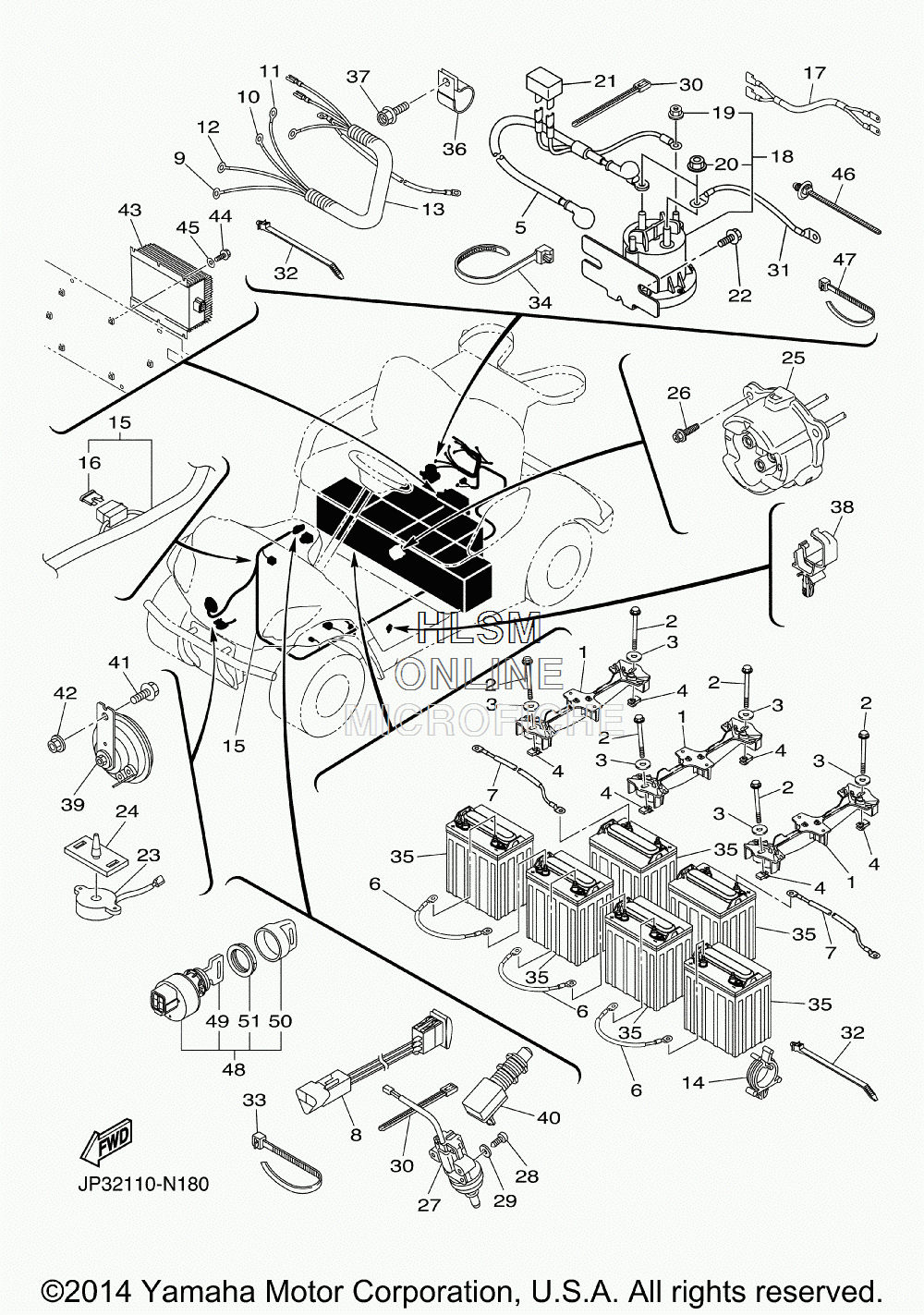

ELECTRICAL для Yamaha ADVENTURER SPORT [YTF1EX4] (JP32) - 2014 года выпуска`
-
№АртикулНазвание
-
1JW9-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
2JW9-H1892-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390201-08310-00 WASHER, PLATEWASHER, PLATE
-
4JW9-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
5JW9-H2115-20-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW9-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
7JW9-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
8JU2-H2917-00-00 SWITCHSWITCH
-
9JU2-H2521-20-00 WIRE, LEAD (F1)WIRE, LEAD (F1)
-
10JU2-H2531-20-00 WIRE, LEAD (F2)WIRE, LEAD (F2)
-
11JU2-H6171-20-00 WIRE, LEAD 1 (A1)WIRE, LEAD 1 (A1)
-
12JW9-H6172-00-00 WIRE, LEAD 2 (A2)WIRE, LEAD 2 (A2)
-
13JU2-H7196-20-00 TUBE 1TUBE 1
-
1490464-25826-00 CLAMPCLAMP
-
15JC1-H2590-60-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
16JN6-H2151-00-00 ...FUSE (10 A)...FUSE (10 A)
-
17JP3-H258A-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
18JW9-H1950-20-00 RELAY ASSYRELAY ASSY
-
1990179-05807-00 ...NUT...NUT
-
2090179-08824-00 ...NUT...NUT
-
21JW9-85371-00-00 RESISTOR COMP.RESISTOR COMP.
-
2290105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
23JR1-H3383-02-00 BUZZERBUZZER
-
24JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
25JW9-H6181-00-00 RECEPTACLERECEPTACLE
-
26JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
27JF7-82817-22-00 SWITCHSWITCH
-
2898502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2992902-05600-00 WASHER, PLATEWASHER, PLATE
-
3090464-40825-00 CLAMPCLAMP
-
31JD3-H6527-00-00 WIRE 7WIRE 7
-
3290464-20005-00 CLAMPCLAMP
-
3390464-48800-00 CLAMPCLAMP
-
3490464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
3690461-14108-00 CLAMPCLAMP
-
3790105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
3890464-20237-00 CLAMPCLAMP
-
394LR-83371-11-00 HORNHORN
-
40JR6-H270X-00-00 SWITCHSWITCH
-
4195822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4295702-06500-00 NUT, FLANGENUT, FLANGE
-
43JU6-H1910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
4497002-05016-00 BOLTBOLT
-
4592902-05600-00 WASHER, PLATEWASHER, PLATE
-
4690464-20005-00 CLAMPCLAMP
-
4790464-48800-00 CLAMPCLAMP
-
48JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
49JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
505UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
51JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
