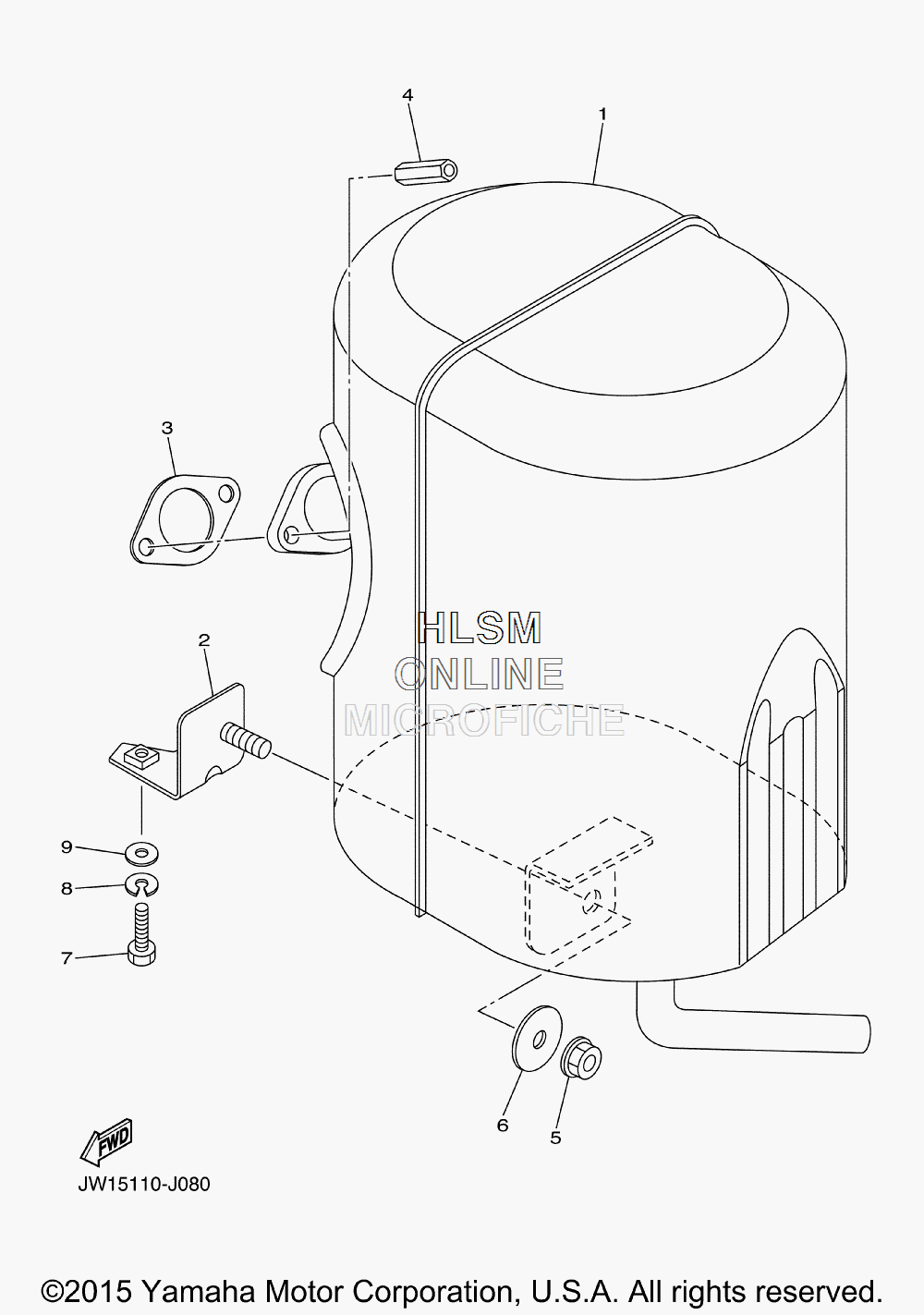

EXHAUST для Yamaha SPECIALTY VEHICLE FAIRWAY LOUNGE [YTF2XPSVB] (JD64) - 2013 года выпуска
-
№АртикулНазвание
-
1JW1-E4710-20-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
2JU0-F1436-00-00 BRKT., MUFF. 2BRKT., MUFF. 2
-
37KY-14613-01-00 GASKET, EXHAUST 1GASKET, EXHAUST 1
-
4JW1-E4713-00-00 NUT, MUFFLER JOINTNUT, MUFFLER JOINT
-
595602-08200-00 NUT, U FLANGENUT, U FLANGE
-
690201-080E4-00 WASHER, PLATEWASHER, PLATE
-
797002-08025-00 BOLTBOLT
-
892902-08100-00 WASHER, SPRINGWASHER, SPRING
-
992902-08600-00 WASHER, PLATEWASHER, PLATE
Все узлы модели:
- AIR CLEANER W/ INTAKE
- AIR SHROUD W/ FAN
- BODY - FRONT
- BODY - REAR
- BODY FITTING
- BRAKE 1
- BRAKE 2
- BUMPER
- CAMSHAFT W/VALVE
- CARBURETOR
- CARRIER
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- ENGINE
- ENGINE BRACKET
- • EXHAUST
- FRAME
- FUEL TANK
- GOVERNOR
- HEADLIGHT
- MODEL INFO - MANUALS
- PEDAL ASSEMBLY
- PRIMARY SHEAVE
- REAR AXLE W/ WHEEL- TRANSAXLE
- SEAT
- SEAT W/ LUGGAGE RACK
- SECONDARY SHEAVE
- SHIFTER CABLES
- STARTING MOTOR
- STEERING
- STORAGE BOX
- SUN ROOF - DOUBLE
- SUN ROOF - SINGLE
- SUSPENSION - FRONT WHEEL
- SUSPENSION - SWING ARM
- TRANSAXLE
- WINDSHIELD
