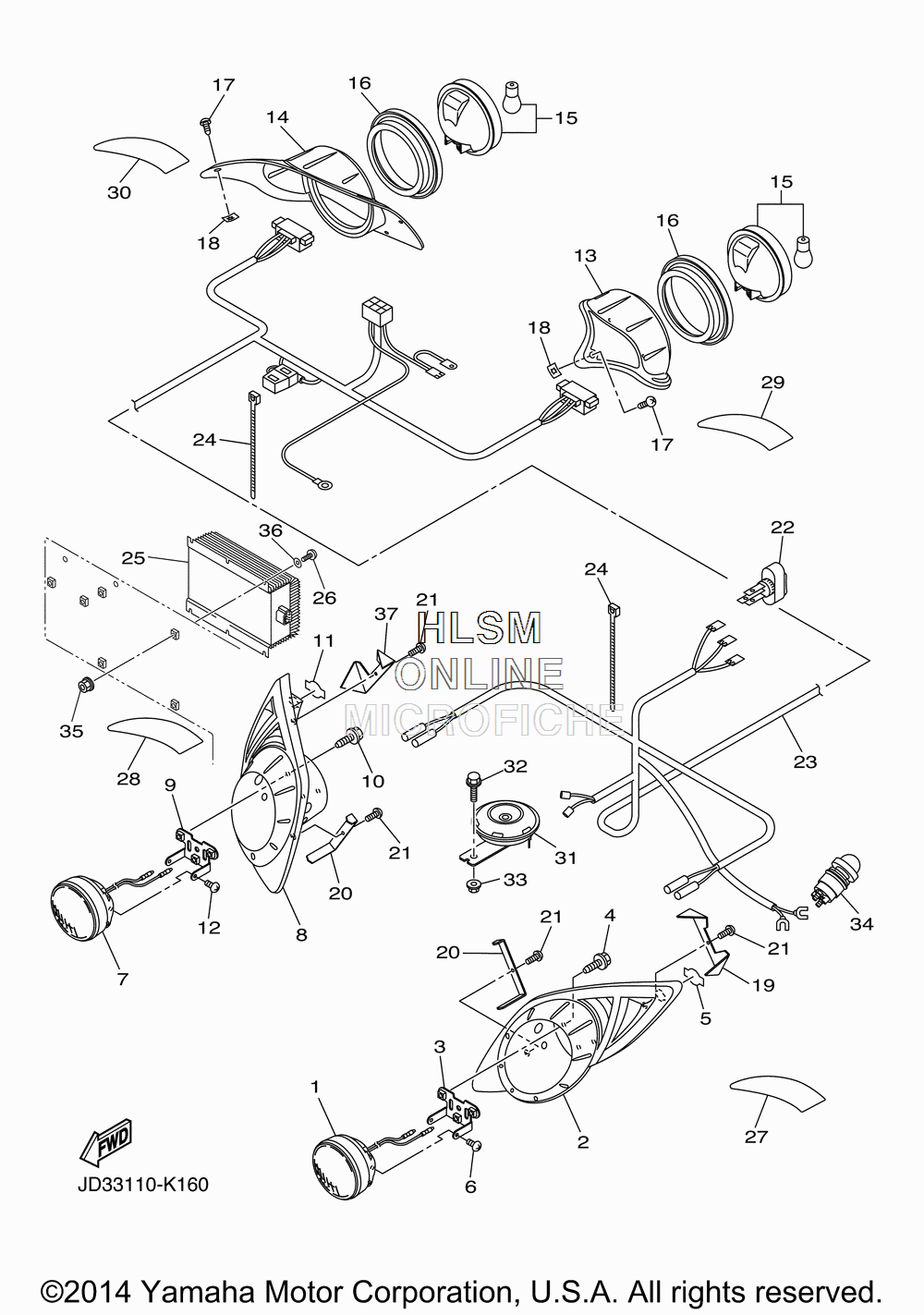

HEADLIGHT / TAIL LIGHT для Yamaha SPECIALTY VEHICLE CONCIERGE 6 PASSENGER [YDREXSVL] (JD332) - 2013 года выпуска
-
№АртикулНазвание
-
1JW6-H4320-02-00 LENS ASSYLENS ASSY
-
2JW1-H411T-00-00 HOLDER, 1HOLDER, 1
-
3JW1-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
490119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
698502-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
7JW6-H4320-02-00 LENS ASSYLENS ASSY
-
8JW1-H411U-00-00 HOLDER, 2HOLDER, 2
-
9JW1-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
1090119-06884-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11JU7-H3547-10-00 COVER, SOCKETCOVER, SOCKET
-
1298502-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
13JW1-H431U-10-00 HOLDERHOLDER
-
14JW1-H4387-10-00 HOLDERHOLDER
-
15JW1-H4514-00-00 BULBBULB
-
16JW1-H4718-00-00 GROMMETGROMMET
-
17JW1-H4192-00-00 SCREW, SPECIALSCREW, SPECIAL
-
18JW1-H4548-00-00 NUT, SPECIALNUT, SPECIAL
-
19JW1-H431R-00-00 STAY, SETTINGSTAY, SETTING
-
20JW1-H4119-00-00 STAY, HEADLIGHT 2STAY, HEADLIGHT 2
-
2197707-40112-00 SCREW, TAPPINGSCREW, TAPPING
-
22JU0-H3976-00-00 SWITCH, HANDLE 1SWITCH, HANDLE 1
-
23JD3-H4159-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
2490464-14806-00 CLAMPCLAMP
-
25JU6-H1910-00-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
2690111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
27JC0-H333B-10-00 REFLECTOR 1REFLECTOR 1
-
28JC0-H334B-10-00 REFLECTOR, 2REFLECTOR, 2
-
29JC0-H360G-10-00 REFLECTOR 3REFLECTOR 3
-
30JC0-H360H-10-00 REFLECTOR 4REFLECTOR 4
-
314LR-83371-11-00 HORNHORN
-
3295822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3395702-06500-00 NUT, FLANGENUT, FLANGE
-
34JR6-H270X-00-00 SWITCHSWITCH
-
3590179-05807-00 NUTNUT
-
3690201-05824-00 WASHER, PLATEWASHER, PLATE
-
37JW1-H431T-00-00 STAY 2STAY 2
