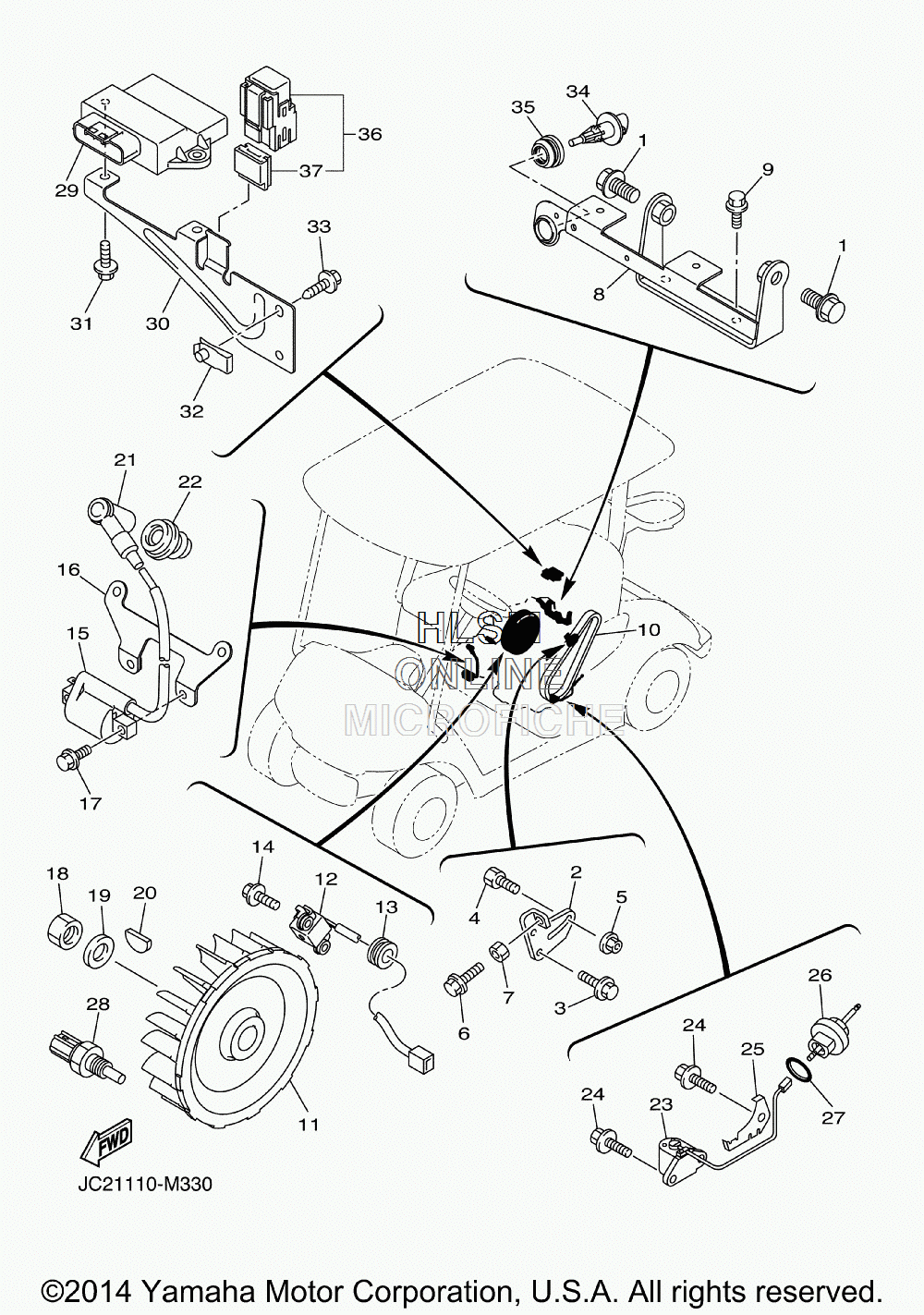

ELECTRICAL для Yamaha GOLF CAR GAS [DRIVE YDRAX3F] (JC21) - 2013 года выпуска`
-
№АртикулНазвание
-
195812-12030-00 BOLT, FLANGEBOLT, FLANGE
-
2JW1-H1170-11-00 TENSIONER ASSYTENSIONER ASSY
-
395822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
490109-08827-00 BOLTBOLT
-
595702-08500-00 NUT, FLANGENUT, FLANGE
-
690101-06478-00 BOLTBOLT
-
795302-06600-00 NUTNUT
-
8JC0-H1171-00-00 BRACKET, STARTER GENERATORBRACKET, STARTER GENERATOR
-
995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
10JW1-H1173-00-00 BELTBELT
-
11JC0-85650-00-00 ROTOR ASSYROTOR ASSY
-
12JC0-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
1390480-20564-00 GROMMETGROMMET
-
1495822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
151S4-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
16JC0-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
1795822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1895302-18600-00 NUTNUT
-
1990201-18620-00 WASHER, PLATEWASHER, PLATE
-
2090280-04052-00 KEY, WOODRUFFKEY, WOODRUFF
-
21JN6-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
22JE8-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
23JT0-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
2495822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
25JT0-85724-00-00 CLAMPCLAMP
-
26JT0-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2793210-15414-00 O-RINGO-RING
-
284P9-83591-00-00 THERMO UNITTHERMO UNIT
-
29JC0-8591A-01-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
30JC0-F253B-00-00 STAY, RELAYSTAY, RELAY
-
3190119-06156-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290183-06811-00 NUT, SPRINGNUT, SPRING
-
33JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
345CA-85886-00-00 SENSOR, AIR TEMPRATURESENSOR, AIR TEMPRATURE
-
355CA-14435-00-00 GROMMETGROMMET
-
365EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
375EA-81952-00-00 HOLDER, RELAYHOLDER, RELAY
