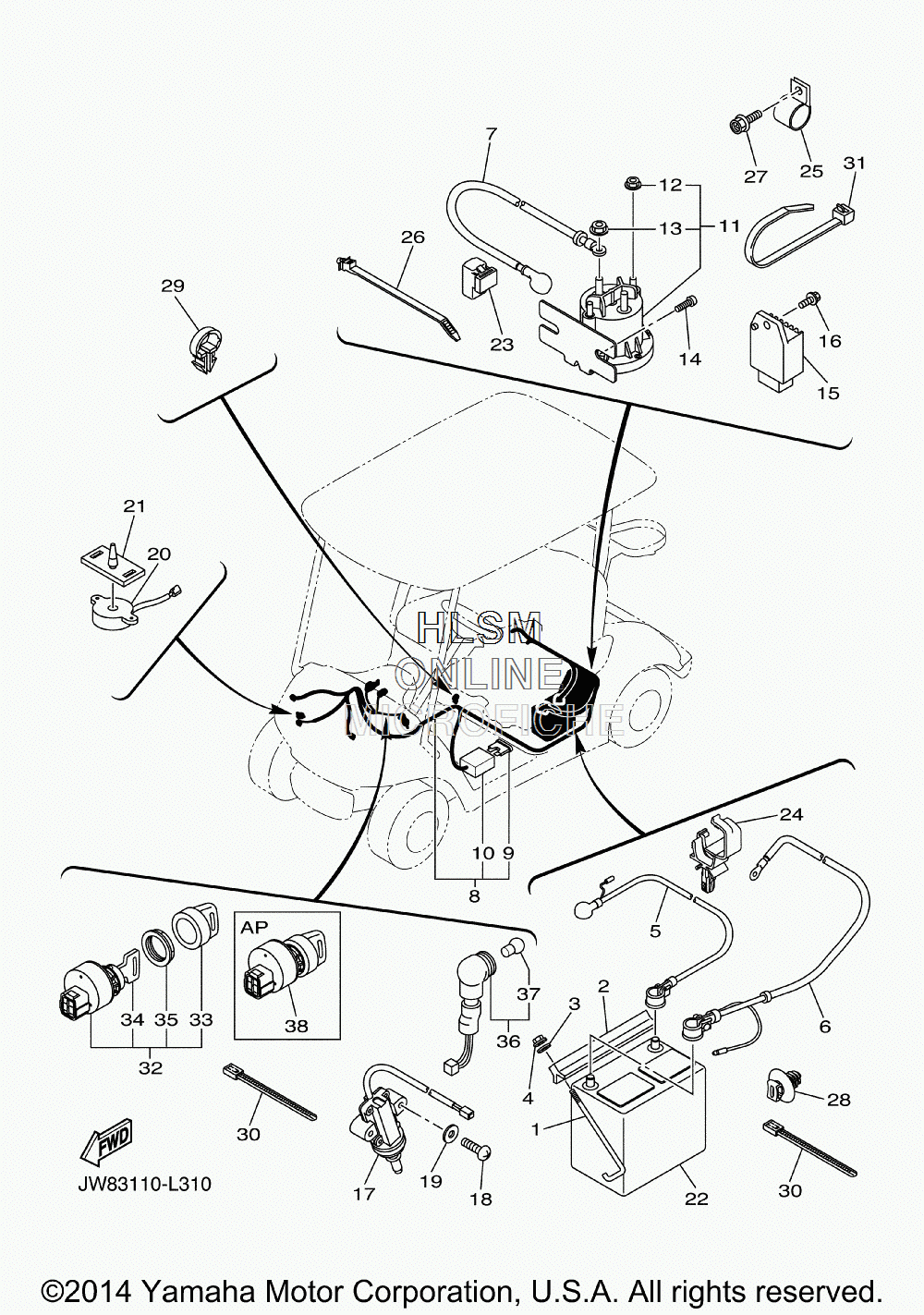

ELECTRICAL 2 для Yamaha GOLF CAR GAS [DRIVE YDRAX3] (JW84) - 2013 года выпуска`
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392902-06200-00 WASHERWASHER
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
5JW1-H2115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW1-H2116-02-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JW1-H2117-00-00 WIRE, LEADWIRE, LEAD
-
8JW8-H2590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
942X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
10JR1-H2150-00-00 ...FUSE HOLDER ASSY...FUSE HOLDER ASSY
-
11JW1-H1950-00-00 RELAY ASSYRELAY ASSY
-
1290179-05807-00 ...NUT...NUT
-
1390179-08824-00 ...NUT...NUT
-
1490105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
15JF2-81910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1690105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
17JF7-82817-22-00 SWITCHSWITCH
-
1898502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992902-05600-00 WASHER, PLATEWASHER, PLATE
-
20JR1-H3383-02-00 BUZZERBUZZER
-
21JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
234U8-81950-02-00 RELAY ASSY (4U8-02)RELAY ASSY (4U8-02)
-
2490464-20237-00 CLAMPCLAMP
-
2590461-14108-00 CLAMPCLAMP
-
2690464-09823-00 CLAMPCLAMP
-
2790105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
285UG-F2465-10-00 HOLDERHOLDER
-
2990464-19815-00 CLAMPCLAMP
-
3090464-40825-00 CLAMPCLAMP
-
3190464-76800-00 CLAMPCLAMP
-
32JW1-H2510-00-00 MAIN SWITCH ASSY (STD)MAIN SWITCH ASSY (STD)
-
335UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
34JU2-H2511-00-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
35JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
36JN6-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
37123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
38JU2-H2510-20-00 MAIN SWITCH ASSY (OPT) (RANDOM E KEY)MAIN SWITCH ASSY (OPT) (RANDOM E KEY)
