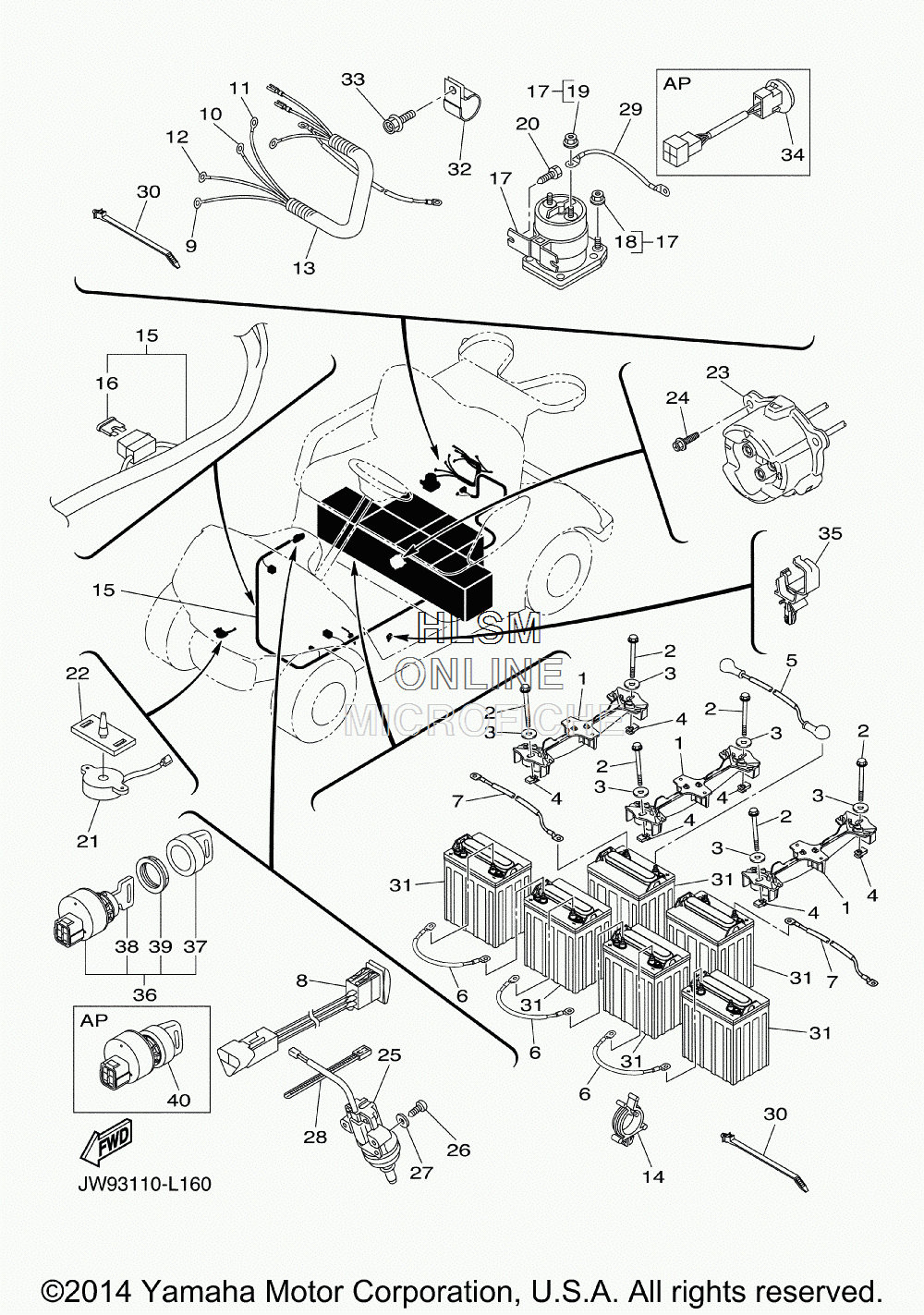

ELECTRICAL для Yamaha GOLF CAR ELECTRIC [DRIVE YDREX3] (JW94) - 2013 года выпуска
-
№АртикулНазвание
-
1JW9-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
2JW9-H1892-00-00 BOLT, SPECIALBOLT, SPECIAL
-
390201-08310-00 WASHER, PLATEWASHER, PLATE
-
4JW9-K811K-00-00 NUT, TRIM FITTINGNUT, TRIM FITTING
-
5JW9-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW9-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
7JW9-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
8JU2-H2917-00-00 SWITCHSWITCH
-
9JU2-H2521-20-00 WIRE, LEAD (F1)WIRE, LEAD (F1)
-
10JU2-H2531-20-00 WIRE, LEAD (F2)WIRE, LEAD (F2)
-
11JU2-H6171-20-00 WIRE, LEAD 1 (A1)WIRE, LEAD 1 (A1)
-
12JW9-H6172-00-00 WIRE, LEAD 2 (A2)WIRE, LEAD 2 (A2)
-
13JU2-H7196-20-00 TUBE 1TUBE 1
-
1490464-25826-00 CLAMPCLAMP
-
15JW9-H2590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
16JR1-H2151-00-00 ...FUSE (3A)...FUSE (3A)
-
17JU6-H1950-00-00 RELAY ASSYRELAY ASSY
-
1890179-08887-00 ...NUT...NUT
-
1990179-05886-00 ...NUT...NUT
-
2090105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
21JR1-H3383-02-00 BUZZERBUZZER
-
22JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
23JW9-H6181-00-00 RECEPTACLERECEPTACLE
-
24JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
25JF7-82817-22-00 SWITCHSWITCH
-
2698502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2792902-05600-00 WASHER, PLATEWASHER, PLATE
-
2890464-40825-00 CLAMPCLAMP
-
29JW2-H6527-00-00 WIRE 7WIRE 7
-
3090464-20005-00 CLAMPCLAMP
-
3290461-14108-00 CLAMPCLAMP
-
3390105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
34JU2-HA2F0-00-00 TRANSMITTER UNIT (OPT)TRANSMITTER UNIT (OPT)
-
3590464-20237-00 CLAMPCLAMP
-
36JW1-H2510-00-00 MAIN SWITCH ASSY (STD)MAIN SWITCH ASSY (STD)
-
375UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
38JU2-H2511-00-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
39JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
40JU2-H2510-20-00 MAIN SWITCH ASSY (OPT) (RANDOM KEY)MAIN SWITCH ASSY (OPT) (RANDOM KEY)
