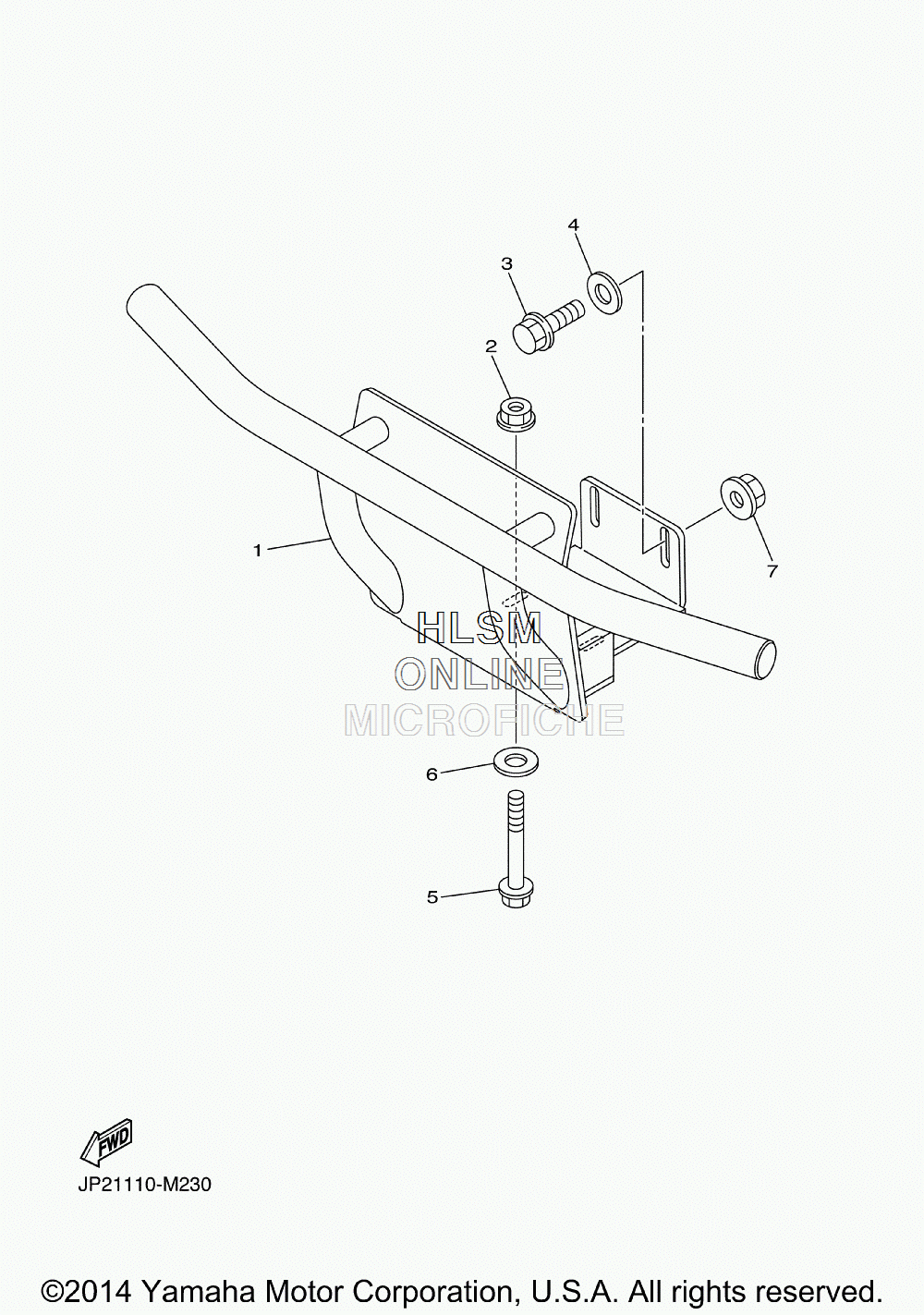

BUMPER для Yamaha ADVENTURER SPORT [YTF1AX3] (JP21) - 2013 года выпуска`
-
№АртикулНазвание
-
1JP0-K7511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
290185-08169-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
395817-10030-00 BOLT, FLANGEBOLT, FLANGE
-
4JP0-F3444-00-00 WASHERWASHER
-
595817-08055-00 BOLT, FLANGEBOLT, FLANGE
-
692902-08200-00 WASHERWASHER
-
795602-10200-00 NUT, U FLANGENUT, U FLANGE
