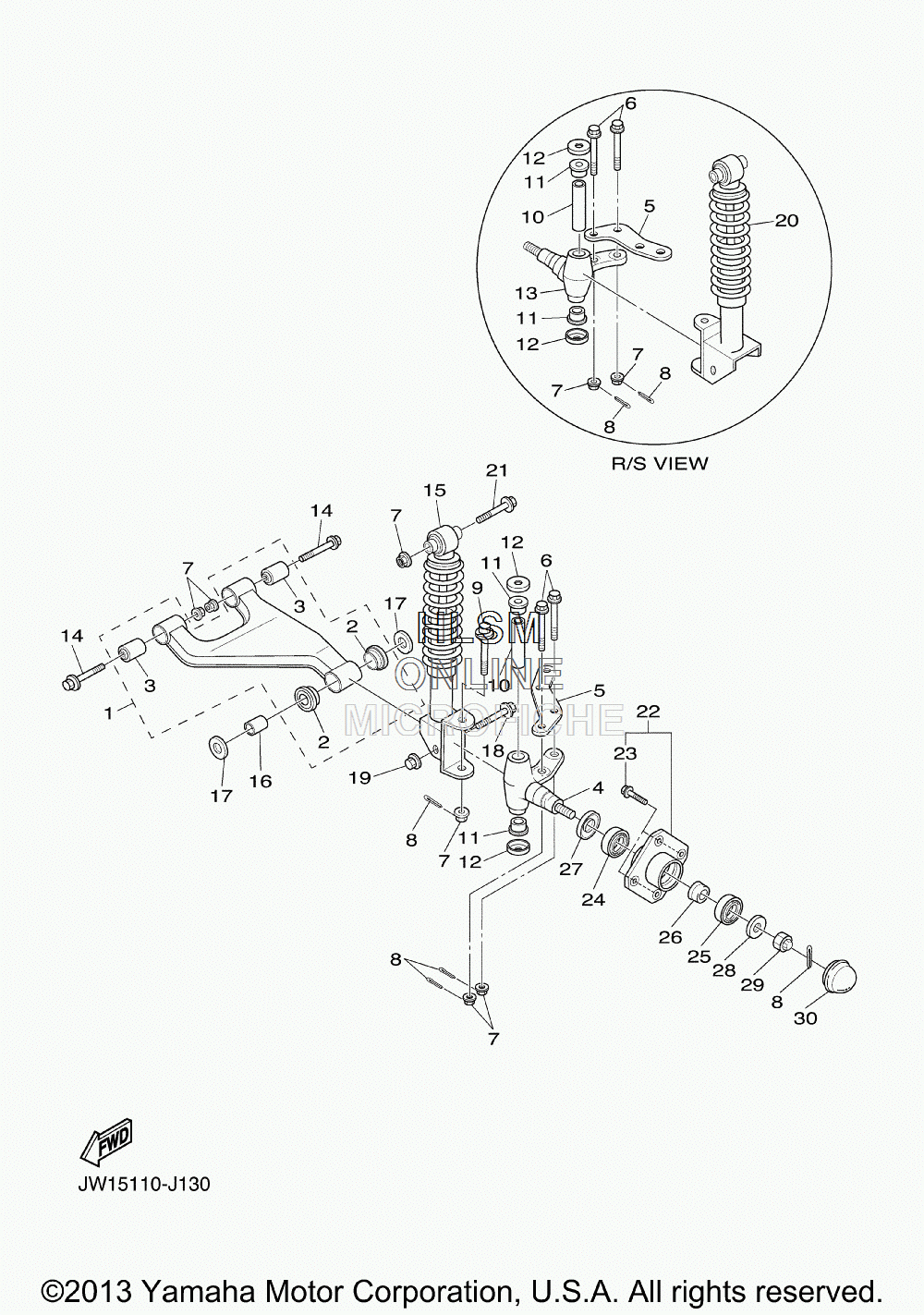

FRONT SUSPENSION для Yamaha ADVENTURER [YTF1X2] (JW65) - 2012 года выпуска
-
№АртикулНазвание
-
1JU0-F3570-20-00 FRONT LOWER ARM COMP.FRONT LOWER ARM COMP.
-
290381-18001-00 ...BUSH, SOLID...BUSH, SOLID
-
32HR-23526-00-00 ...BUSH...BUSH
-
4JU0-F3511-10-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
5JW1-F3512-00-00 ARM, KNUCKLE 1ARM, KNUCKLE 1
-
690105-10728-00 BOLT, FLANGEBOLT, FLANGE
-
795602-10200-00 NUT, U FLANGENUT, U FLANGE
-
891402-25020-00 PIN, COTTERPIN, COTTER
-
990105-10064-00 BOLT, FLANGEBOLT, FLANGE
-
102NL-23448-00-00 SPACERSPACER
-
1190381-17067-00 BUSH, SOLIDBUSH, SOLID
-
122NL-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
13JU0-F3521-10-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
1490105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
15JW2-F3350-00-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1690387-12016-00 COLLARCOLLAR
-
17401-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
1895812-12080-00 BOLT, FLANGEBOLT, FLANGE
-
1995612-12100-00 NUT, UNUT, U
-
20JW2-F3390-00-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
2190105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
22JG5-WF511-10-00 HUB, FRONTHUB, FRONT
-
2390114-12806-00 ...BOLT, SERRATION...BOLT, SERRATION
-
2493306-204X0-00 BEARINGBEARING
-
2593306-005Y3-00 BEARINGBEARING
-
2690387-241M7-00 COLLARCOLLAR
-
2793102-30083-00 OIL SEALOIL SEAL
-
2890208-14801-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2995602-14100-00 NUT, UNUT, U
-
30JN6-F5118-01-00 COVER, HUB DUSTCOVER, HUB DUST
