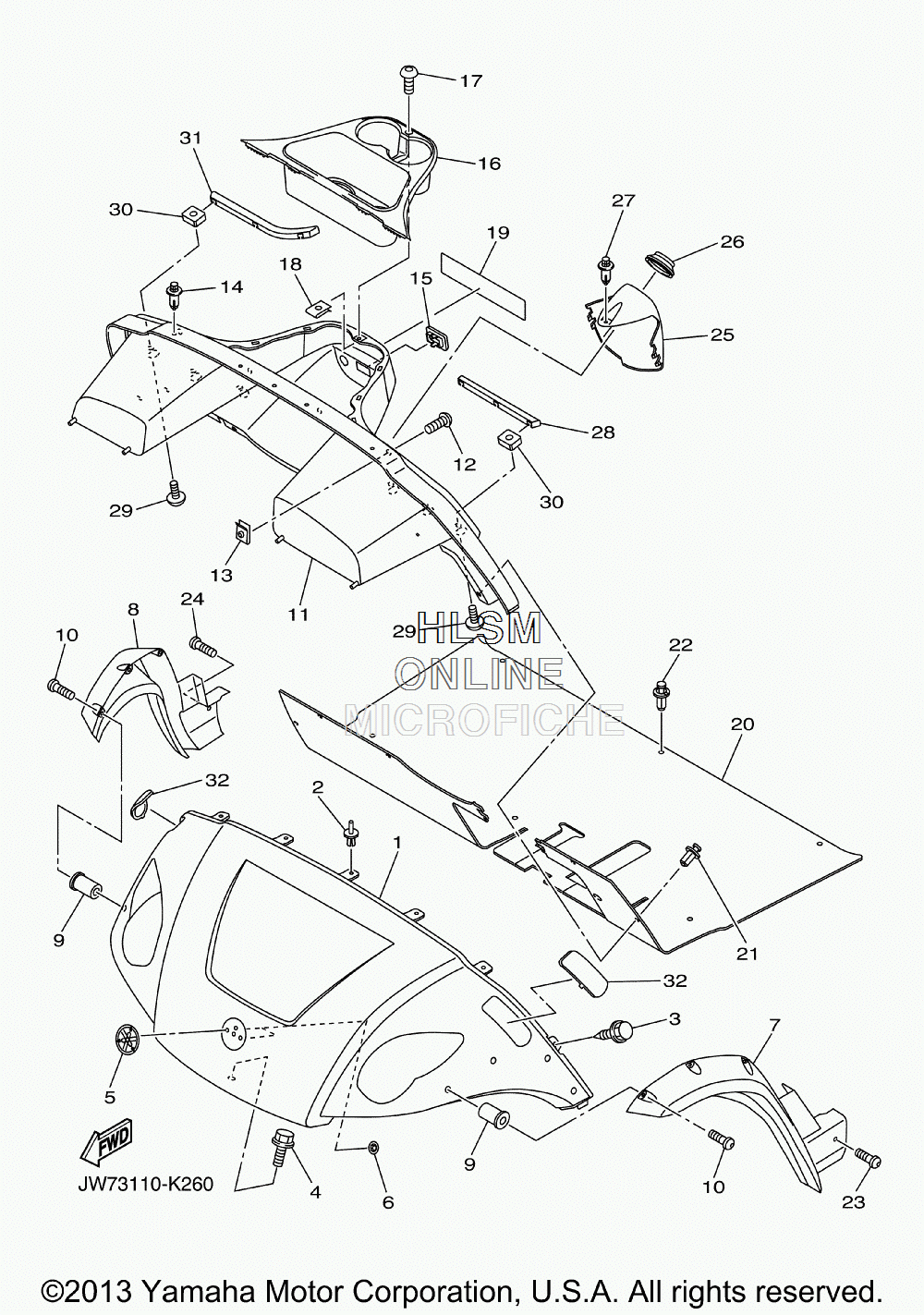

BODY - FRONT для Yamaha GOLF CAR [YTF2X] (JW73) - 2011 года выпуска
-
№АртикулНазвание
-
1JW7-K8115-10-00 COWL, FRONTCOWL, FRONT
-
290267-63047-00 RIVET, BLINDRIVET, BLIND
-
3JW1-F3396-00-00 SCREW, SPECIALSCREW, SPECIAL
-
490105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
5JW1-F4161-10-00 EMBLEM 1EMBLEM 1
-
690183-06071-00 NUT, SPRINGNUT, SPRING
-
7JW7-F1551-00-00 FENDER, OVERFENDER, OVER
-
8JW7-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
990179-05523-00 NUTNUT
-
1098902-05020-00 SCREW, BINDSCREW, BIND
-
11JW1-K8114-01-00 PANEL, FRONTPANEL, FRONT
-
1290111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1390183-05008-00 NUT, SPRINGNUT, SPRING
-
1490269-07001-00 RIVETRIVET
-
15JW1-F312G-00-00 PLUGPLUG
-
16JW6-K835E-00-00 HOLDER, BEVERAGEHOLDER, BEVERAGE
-
1790111-05805-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1890183-05008-00 NUT, SPRINGNUT, SPRING
-
19JW7-K7768-00-00 LABEL, WARNINGLABEL, WARNING
-
20JW7-K8233-01-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
2190269-09003-00 RIVETRIVET
-
2290269-09003-00 RIVETRIVET
-
2398902-08040-00 SCREW, BINDSCREW, BIND
-
2498902-08040-00 SCREW, BINDSCREW, BIND
-
25JW1-K8273-00-00 COVER, HOLECOVER, HOLE
-
26JW1-K8245-00-00 SEAL 1SEAL 1
-
2790269-06804-00 RIVETRIVET
-
28JW1-K8261-00-00 PLATE, BODY PROTECT 1PLATE, BODY PROTECT 1
-
2990110-06007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3090173-06001-00 NUT, SQUARENUT, SQUARE
-
31JW1-K8262-00-00 PLATE, BODY PROTECT 2PLATE, BODY PROTECT 2
-
32JW1-K832H-00-00 GROMMET, ROOF SUPPORT 3GROMMET, ROOF SUPPORT 3
