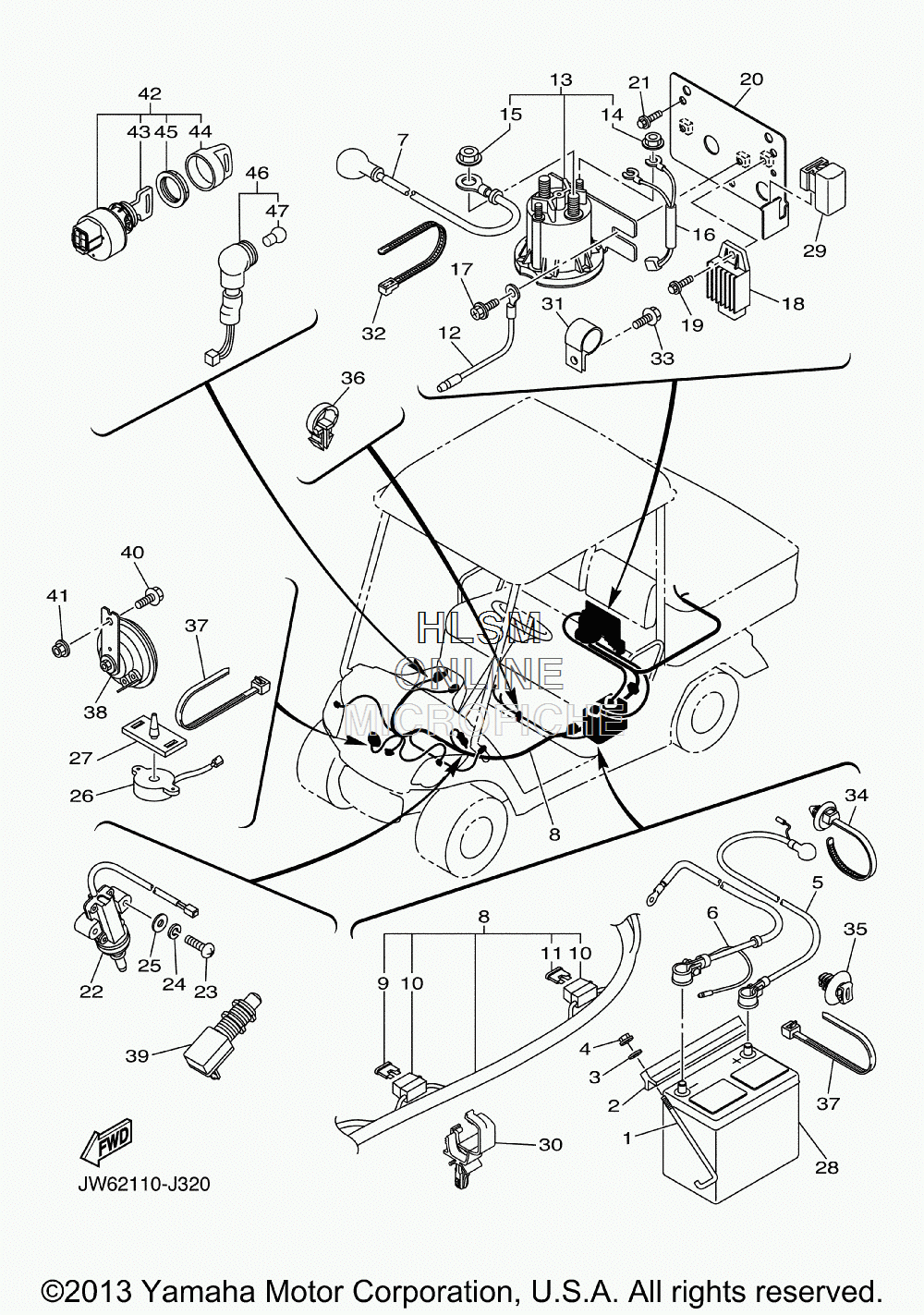

ELECTRICAL 2 для Yamaha GOLF CAR [YTF1XP] (JW64) - 2011 года выпуска
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392902-06200-00 WASHERWASHER
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
5JW1-H2115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW1-H2116-01-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JW1-H2117-00-00 WIRE, LEADWIRE, LEAD
-
8JW6-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
9JW6-H2151-00-00 ...FUSE (15A)...FUSE (15A)
-
10JR1-H2150-00-00 ...FUSE HOLDER ASSY...FUSE HOLDER ASSY
-
11JW7-H2151-00-00 ...FUSE (25A)...FUSE (25A)
-
12JW6-H232Y-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
13JW1-H1950-00-00 RELAY ASSY (684-1271-012)RELAY ASSY (684-1271-012)
-
1490179-05807-00 ...NUT...NUT
-
1590179-08824-00 ...NUT...NUT
-
16JN6-H2105-00-00 WIRE HARNESSWIRE HARNESS
-
1790163-06005-00 SCREW, TAPPINGSCREW, TAPPING
-
18JF2-81910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1990105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
20JW6-F253B-01-00 STAY, RELAYSTAY, RELAY
-
2190105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
22JF7-82817-20-00 SWITCHSWITCH
-
2398502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2492902-05100-00 WASHER, SPRINGWASHER, SPRING
-
2592902-05600-00 WASHER, PLATEWASHER, PLATE
-
26JR1-H3383-02-00 BUZZERBUZZER
-
27JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
294U8-81950-02-00 RELAY ASSY (4U8-02)RELAY ASSY (4U8-02)
-
3090464-20237-00 CLAMPCLAMP
-
3190461-14108-00 CLAMPCLAMP
-
3290464-09823-00 CLAMPCLAMP
-
3390105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
3490464-20005-00 CLAMPCLAMP
-
355UG-F2465-10-00 HOLDERHOLDER
-
3690464-19815-00 CLAMPCLAMP
-
3790464-48800-00 CLAMPCLAMP
-
384LR-83371-11-00 HORNHORN
-
39JR6-H270X-00-00 SWITCHSWITCH
-
4095822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4195702-06500-00 NUT, FLANGENUT, FLANGE
-
42JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
43JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
445UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
45JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
46JN6-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
47123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
