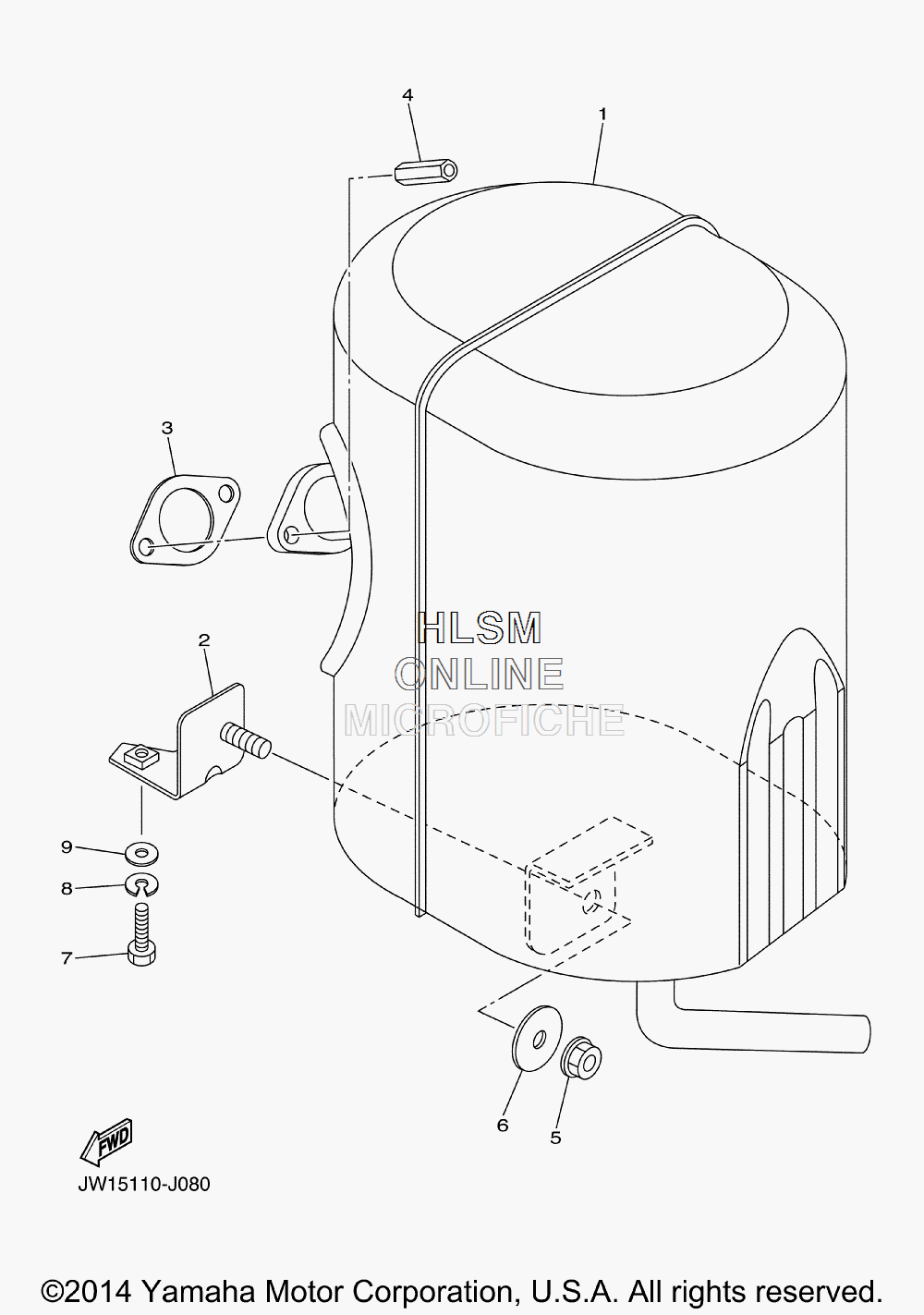

EXHAUST для Yamaha GOLF CAR GAS [DRIVE YDRAXPTV] (JC02) - 2011 года выпуска`
-
№АртикулНазвание
-
1JW1-E4710-20-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
2JU0-F1436-00-00 BRKT., MUFF. 2BRKT., MUFF. 2
-
37KY-14613-01-00 GASKET, EXHAUST 1GASKET, EXHAUST 1
-
4JW1-E4713-00-00 NUT, MUFFLER JOINTNUT, MUFFLER JOINT
-
595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690201-080E4-00 WASHER, PLATEWASHER, PLATE
-
797017-08025-00 BOLTBOLT
-
892907-08100-00 WASHER, SPRINGWASHER, SPRING
-
992990-08600-00 .WASHER, PLATE.WASHER, PLATE
