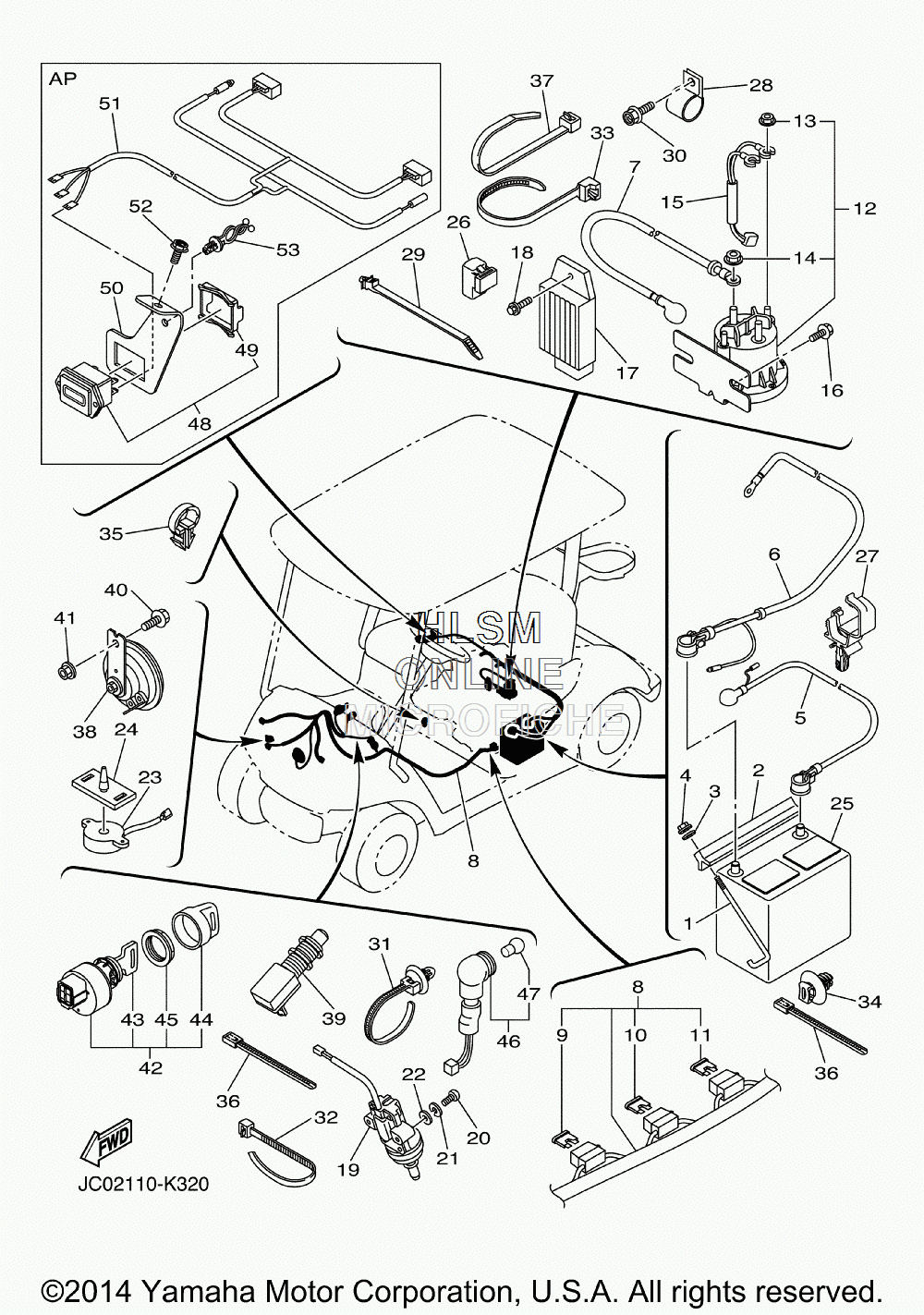

ELECTRICAL 2 для Yamaha GOLF CAR GAS [DRIVE YDRAXPPTV] (JC03) - 2011 года выпуска`
-
№АртикулНазвание
-
1JW1-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392902-06200-00 WASHERWASHER
-
495702-06500-00 NUT, FLANGENUT, FLANGE
-
5JW1-H2115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW1-H2116-01-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
7JW1-H2117-00-00 WIRE, LEADWIRE, LEAD
-
8JC0-H2590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
9JW7-H2151-00-00 ...FUSE (25A)...FUSE (25A)
-
10JN6-H2151-00-00 ...FUSE (10 A)...FUSE (10 A)
-
11JW6-H2151-00-00 ...FUSE (15A)...FUSE (15A)
-
12JW1-H1950-00-00 RELAY ASSYRELAY ASSY
-
1390179-05807-00 ...NUT...NUT
-
1490179-08824-00 ...NUT...NUT
-
15JN6-H2105-00-00 WIRE HARNESSWIRE HARNESS
-
1690105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
17JF2-81910-10-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
1890105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
19JF7-82817-20-00 SWITCHSWITCH
-
2098502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2192902-05100-00 WASHER, SPRINGWASHER, SPRING
-
2292902-05600-00 WASHER, PLATEWASHER, PLATE
-
23JR1-H3383-02-00 BUZZERBUZZER
-
24JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
264U8-81950-02-00 RELAY ASSY (4U8-02)RELAY ASSY (4U8-02)
-
2790464-20237-00 CLAMPCLAMP
-
2890461-14108-00 CLAMPCLAMP
-
2990464-09823-00 CLAMPCLAMP
-
3090105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
3190464-20005-00 CLAMPCLAMP
-
3290464-48800-00 CLAMPCLAMP
-
3390464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
345UG-F2465-10-00 HOLDERHOLDER
-
3590464-19815-00 CLAMPCLAMP
-
3690464-40825-00 CLAMPCLAMP
-
3790464-76800-00 CLAMPCLAMP
-
384LR-83371-11-00 HORNHORN
-
39JR6-H270X-00-00 SWITCHSWITCH
-
4095822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4195702-06500-00 NUT, FLANGENUT, FLANGE
-
42JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
43JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
445UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
45JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
46JN6-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
47123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
48JN6-H351C-00-00 HOUR METER (OPT)HOUR METER (OPT)
-
49JW1-H1128-00-00 ...CLAMP (OPT)...CLAMP (OPT)
-
50JW1-F4881-00-00 BRKT., METER (OPT)BRKT., METER (OPT)
-
51JW1-H2386-00-00 EXTENSION, WIRE HARNESS (OPT)EXTENSION, WIRE HARNESS (OPT)
-
5290105-06831-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
5390464-12836-00 CLAMP (OPT)CLAMP (OPT)
