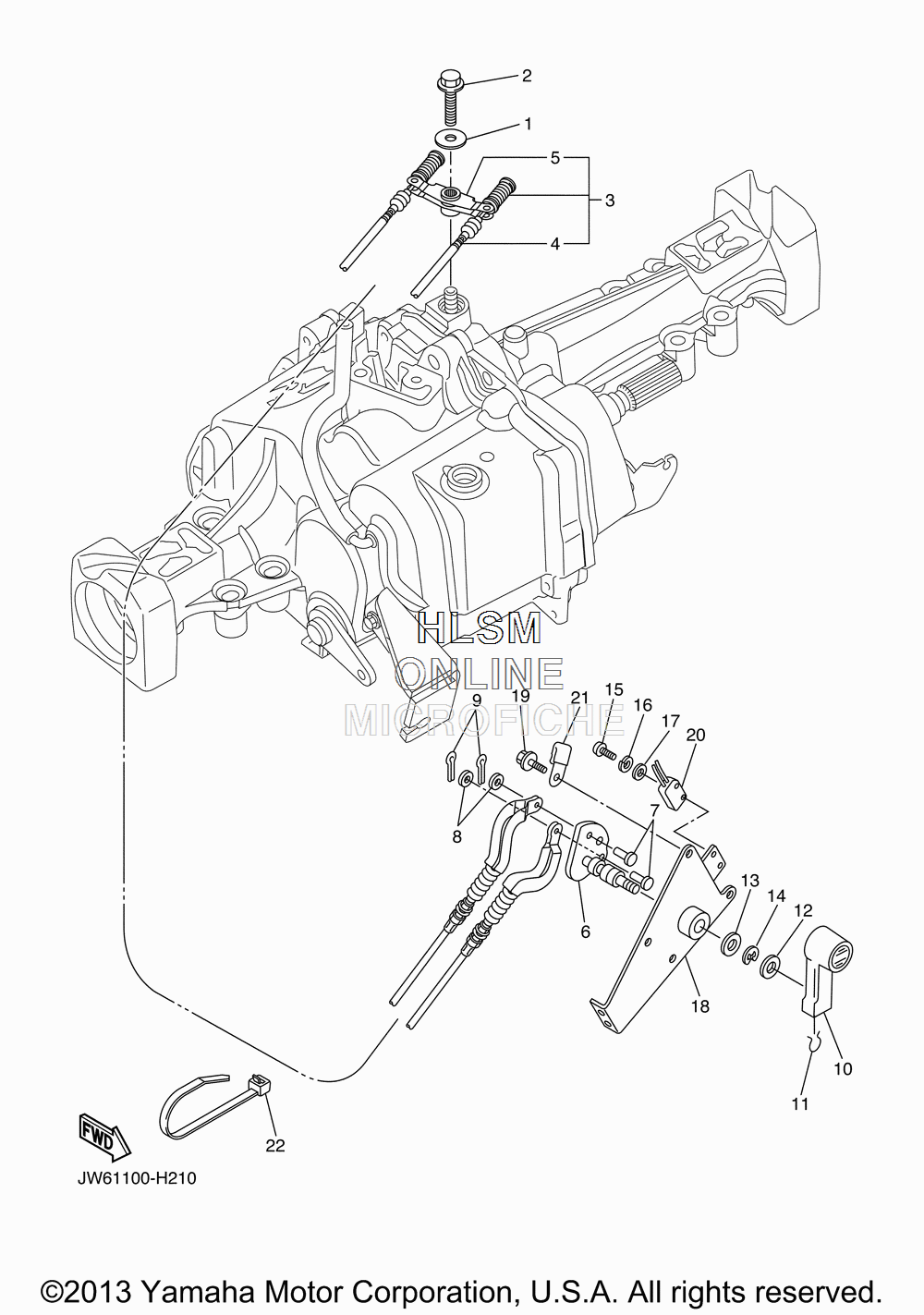

SHIFTER CABLES для Yamaha GOLF CAR [YTF1P] (JW62) - 2010 года выпуска`
-
№АртикулНазвание
-
190201-05800-00 WASHER, PLATEWASHER, PLATE
-
290105-05005-00 BOLT, FLANGEBOLT, FLANGE
-
3JW1-G8330-01-00 CABLE END ASSYCABLE END ASSY
-
4JW1-G6371-01-00 ...WIRE, SHIFT...WIRE, SHIFT
-
5JW1-G6383-01-00 ...LEVER, SHIFT 2...LEVER, SHIFT 2
-
6JF2-46382-00-00 LEVER, SHIFT 1LEVER, SHIFT 1
-
791701-06014-00 PINPIN
-
892902-06600-00 WASHER, PLATEWASHER, PLATE
-
991401-20012-00 PIN, COTTERPIN, COTTER
-
10JN3-G6381-00-00 KNOB, SHIFTKNOB, SHIFT
-
11JN3-G6376-00-00 SPRING SETSPRING SET
-
1290201-208S8-00 WASHER, PLATEWASHER, PLATE
-
1390201-198S7-00 WASHER, PLATEWASHER, PLATE
-
1499009-19400-00 CIRCLIPCIRCLIP
-
1598502-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1792902-04600-00 WASHER, PLATEWASHER, PLATE
-
18JN3-G6372-00-00 BRACKET, SHIFT WIREBRACKET, SHIFT WIRE
-
1990105-06870-00 BOLT, FLANGEBOLT, FLANGE
-
20JN3-82617-01-00 SWITCHSWITCH
-
2190465-06038-00 CLAMPCLAMP
-
2290464-76800-00 .CLAMP.CLAMP
