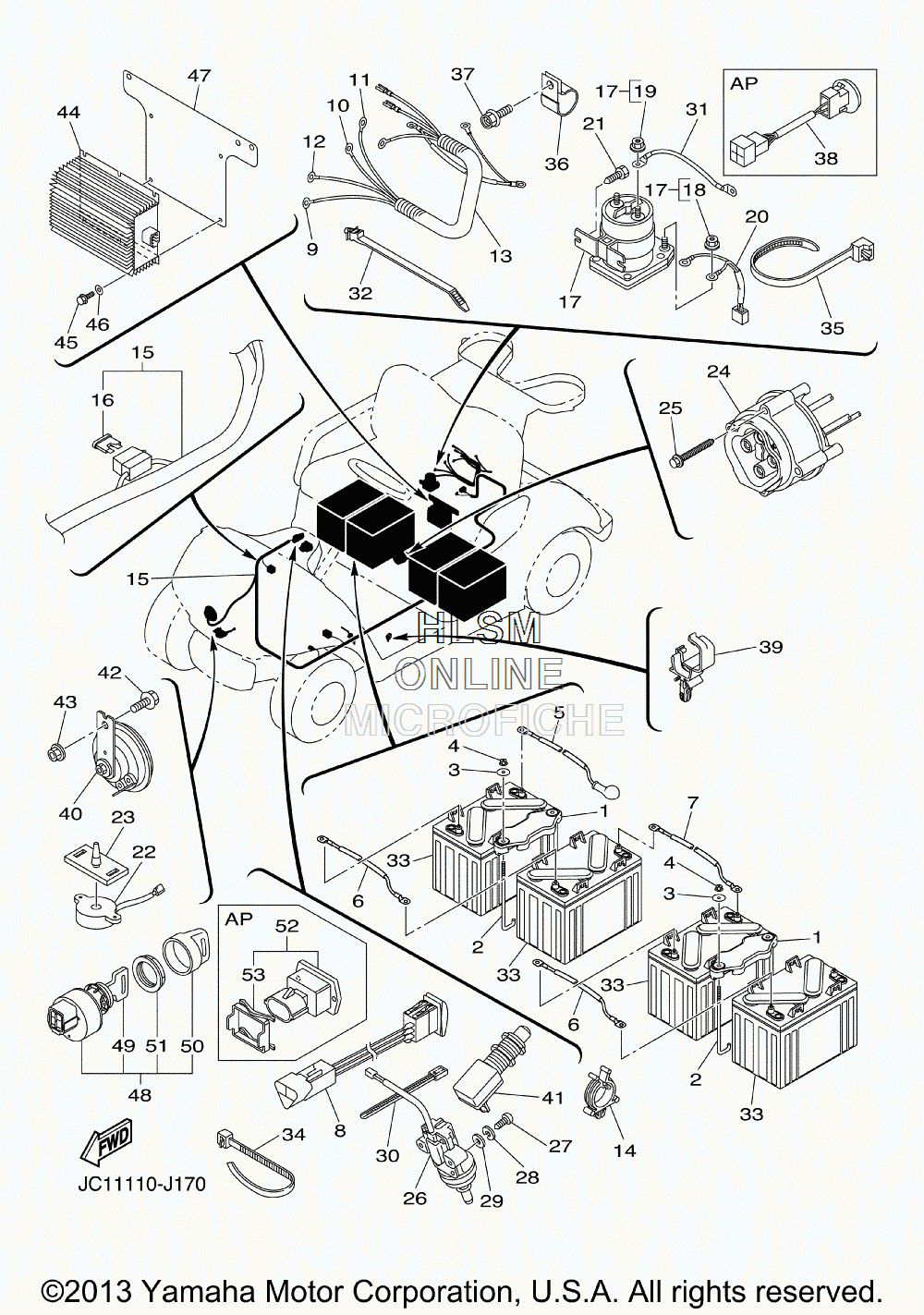

ELECTRICAL для Yamaha GOLF CAR [YDRE3PTV] (JW23) - 2010 года выпуска
-
№АртикулНазвание
-
1JW2-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
2JW2-H2133-00-00 SCREW, FITTINGSCREW, FITTING
-
390201-08310-00 WASHER, PLATEWASHER, PLATE
-
495702-08500-00 NUT, FLANGENUT, FLANGE
-
5JW2-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
6JW2-H2127-00-00 WIRE, LEAD 2WIRE, LEAD 2
-
7JW2-H2149-00-00 WIRE, LEAD 3WIRE, LEAD 3
-
8JU2-H2917-00-00 SWITCHSWITCH
-
9JU2-H2521-20-00 WIRE, LEAD (F1)WIRE, LEAD (F1)
-
10JU2-H2531-20-00 WIRE, LEAD (F2)WIRE, LEAD (F2)
-
11JU2-H6171-20-00 WIRE, LEAD 1 (A1)WIRE, LEAD 1 (A1)
-
12JW2-H6172-00-00 WIRE, LEAD 2 (A2)WIRE, LEAD 2 (A2)
-
13JU2-H7196-20-00 TUBE 1TUBE 1
-
1490464-25826-00 CLAMPCLAMP
-
15JC1-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
16JN6-H2151-00-00 ...FUSE (10 A)...FUSE (10 A)
-
17JU6-H1950-00-00 RELAY ASSYRELAY ASSY
-
1890179-05807-00 ...NUT...NUT
-
1990179-08824-00 ...NUT...NUT
-
20JN6-H2105-00-00 WIRE HARNESSWIRE HARNESS
-
2190163-06005-00 SCREW, TAPPINGSCREW, TAPPING
-
22JR1-H3383-01-00 BUZZERBUZZER
-
23JN6-H3386-01-00 STAY, BUZZERSTAY, BUZZER
-
24JW2-H6181-02-00 RECEPTACLERECEPTACLE
-
25JW2-F8382-10-00 SCREW, SPECIALSCREW, SPECIAL
-
26JF7-82817-20-00 SWITCHSWITCH
-
2798502-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2892902-05100-00 WASHER, SPRINGWASHER, SPRING
-
2992902-05600-00 WASHER, PLATEWASHER, PLATE
-
3090464-40825-00 CLAMPCLAMP
-
31JW2-H6527-00-00 WIRE 7WIRE 7
-
3290464-20005-00 CLAMPCLAMP
-
33JW2-H2110-00-00 BATTERY ASSY (12 VOLT T-1275)BATTERY ASSY (12 VOLT T-1275)
-
3490464-48800-00 CLAMPCLAMP
-
3590464-51800-00 CLAMPCLAMP
-
3690461-14108-00 CLAMPCLAMP
-
3790105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
38JU2-HA2F0-00-00 TRANSMITTER UNIT (OPT)TRANSMITTER UNIT (OPT)
-
3990464-20237-00 CLAMPCLAMP
-
404LR-83371-11-00 HORNHORN
-
41JR6-H270X-00-00 SWITCHSWITCH
-
4295822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4395702-06500-00 NUT, FLANGENUT, FLANGE
-
44JU6-H1910-00-00 VOLTAGE REGULATOR ASSYVOLTAGE REGULATOR ASSY
-
4597002-05010-00 BOLTBOLT
-
4692902-05600-00 WASHER, PLATEWASHER, PLATE
-
47JC1-F7876-00-00 BRKT.,SWITCHBRKT.,SWITCH
-
48JW6-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
49JU6-H2511-10-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
505UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
51JU6-H2569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
52JW2-H351B-00-00 GAUGE, BATTERY (OPT)GAUGE, BATTERY (OPT)
-
53JW1-H1128-00-00 ...CLAMP (OPT)...CLAMP (OPT)
