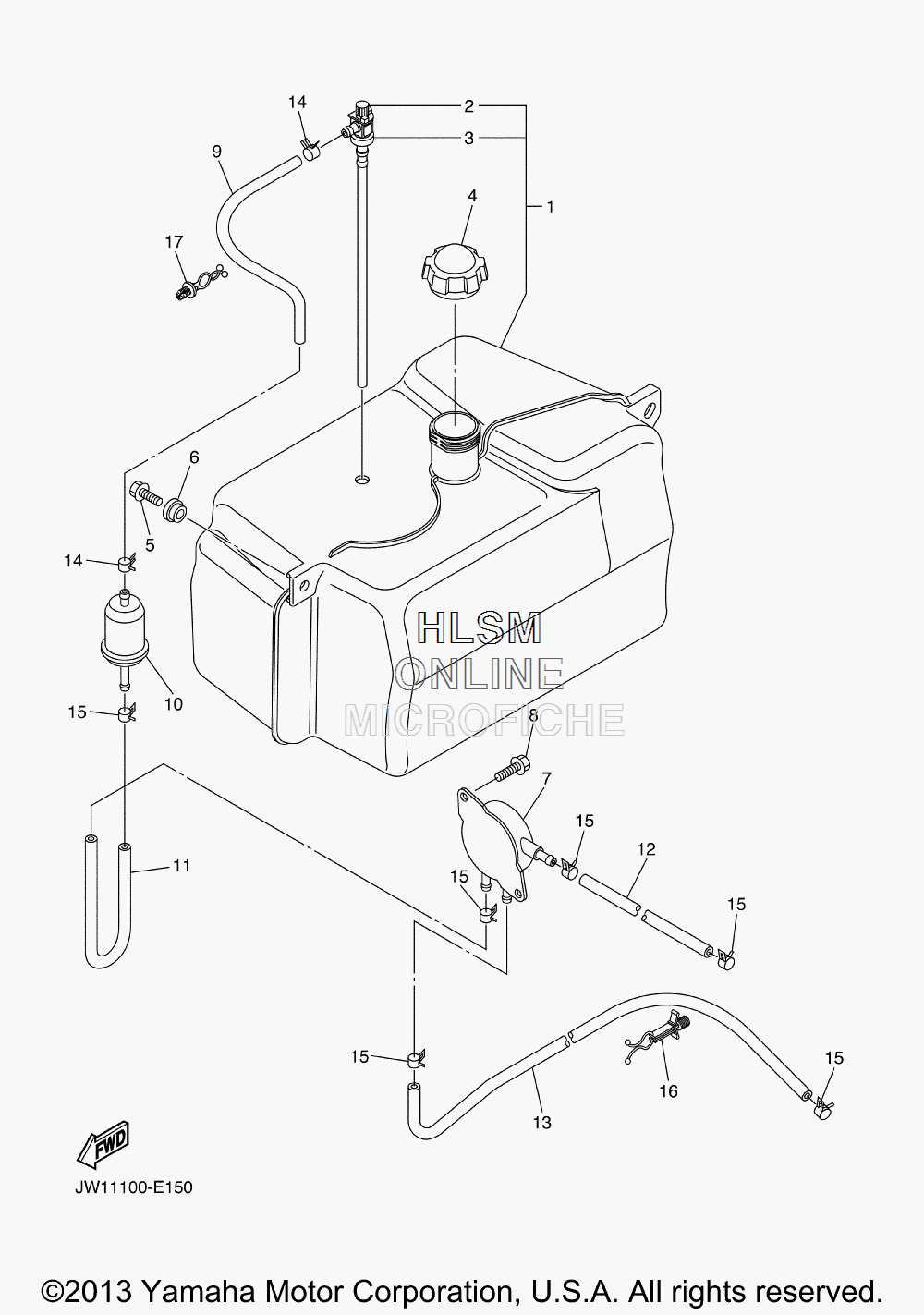

FUEL TANK для Yamaha GOLF CAR [YTF1] (JW61) - 2009 года выпуска`
-
№АртикулНазвание
-
1JW1-F4111-00-00 TANK, FUELTANK, FUEL
-
2JW1-F4300-00-00 ...FUEL PIPE JOINT...FUEL PIPE JOINT
-
3JU5-F4375-00-00 ...GROMMET...GROMMET
-
4JN6-F4610-00-00 CAP ASSYCAP ASSY
-
5JW1-F1738-00-00 BOLTBOLT
-
690560-08251-00 SPACERSPACER
-
7JN6-F4410-11-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
8JW1-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
9JW1-F4312-00-00 PIPE 2PIPE 2
-
10JN6-F4560-00-00 FILTER ASSYFILTER ASSY
-
11JW1-F4311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
12JW1-F4313-00-00 PIPE 3PIPE 3
-
13JW1-F4314-00-00 PIPE 4PIPE 4
-
1490467-12845-00 CLIPCLIP
-
1590467-10846-00 CLIPCLIP
-
16JW1-F1977-01-00 CLAMP, FUEL PIPECLAMP, FUEL PIPE
-
1790464-12836-00 CLAMPCLAMP
