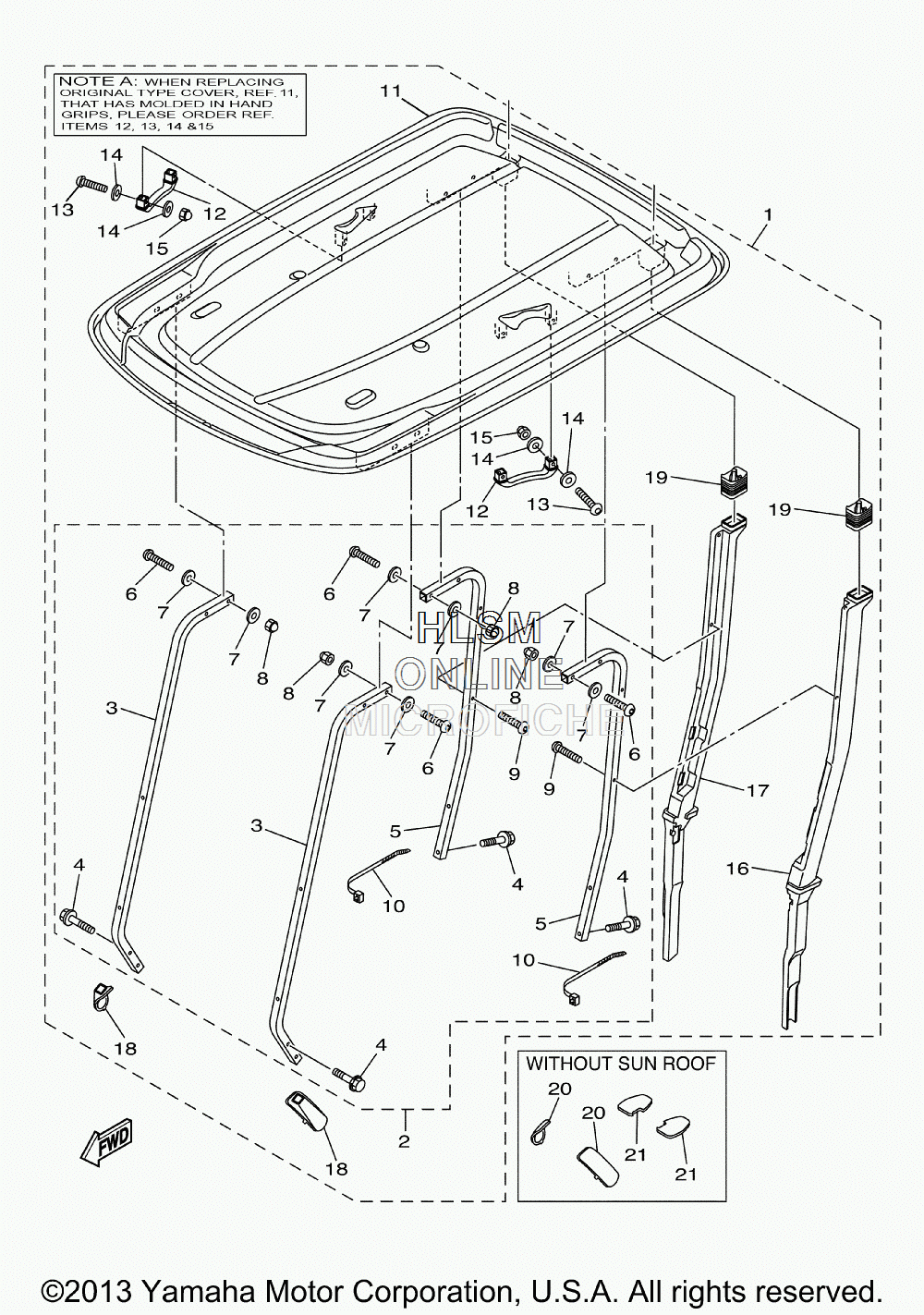

ALTERNATE FOR SUN ROOF для Yamaha GOLF CAR ELECTRIC [DRIVE YDRE2] (JW22) - 2009 года выпуска`
-
№АртикулНазвание
-
1JW1-K84A0-01-00 SUN TOP KITSUN TOP KIT
-
2JW1-K84A2-01-00 ...HARDWARE KIT, SUN TOP...HARDWARE KIT, SUN TOP
-
3JW1-K8312-00-00 ......SUPPORT, SUN ROOF 1......SUPPORT, SUN ROOF 1
-
4JW1-K8388-00-00 ......BOLT, ROOF 1......BOLT, ROOF 1
-
5JW1-K8313-01-00 ......SUPPORT, SUN ROOF 2......SUPPORT, SUN ROOF 2
-
6JU0-K8388-00-00 ......BOLT, ROOF 1......BOLT, ROOF 1
-
7JW1-F1549-00-00 ......WASHER, FENDER MOLD......WASHER, FENDER MOLD
-
8JU0-K8398-00-00 ......NUT, ROOF 1......NUT, ROOF 1
-
9JW1-K7387-00-00 ......SCREW......SCREW
-
1090464-76800-00 ......CLAMP......CLAMP
-
11JW1-K8314-10-00 ...COVER, SUN ROOF (SEE NOTE A)...COVER, SUN ROOF (SEE NOTE A)
-
12JW1-K8214-00-00 ...GRIP, HAND (FOR NEW TYPE COVER)...GRIP, HAND (FOR NEW TYPE COVER)
-
13JU0-K8388-00-00 ...BOLT, ROOF 1 (FOR NEW TYPE COVER)...BOLT, ROOF 1 (FOR NEW TYPE COVER)
-
14JW1-F1549-00-00 ...WASHER, FENDER MOLD (FOR NEW TYPE COVER)...WASHER, FENDER MOLD (FOR NEW TYPE COVER)
-
15JU0-K8398-00-00 ...NUT, ROOF 1 (FOR NEW TYPE COVER)...NUT, ROOF 1 (FOR NEW TYPE COVER)
-
16JW1-F413G-00-00 ...TUBE, DRAIN...TUBE, DRAIN
-
17JW1-F413J-00-00 ...TUBE, DRAIN 2...TUBE, DRAIN 2
-
18JW1-K832F-10-00 ...GROMMET, ROOF SUPPORT 1...GROMMET, ROOF SUPPORT 1
-
19JW1-F414G-10-00 ...SEAL...SEAL
-
20JW1-K832H-00-00 GROMMET, ROOF SUPPORT 3GROMMET, ROOF SUPPORT 3
