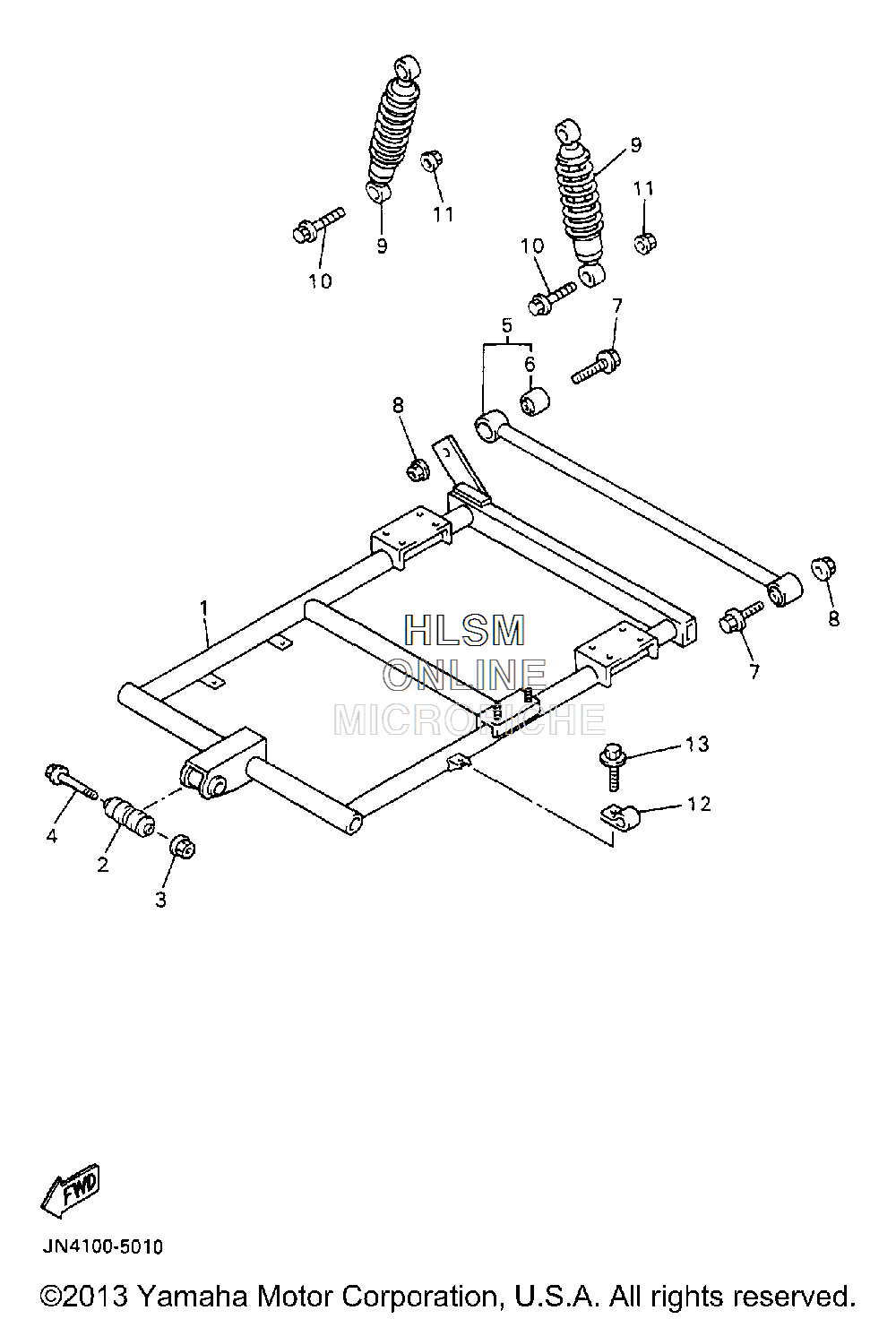

SUSPENSION - REAR ARM для Yamaha GOLF CAR ELECTRIC [G14EP] (JN4) - 1996 года выпуска
-
№АртикулНазвание
-
1JN4-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
2JN3-22123-00-00 BUSH 1BUSH 1
-
395617-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490105-12743-00 BOLT, FLANGEBOLT, FLANGE
-
5JF2-22172-00-00 ARM, REAR 2ARM, REAR 2
-
6J50-22124-00-00 ...BUSH 2...BUSH 2
-
795817-12065-00 BOLT, FLANGEBOLT, FLANGE
-
895617-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
9JN4-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1095817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1195617-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1290462-20186-00 CLAMPCLAMP
-
1395807-06016-00 BOLT, FLANGEBOLT, FLANGE
