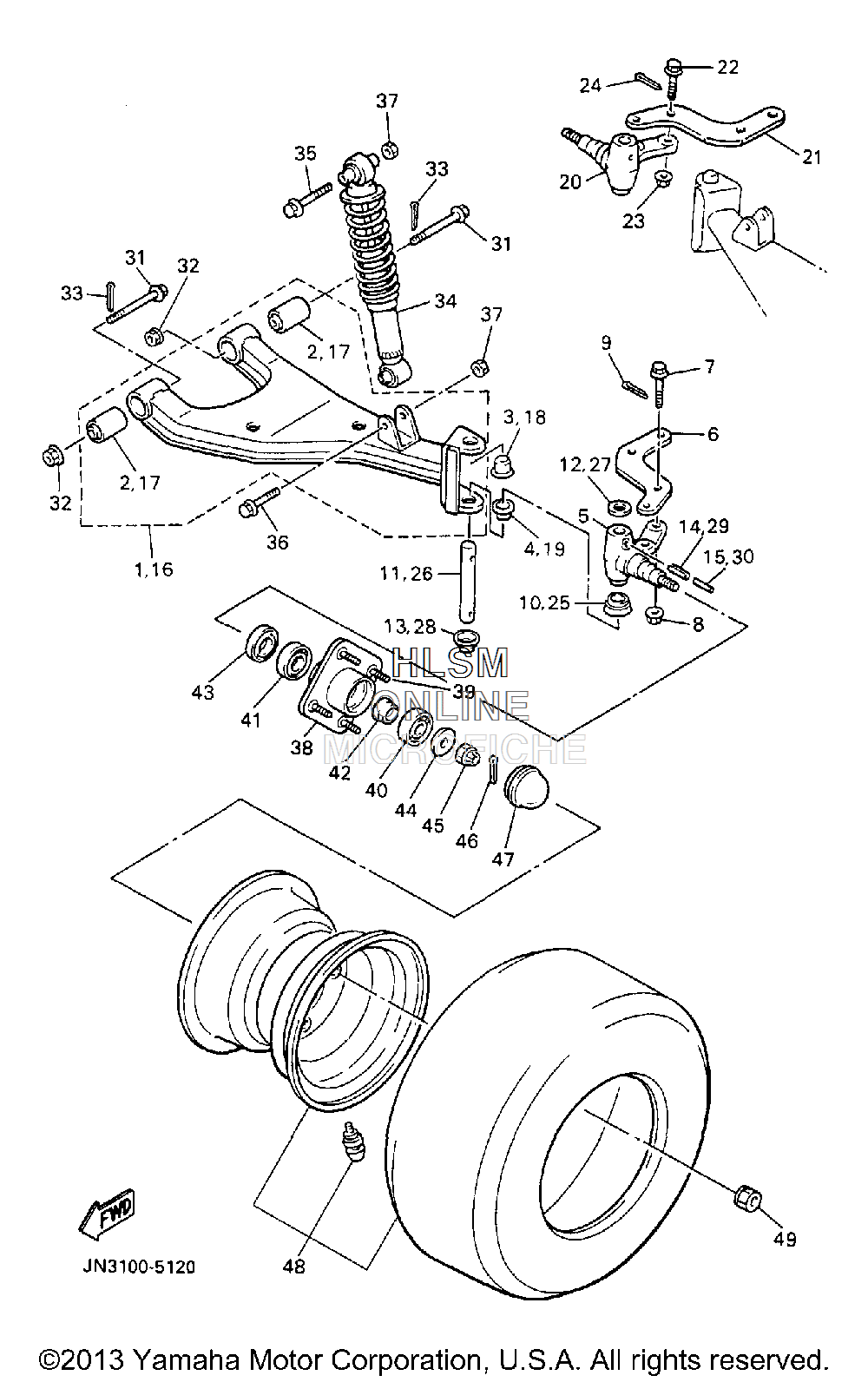

SUSPENSION - FRONT WHEEL для Yamaha GOLF CAR ELECTRIC [G14EP] (JN4) - 1996 года выпуска
-
№АртикулНазвание
-
1JN6-F3570-00-00 FRONT LOWER ARM, LEFTFRONT LOWER ARM, LEFT
-
2J38-23526-00-00 ...BUSH...BUSH
-
390338-17225-00 PLUG, STRAIGHTPLUG, STRAIGHT
-
490386-15139-00 BUSHBUSH
-
5J38-23511-01-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
6JN3-F3512-00-00 ARM, KNUCKLEARM, KNUCKLE
-
790105-10360-00 BOLT, FLANGEBOLT, FLANGE
-
895617-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
991490-25020-00 PIN. COTTERPIN. COTTER
-
10J38-23527-00-00 SEAL, DUSTSEAL, DUST
-
11J38-23516-00-00 PIN, STEERING KNUCKLEPIN, STEERING KNUCKLE
-
1290201-156J2-00 WASHER, PLATEWASHER, PLATE
-
13J38-23528-00-00 SEAL, DUSTSEAL, DUST
-
1491609-60028-00 PIN, SPRINGPIN, SPRING
-
1591609-35028-00 PIN, SPRINGPIN, SPRING
-
16JN6-F3580-00-00 FRONT LOWER ARM, RIGHTFRONT LOWER ARM, RIGHT
-
17J38-23526-00-00 ...BUSH...BUSH
-
1890338-17225-00 PLUG, STRAIGHTPLUG, STRAIGHT
-
1990386-15139-00 BUSHBUSH
-
20J38-23521-01-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
21JN3-F3512-00-00 ARM, KNUCKLEARM, KNUCKLE
-
2290105-10360-00 BOLT, FLANGEBOLT, FLANGE
-
2395617-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2491490-25020-00 PIN. COTTERPIN. COTTER
-
25J38-23527-00-00 SEAL, DUSTSEAL, DUST
-
26J38-23516-00-00 PIN, STEERING KNUCKLEPIN, STEERING KNUCKLE
-
2790201-156J2-00 WASHER, PLATEWASHER, PLATE
-
28J38-23528-00-00 SEAL, DUSTSEAL, DUST
-
2991609-60028-00 PIN, SPRINGPIN, SPRING
-
3091609-35028-00 PIN, SPRINGPIN, SPRING
-
3190105-10357-00 BOLT, FLANGEBOLT, FLANGE
-
3295617-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3391490-25020-00 PIN. COTTERPIN. COTTER
-
34JN4-F3350-00-00 CUSHION ASSEMBLY (JN4-F3350-10-00)CUSHION ASSEMBLY (JN4-F3350-10-00)
-
3595807-10065-00 BOLT, FLANGEBOLT, FLANGE
-
3695817-10050-00 BOLT, FLANGEBOLT, FLANGE
-
3795617-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
38JG5-WF511-00-00 HUBHUB
-
3990114-12800-00 ...BOLT, SERRATION...BOLT, SERRATION
-
4093306-204X0-00 BEARINGBEARING
-
4193306-005Y3-00 BEARINGBEARING
-
4290387-241M7-00 COLLARCOLLAR
-
4393102-30083-00 OIL SEALOIL SEAL
-
4490209-32271-00 WASHERWASHER
-
4595607-14100-00 NUT, UNUT, U
-
4691490-25020-00 PIN. COTTERPIN. COTTER
-
47J17-25118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
48JN6-F5100-11-00 WHEEL ASSY (18X8.5-8 4PR)WHEEL ASSY (18X8.5-8 4PR)
-
4990179-12262-00 NUTNUT
