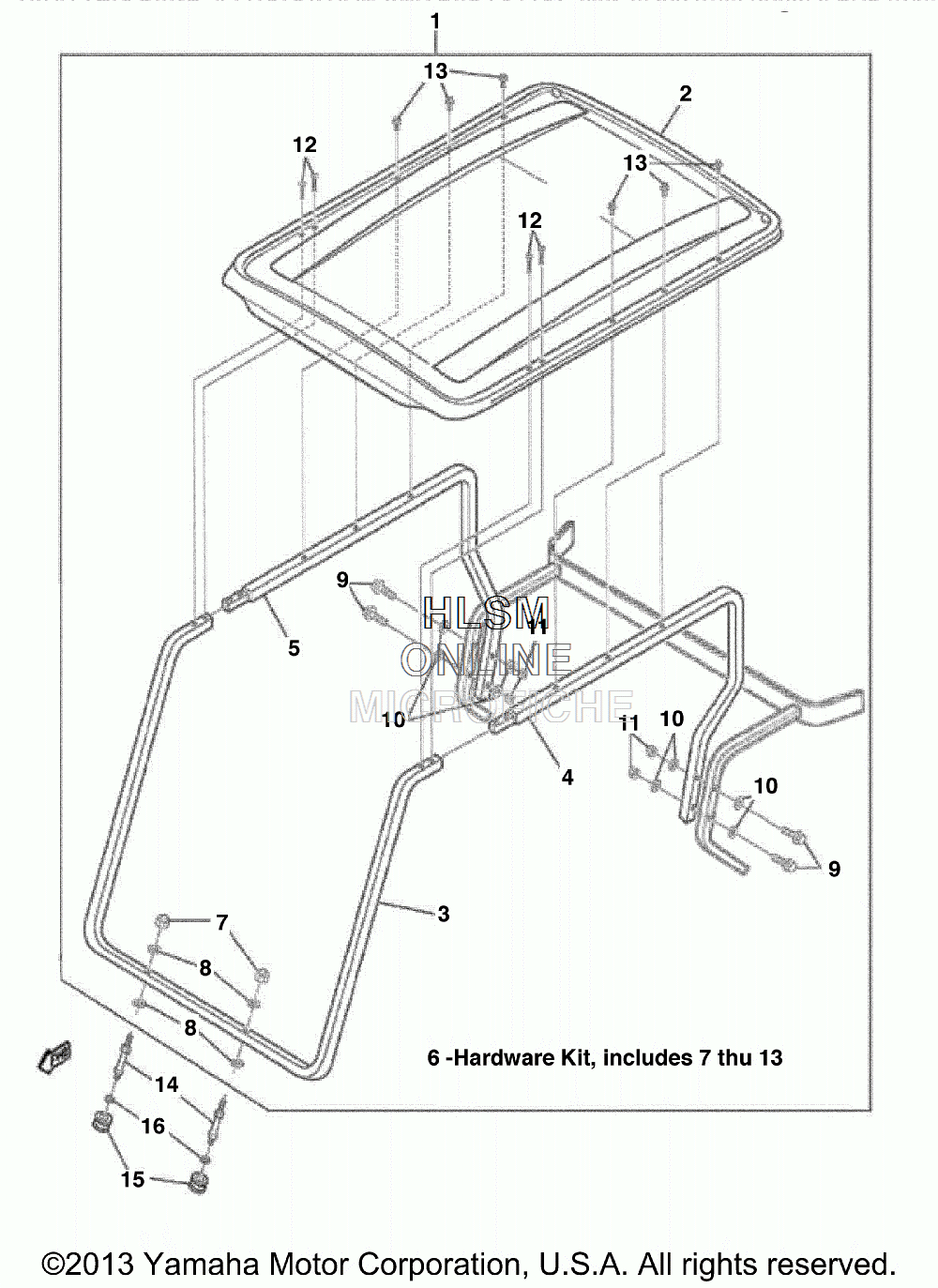

OPTIONAL SUN ROOF JN6 для Yamaha GOLF CAR ELECTRIC [G14EP] (JN4) - 1996 года выпуска
-
№АртикулНазвание
-
1JN6-K8310-12-00 SUNTOP KITSUNTOP KIT
-
2JN6-K8314-00-00 ...COVER, SUN ROOF...COVER, SUN ROOF
-
3JN6-K8312-00-00 ...SUPPORT, SUN ROOF 1 (FRONT)...SUPPORT, SUN ROOF 1 (FRONT)
-
4JN6-K8313-12-00 ...SUPPORT, SUN ROOF 2 (LH SIDE)...SUPPORT, SUN ROOF 2 (LH SIDE)
-
5JN6-K831A-12-00 ...SUPPORT, SUN ROOF 2 (RH SIDE)...SUPPORT, SUN ROOF 2 (RH SIDE)
-
6ABA-JN6K8-31-00 ...HARDWARE KIT SUNTOP...HARDWARE KIT SUNTOP
-
790176-08801-00 ......NUT, CROWN......NUT, CROWN
-
890201-098J4-00 ......WASHER, PLATE......WASHER, PLATE
-
990101-22864-00 ......BOLT (70MM LONG) (NOT AVAILABLE SEPARATELY)......BOLT (70MM LONG) (NOT AVAILABLE SEPARATELY)
-
1090201-088T2-00 ......WASHER, FENDER MOLD......WASHER, FENDER MOLD
-
1190185-12835-00 ......NUT, SELF-LOCKING (NOT AVAILABLE SEPARATELY)......NUT, SELF-LOCKING (NOT AVAILABLE SEPARATELY)
-
1290110-06800-00 ......SCREW (16MM LONG) (NOT AVAILABLE SEPARATELY)......SCREW (16MM LONG) (NOT AVAILABLE SEPARATELY)
-
1390269-08800-00 ......RIVET PLASTIC (WHITE)......RIVET PLASTIC (WHITE)
-
14JN6-K834A-02-00 HOLDER, REINFORCEMENT (OPT) (NOT INCLUDED)HOLDER, REINFORCEMENT (OPT) (NOT INCLUDED)
-
15JN3-K832F-00-00 GROMMET, ROOF SUPPORT (OPT) (NOT INCLUDED)GROMMET, ROOF SUPPORT (OPT) (NOT INCLUDED)
-
169299R-08600-00 WASHER (OPT) (NOT INCLUDED)WASHER (OPT) (NOT INCLUDED)
