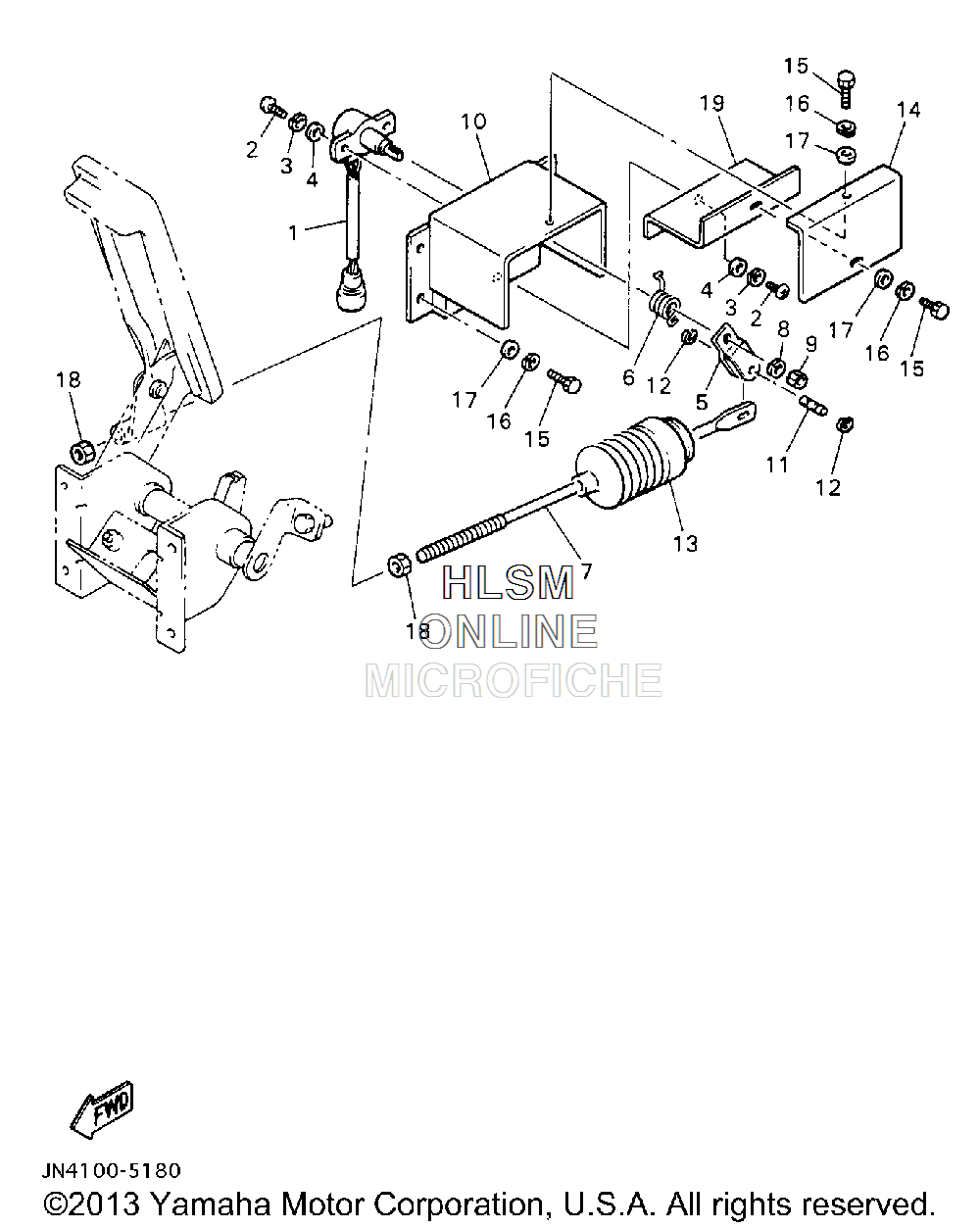

CONTROLLER 1 для Yamaha GOLF CAR ELECTRIC [G14EP] (JN4) - 1996 года выпуска
-
№АртикулНазвание
-
1JN4-85885-01-00 THROTTLE SENSORTHROTTLE SENSOR
-
298507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-05100-00 WASHER, SPRINGWASHER, SPRING
-
492907-05600-00 WASHER, PLATEWASHER, PLATE
-
5JF3-2625H-00-00 ARM, THROTTLEARM, THROTTLE
-
6JF3-27825-00-00 SPRING, RETURNSPRING, RETURN
-
7JN4-F7241-00-00 ROD, JOINTROD, JOINT
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
995317-06600-00 NUTNUT
-
10JF3-27981-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
11JF3-27813-00-00 PIN, PEDAL CRANKPIN, PEDAL CRANK
-
1299080-04600-00 CIRCLIPCIRCLIP
-
13JN4-F7486-00-00 COVER 1COVER 1
-
14JF3-27487-00-00 COVER 2COVER 2
-
1597007-05016-00 BOLTBOLT
-
1692907-05100-00 WASHER, SPRINGWASHER, SPRING
-
1792907-05600-00 WASHER, PLATEWASHER, PLATE
-
1895317-08700-00 NUTNUT
-
19JF3-27445-00-00 PLATE 1PLATE 1
