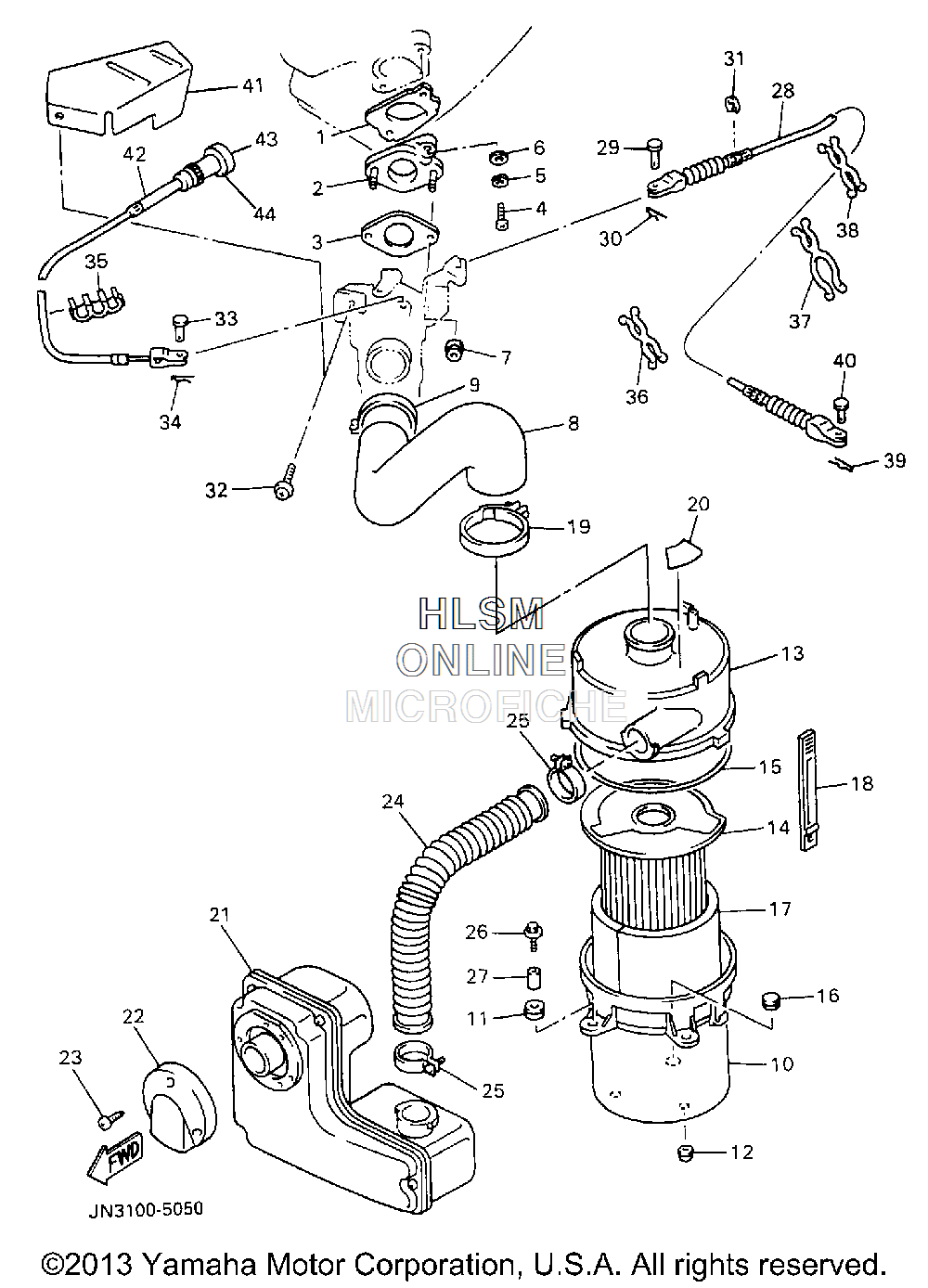

AIR CLEANER W/ INTAKE для Yamaha GOLF CAR GAS [G14AM] (JN3) - 1995 года выпуска`
-
№АртикулНазвание
-
1J38-13556-01-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
2J38-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
3J38-13557-01-00 GASKETGASKET
-
498517-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
592907-06100-00 WASHER, SPRINGWASHER, SPRING
-
692907-06600-00 WASHER, PLATEWASHER, PLATE
-
795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
8J38-14453-01-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
990460-53239-00 CLAMP, HOSECLAMP, HOSE
-
10J10-14411-01-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
1190480-13238-00 GROMMETGROMMET
-
1290480-14239-00 GROMMETGROMMET
-
13JN3-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
14JF7-14450-01-00 ELEMENT ASSEMBLY, AIR CLEANERELEMENT ASSEMBLY, AIR CLEANER
-
15JN3-14452-00-00 SEALSEAL
-
1690480-14100-00 GROMMETGROMMET
-
17J10-14417-00-00 COVER 1COVER 1
-
18J45-14436-00-00 HOOKHOOK
-
1990460-43053-00 CLAMP, HOSECLAMP, HOSE
-
20JN3-K7761-00-00 LABEL, WARNING 1LABEL, WARNING 1
-
21JN5-1446A-00-00 SURGE TANK ASSEMBLYSURGE TANK ASSEMBLY
-
22JN3-14417-00-00 COVER 1COVER 1
-
2397780-50130-00 SCREW, TAPPINGSCREW, TAPPING
-
24JN3-14437-00-00 DUCTDUCT
-
2590460-33087-00 CLAMP, HOSECLAMP, HOSE
-
2690119-06097-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790387-06026-00 COLLARCOLLAR
-
28J38-26312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
2991701-05010-00 PIN, CLEVISPIN, CLEVIS
-
3090468-10050-00 CLIPCLIP
-
3199080-07600-00 CLIPCLIP
-
3290159-05132-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
3391701-05010-00 PIN, CLEVISPIN, CLEVIS
-
3490468-10050-00 CLIPCLIP
-
3590468-07179-00 CLIPCLIP
-
3690464-10038-00 CLAMPCLAMP
-
3790464-26114-00 CLAMPCLAMP
-
3890464-14134-00 CLAMPCLAMP
-
3990468-10050-00 CLIPCLIP
-
4091701-05010-00 PIN, CLEVISPIN, CLEVIS
-
41JG5-E4283-00-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
42JF2-F6331-01-00 CABLE, STARTER 1CABLE, STARTER 1
-
431AE-26325-00-00 ...KNOB, CHOKE...KNOB, CHOKE
-
4490149-03132-00 ...SCREW, SPECIAL SHAPE...SCREW, SPECIAL SHAPE
