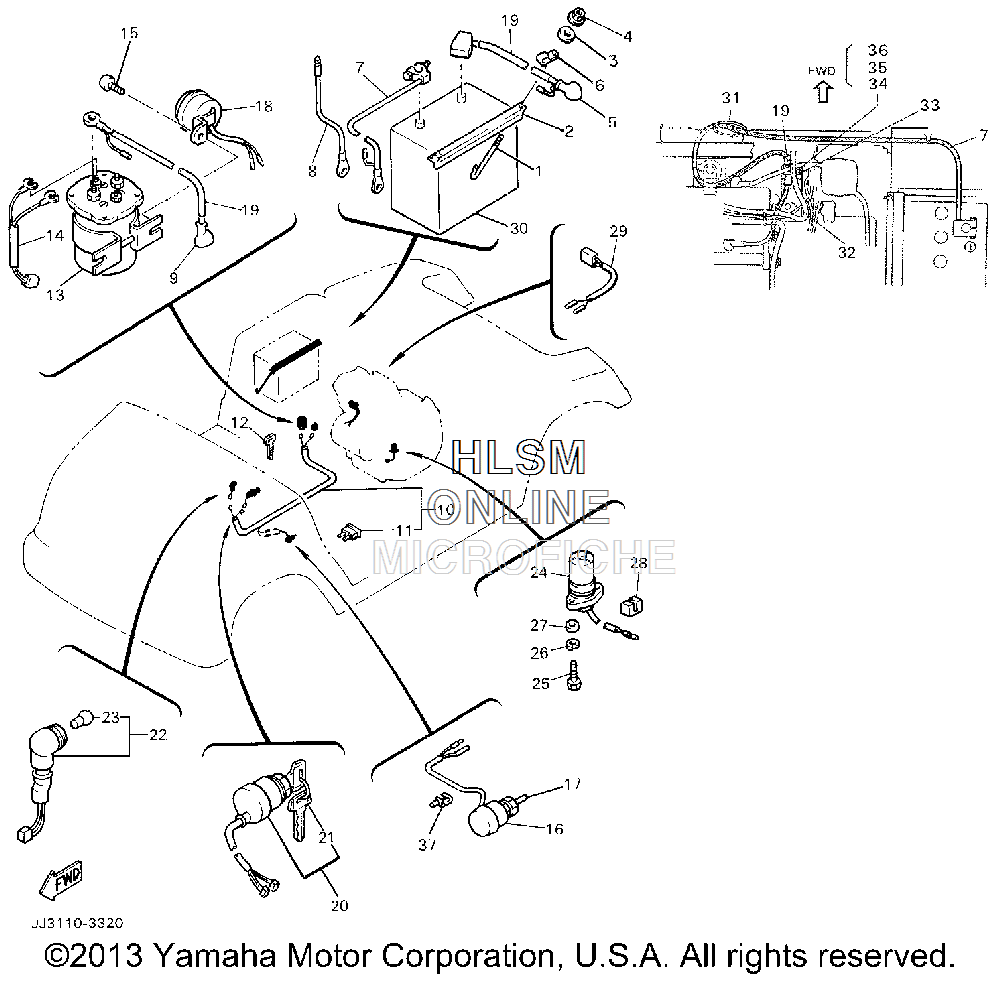

ELECTRICAL 2 для Yamaha GOLF CAR GAS [G11AK] (JJ3) - 1994 года выпуска`
-
№АртикулНазвание
-
1J17-82133-00-00 SCREW, FITTINGSCREW, FITTING
-
2J55-H2136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
392990-06200-00 WASHER, PLAINWASHER, PLAIN
-
495701-06500-00 NUT, WITH WASHERNUT, WITH WASHER
-
5JF2-H2115-11-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
690465-08028-00 CLAMPCLAMP
-
7JF2-H2116-02-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
8JG5-H232Y-00-00 WIRE, EARTH LEADWIRE, EARTH LEAD
-
9JF2-H2117-02-00 WIRE, LEADWIRE, LEAD
-
10JJ3-82590-02-00 WIRE HARNESS ASSEMBLYWIRE HARNESS ASSEMBLY
-
1142X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
1290464-23041-00 CLAMPCLAMP
-
13JF2-H1950-00-00 RELAY ASSEMBLYRELAY ASSEMBLY
-
14JF2-82105-00-00 WIRE HARNESSWIRE HARNESS
-
1590163-06005-00 SCREW, TAPPINGSCREW, TAPPING
-
16J41-82550-02-00 STOP SWITCH ASSEMBLYSTOP SWITCH ASSEMBLY
-
17JF2-82532-00-00 ...CAP, RUBBER...CAP, RUBBER
-
18J10-83383-02-00 BUZZERBUZZER
-
19JF2-82139-00-00 TUBETUBE
-
20J55-82510-00-00 MAIN SWITCH ASSEMBLYMAIN SWITCH ASSEMBLY
-
21J17-82511-20-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
-
22JF2-83530-00-00 PILOT LIGHT ASSEMBLYPILOT LIGHT ASSEMBLY
-
23123-83516-21-00 ...BULB (12V-3.4W)...BULB (12V-3.4W)
-
24JH2-85720-01-00 OIL LEVEL GAUGE ASSEMBLYOIL LEVEL GAUGE ASSEMBLY
-
2597011-06020-00 BOLTBOLT
-
2692995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2792990-06600-00 WASHER, PLATEWASHER, PLATE
-
28J38-82598-00-00 GROMMETGROMMET
-
29JF2-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
30JG5-H2110-01-00 BATTERY ASSY (GC-24, 12V) (CALIF ONLY) (OBTAIN LOCALLY)BATTERY ASSY (GC-24, 12V) (CALIF ONLY) (OBTAIN LOCALLY)
-
3190465-13169-00 CLAMPCLAMP
-
32JF2-2142G-00-00 STAY 1STAY 1
-
33JF2-2142H-00-00 STAY 2STAY 2
-
3497011-06016-00 BOLTBOLT
-
3592995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3692990-06600-00 WASHER, PLATEWASHER, PLATE
-
3790465-06028-00 CLAMPCLAMP
