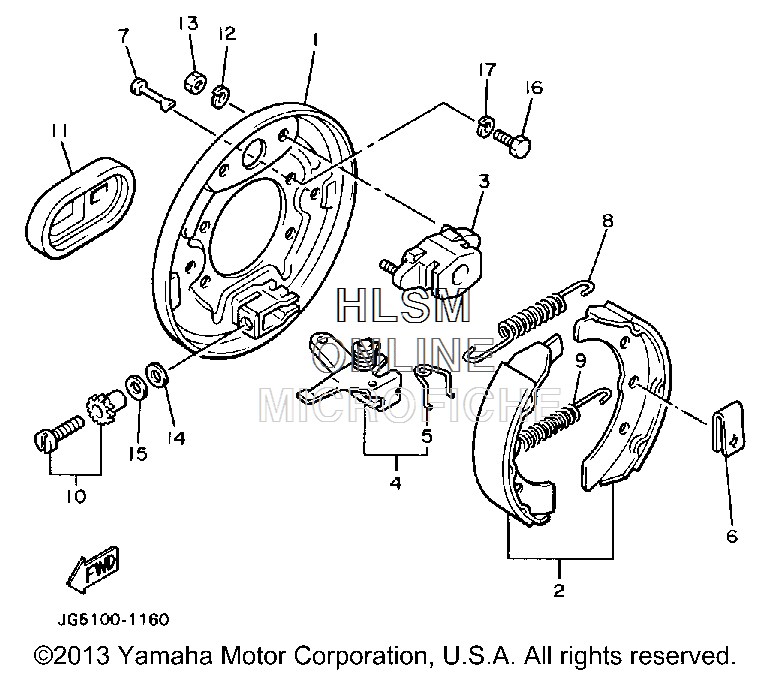

BRAKE 3 TO 100100 для Yamaha GOLF CAR ELECTRIC [G9EG] (JG6) - 1991 года выпуска`
-
№АртикулНазвание
-
1J17-27209-00-00 BACKING PLATE SUB ASSEMBLY 2 (LBACKING PLATE SUB ASSEMBLY 2 (L
-
2J55-W2536-00-00 ...BRAKE SHOE SET...BRAKE SHOE SET
-
3J17-27206-00-00 ...ANCHOR BODY COMP....ANCHOR BODY COMP.
-
4J38-27205-00-00 ...LEVER ASSY 2...LEVER ASSY 2
-
5J55-25357-00-00 ...SPRING, LEVER RETURN...SPRING, LEVER RETURN
-
6J10-27281-00-00 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
7J10-27282-00-00 PIN, SHOE HOLD DOWNPIN, SHOE HOLD DOWN
-
890506-20281-00 SPRING, TENSIONSPRING, TENSION
-
990506-26191-00 SPRING, TENSIONSPRING, TENSION
-
10J55-27260-00-00 ADJUSTER ASSYADJUSTER ASSY
-
11J10-27286-00-00 COVER, DUSTCOVER, DUST
-
1292995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1395380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
1490201-121H8-00 WASHER, PLATEWASHER, PLATE
-
1590201-121H9-00 WASHER, PLATEWASHER, PLATE
-
1697011-08016-00 BOLTBOLT
-
1792990-08100-00 WASHER, SPRINGWASHER, SPRING
