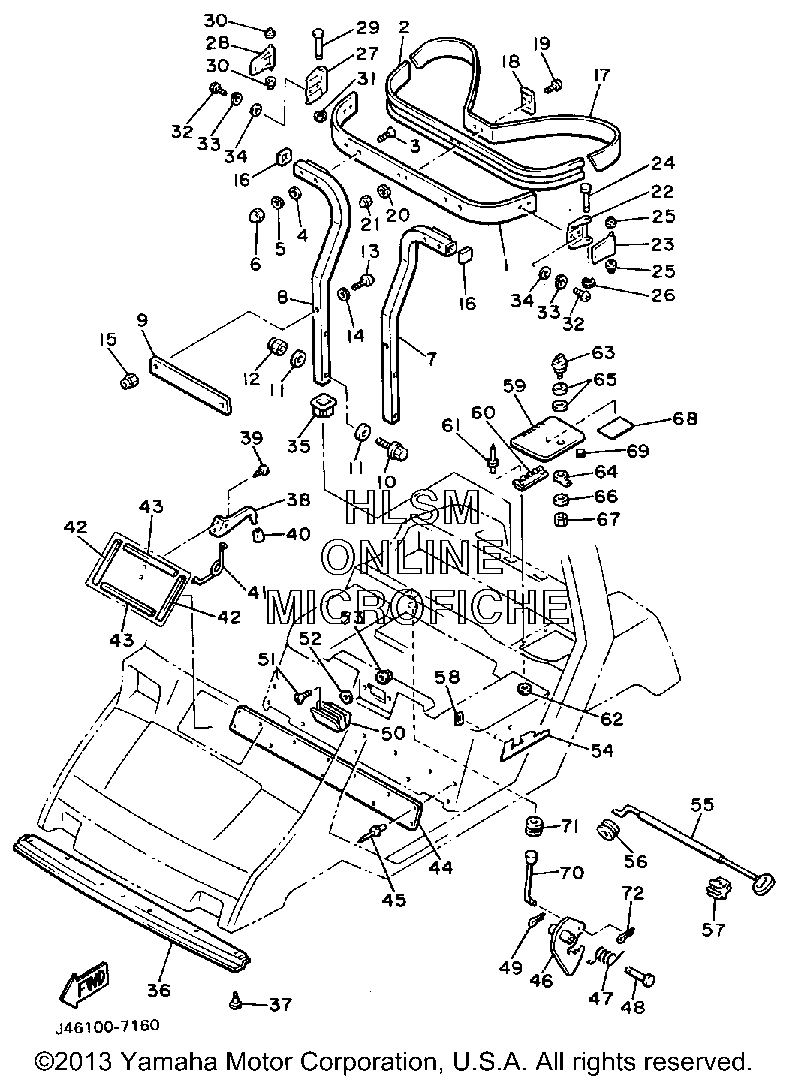

CARRIER для Yamaha SUN CLASSIC ELECTRIC [G3E] (J46) - 1987 года выпуска
-
№АртикулНазвание
-
1J42-78351-00-00 SUPPORT, BAG UPPER (J10-78351-00-9E)SUPPORT, BAG UPPER (J10-78351-00-9E)
-
2J10-78356-00-00 PAD, BAG SUPPORTPAD, BAG SUPPORT
-
398701-08045-00 SCREW, FLAT HEAD (92701-08045-00)SCREW, FLAT HEAD (92701-08045-00)
-
490202-08022-00 WASHER, PLATEWASHER, PLATE
-
592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
695380-08800-00 NUT, CROWNNUT, CROWN
-
7J42-78352-00-00 SUPPORT, BAG LOWER 1SUPPORT, BAG LOWER 1
-
8J42-78353-00-00 SUPPORT, BAG LOWER 2SUPPORT, BAG LOWER 2
-
9J42-78367-00-00 PLATE, ANCHORPLATE, ANCHOR
-
1095811-08050-00 BOLT, FLANGE (95823-08050-00)BOLT, FLANGE (95823-08050-00)
-
1190201-084K3-00 WASHER, PLATEWASHER, PLATE
-
1295601-08200-00 NUT, UNUT, U
-
1390154-08028-00 SCREW, BINDINGSCREW, BINDING
-
1490201-080A9-00 WASHER, PLATEWASHER, PLATE
-
1595601-08200-00 NUT, UNUT, U
-
16J10-78139-00-00 CAP, ENDCAP, END
-
17J10-78355-00-00 BANDBAND
-
18J10-78367-00-00 PLATE, ANCHORPLATE, ANCHOR
-
1998980-06016-00 SCREW, BINDSCREW, BIND
-
2092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2195380-06800-00 NUTNUT
-
22J17-78157-01-00 BASE, LOCKBASE, LOCK
-
23J17-78368-01-00 LEVER, LOCKLEVER, LOCK
-
24J17-78369-00-00 PIN, LEVERPIN, LEVER
-
2590386-06108-00 BUSHBUSH
-
2699080-05600-00 CIRCLIPCIRCLIP
-
27J17-78157-01-00 BASE, LOCKBASE, LOCK
-
28J17-78368-01-00 LEVER, LOCKLEVER, LOCK
-
29J17-78369-00-00 PIN, LEVERPIN, LEVER
-
3090386-06108-00 BUSHBUSH
-
3199080-05600-00 CIRCLIPCIRCLIP
-
3298580-06010-00 SCREW, PAN HEAD (92503-06010-00)SCREW, PAN HEAD (92503-06010-00)
-
3392995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3492990-06200-00 WASHER, PLAINWASHER, PLAIN
-
3590480-36427-00 GROMMETGROMMET
-
36J42-78216-00-00 COVER, BUMPER GAPCOVER, BUMPER GAP
-
3790269-06028-00 RIVETRIVET
-
38J42-7827F-01-00 LEVER, VENTILATORLEVER, VENTILATOR
-
3997780-50612-00 SCREW, TAPPINGSCREW, TAPPING
-
40J42-7827G-00-00 KNOB, VENTILATORKNOB, VENTILATOR
-
41J42-7827H-00-00 SPRING, VENTILATORSPRING, VENTILATOR
-
42J42-78245-00-00 SEAL 1SEAL 1
-
43J42-78246-00-00 SEAL, FLOOR 2SEAL, FLOOR 2
-
44J42-78119-00-00 PLATE 3PLATE 3
-
4590267-40075-00 RIVET, BLINDRIVET, BLIND
-
46J42-7814H-02-00 HOOK, BODY LOCKHOOK, BODY LOCK
-
4790508-14698-00 SPRING, TORSIONSPRING, TORSION
-
4891702-08040-00 PIN, CLEVISPIN, CLEVIS
-
4991401-25020-00 PIN, COTTERPIN, COTTER
-
50J42-78287-00-00 ASH TRAYASH TRAY
-
5198780-04025-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
5292990-04200-00 WASHER, PLAINWASHER, PLAIN
-
5395701-04300-00 NUT, FLANGENUT, FLANGE
-
54J42-78291-00-00 EMBLEM 1EMBLEM 1
-
55J42-78375-00-00 SUPPORT 1SUPPORT 1
-
5690480-16304-00 GROMMET (90480-16110-00)GROMMET (90480-16110-00)
-
57J42-78359-01-00 HOLDER 3HOLDER 3
-
5890183-03038-00 NUT, SPRINGNUT, SPRING
-
59J42-78272-00-00 COVER, FUEL INLETCOVER, FUEL INLET
-
60J17-78275-00-00 HINGE, FUEL INLETHINGE, FUEL INLET
-
6190267-40075-00 RIVET, BLINDRIVET, BLIND
-
6290201-044H9-00 WASHER, PLATEWASHER, PLATE
-
638L9-77324-00-00 KNOBKNOB
-
648K4-77328-00-00 LEVER, ARM FITTINGLEVER, ARM FITTING
-
6590206-15070-00 WASHER, WAVEWASHER, WAVE
-
6690201-05725-00 WASHER, PLATEWASHER, PLATE
-
6795706-05300-00 NUT, NYLONNUT, NYLON
-
68J51-77764-00-00 LABEL, WARNING 4LABEL, WARNING 4
-
69J42-7815H-01-00 DAMPER, LOCKDAMPER, LOCK
-
70J42-7814G-02-00 LEVER, BODY LOCKLEVER, BODY LOCK
-
7190480-12067-00 GROMMETGROMMET
-
7291490-16020-00 PIN, COTTERPIN, COTTER
