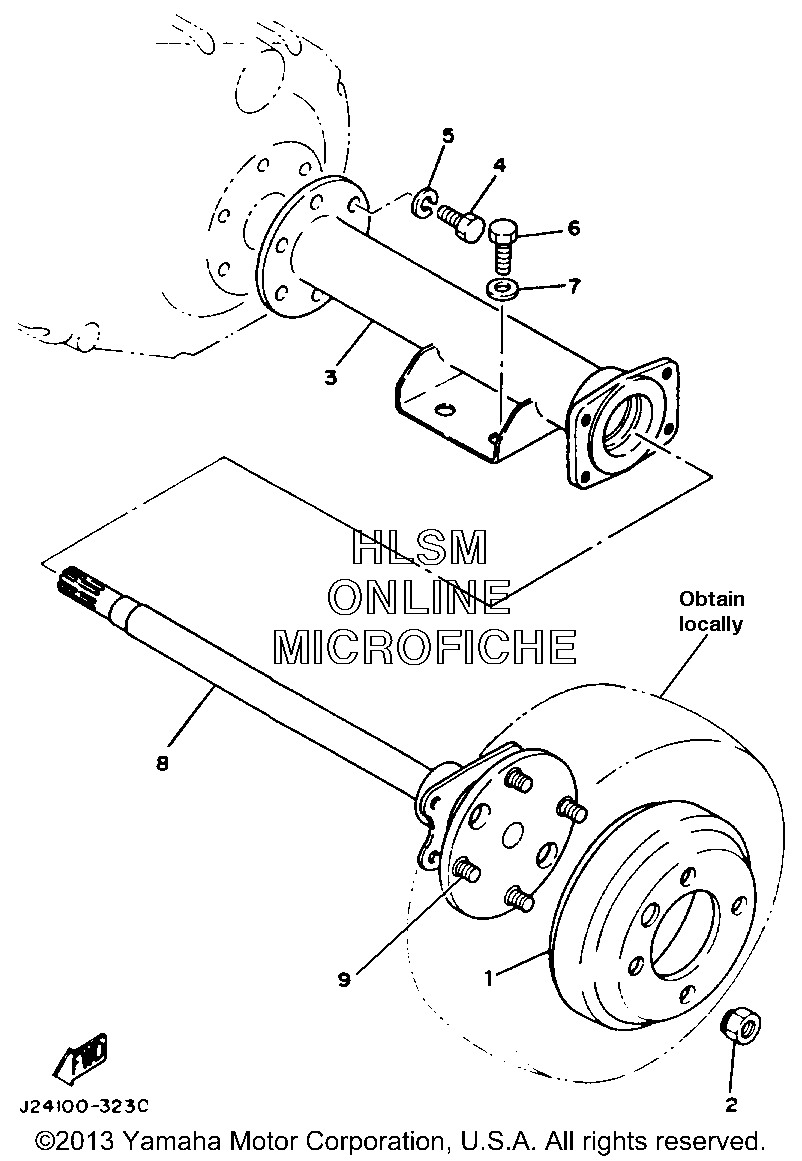

WHEEL - REAR W/ AXLE ASSY для Yamaha SUN CLASSIC GAS CAR [G3A] (J42) - 1986 года выпуска`
-
№АртикулНазвание
-
1J55-G6521-00-00 DRUMDRUM
-
290179-12262-00 NUTNUT
-
3J10-46540-00-00 REAR AXLE HOUSING 1 COMPREAR AXLE HOUSING 1 COMP
-
497013-08025-00 BOLTBOLT
-
592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
697011-10020-00 BOLTBOLT
-
792990-10100-00 WASHER, SPRINGWASHER, SPRING
-
8J17-46510-01-00 REAR AXLE SHAFT 1REAR AXLE SHAFT 1
-
990114-12004-00 ...BOLT, SERRATION...BOLT, SERRATION
